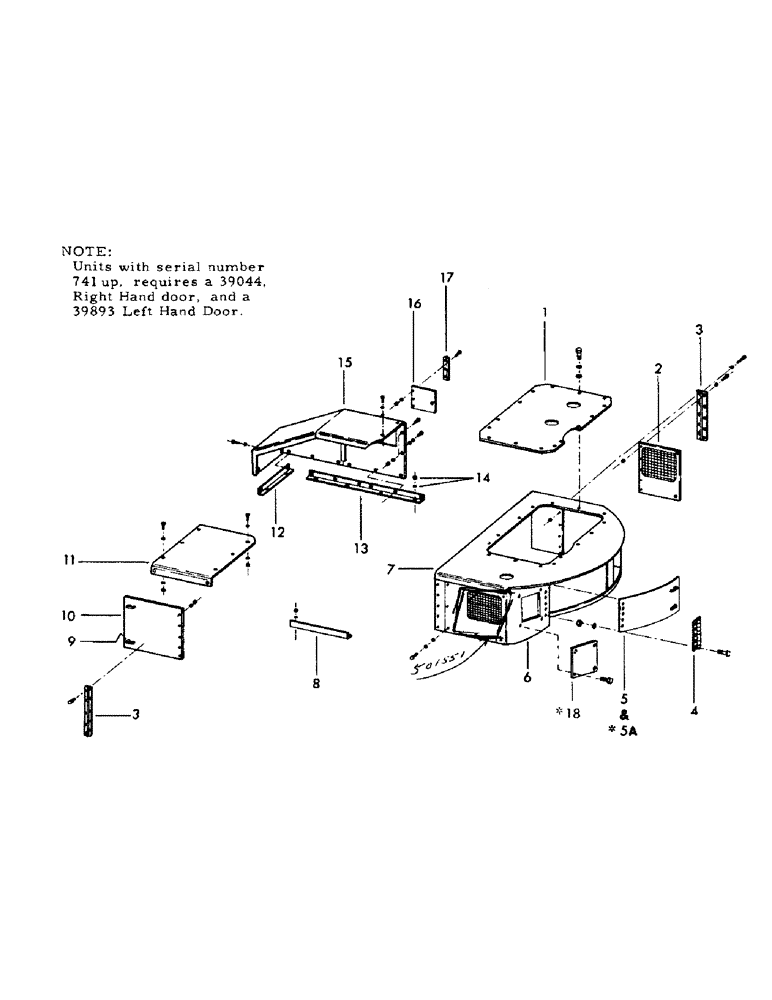

Запчасти Case 40YC (D08) - TURNTABLE SHROUD (05) - UPPERSTRUCTURE CHASSIS

1

39040

CONNECTING ROD

COVER, top (Used on units with serial number 1 thru 740)

1шт.

Change in listing.

1шт.

2401

LAMP

CPSW - 3/8" x 1" NC grade 5

15шт.

4397

LOCKWASHER - 3/8"

15шт.

7385

WASHER, flat - 3/8"

15шт.

501550

COVER, top - (Used on units with serial number 741-up)

1шт.

Added listing.

1шт.

2400

LAMP

CPSW - 3/8" x 3/4" NC grade. 5

14шт.

Added listing.

1шт.

4397

LOCKWASHER - 3/8"

14шт.

Added listing.

1шт.

7385

WASHER, flat - 3/8"

14шт.

Added listing.

1шт.

2

39068

DOOR, rear side (Used on units with serial number 1 thru 602)

1шт.

39306

SPARE PART

DOOR, rear side (Used on units with serial number 603-up)

1шт.

3

208803

HINGE

2шт.

2401

LAMP

CPSW - 3/8" x 1" NC grade 5 (Mounts, Serial Range: hinge-shroud)

10шт.

2400

LAMP

CPSW - 3/8" x 3/4" NC grade 5 (Mounts, Serial Range: hinge-door)

10шт.

4397

LOCKWASHER - 3/8"

20шт.

4222

NUT - 3/8" NC

20шт.

4

208854

HINGE, rear door (Left hand)

1шт.

2401

LAMP

CPSW - 3/8" x 1" NC grade 5 (Mounts, Serial Range: hinge-shroud)

5шт.

2400

LAMP

CPSW - 3/8" x 1" NC grade 5 (Mounts hinge to rear door)

5шт.

4397

LOCKWASHER - 3/8"

10шт.

4222

NUT - 3/8" NC

10шт.

208804

HINGE, rear door (Right hand)

1шт.

2401

LAMP

CPSW - 3/8" x 1" NC grade 5 (Mounts, Serial Range: hinge-shroud)

5шт.

2400

LAMP

CPSW - 3/8" x 1" NC grade 5 (Mounts hinge to rear door)

5шт.

4397

LOCKWASHER - 3/8"

10шт.

4222

NUT - 3/8" NC

10шт.

5

39044

DOOR, rear - right and left (Used on units with serial number 1 thru 740)

2шт.

5a

39893

DOOR, rear - left hand only - (Used on units with serial number 741-up)

1шт.

6

39038

GUARD, radiator (Used on units with serial number 1 thru 740)

1шт.

2401

LAMP

CPSW - 3/8" x 1" NC grade 5

9шт.

4397

LOCKWASHER - 3/8"

9шт.

7385

WASHER, flat - 3/8"

9шт.

501551

CYLINDER HEAD

GUARD, radiator (Used on units with serial number 741-up)

1шт.

2400

LAMP

CPSW - 3/8" x 3/4" NC grade 5

8шт.

4397

LOCKWASHER - 3/8"

8шт.

7385

WASHER, flat - 3/8"

8шт.

7

951397

SHROUD, rear (Used on units with serial number 1 thru 740)

1шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

4шт.

83704

WASHER, flat - 3/8"

4шт.

Change in listing.

1шт.

951841

SHROUD, rear (Used on units with serial number 741-up)

1шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

4шт.

7385

WASHER, flat - 3/8"

4шт.

8

208802

BRACKET

4шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

2шт.

83704

WASHER, flat - 3/8" NC

2шт.

Change in listing.

1шт.

9

76864

HANDLE, door

9шт.

7348

SPARE PART

LOCKWASHER - 5/8" (Internal tooth)

9шт.

10

39043

CONNECTING LINK

DOOR, shroud side (Used on units with serial number 1 thru 740)

1шт.

501553

INSERT

DOOR, shroud side (Used on units with serial number 741-up)

1шт.

11

39042

PLATE, top shroud

1шт.

2401

LAMP

CPSW - 3/8" x 1" NC grade 5

8шт.

7385

WASHER, flat - 3/8"

8шт.

4397

LOCKWASHER - 3/8"

8шт.

4222

NUT - 3/8" NC

5шт.

12

208801

BRACKET

1шт.

13

39041

BRACKET

1шт.

14

17167

LOCK NUT

NUT, self locking - 3/8" NC

6шт.

83704

WASHER, flat - 3/8"

6шт.

Change in listing.

1шт.

15

56653

BOLT,Hex, M8 x 35mm, Cl 8.8

SHROUD, front

1шт.

2401

LAMP

CPSW - 3/8" x 1" NC grade 5

13шт.

7385

WASHER, flat - 3/8"

11шт.

4397

LOCKWASHER - 3/8"

13шт.

16

208805

DOOR, side shroud

1шт.

17

208806

HINGE, side shroud door

1шт.

2401

LAMP

CPSW - 3/8" x 1" NC grade 5 (Mounts, Serial Range: hinge-shroud)

3шт.

2400

LAMP

CPSW - 3/8" x 3/4" NC grade 5 (Mounts, Serial Range: hinge-shroud)

3шт.

4397

LOCKWASHER - 3/8"

6шт.

4222

NUT - 3/8" NC

6шт.

18

79518

COVER, access - for hydraulic oil filter - (Used on units with serial number 741-up)

1шт.

40799M1

SCREW, self tapping - 1/4"

4шт.
