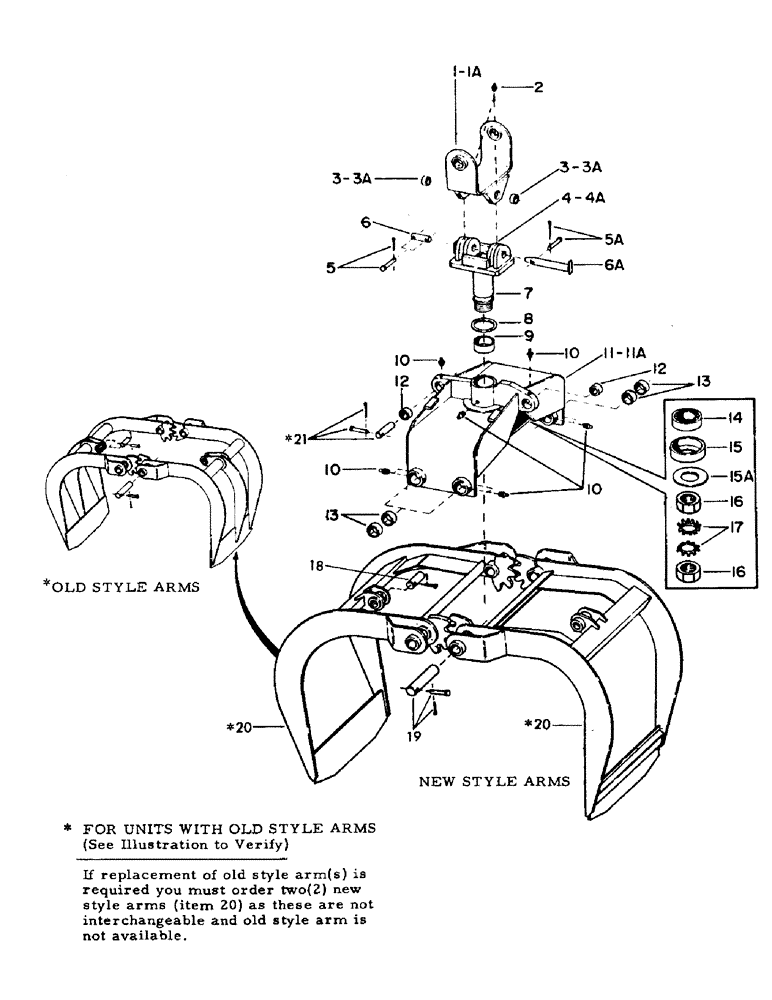

Запчасти Case 40YC (F17C) - CLAM FOR: (3/4 CORD 16 WOOD) (17) - CLAMSHELLS

59340

CLAM, pulpwood - complete (Consists of Refs. 1 thru 21) - less hydraulics - (Used on clams with serial number 113-up)

1шт.

Change in listing.

1шт.

1

37828

LINE

YOKE, boom adaption - (Includes Refs. 2 and 3)

1шт.

1a

38673

YOKE, boom adaption - (Includes Refs. 2 and 3A)

1шт.

2

12032

SENSOR

FITTING, grease - 1/8" NPT (30 degrees)

2шт.

3

64900

GASKET

BUSHING - 1-1/2" (Used with 37828 yoke)

2шт.

3a

202136

BUSHING - 2" (Used with 38673 yoke)

2шт.

4

37828

LINE

FRAME, actuator yoke - Used with 37828 yoke (Ref. 1) and Ref. 6

1шт.

4a

38672M1

FRAME, actuator yoke - Used with 38673 (Ref. 1A) and (Ref. 6A)

1шт.

5

10778

PIN, clevis - 3/8" x 5.891" grip length (Used with Ref. 6)

4шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long (Used with Ref. 6)

4шт.

5a

61971

PIN, clevis - 1/2" x 2.766" grip length (Used with Ref. 6A)

1шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long (Used with Ref. 6A)

1шт.

6

67956

NUT

PIN, yoke hinge - 1-1/2" diameter

2шт.

6a

205653M1

PIN, yoke hinge - 2" diameter

1шт.

7

207305M1

ADAPTER, splined (Weld on) - fits 4 or 4A

1шт.

8

80232

WASHER, wear

1шт.

9

23021

HALF SHAFT

BUSHING

1шт.

10

NLS

NO LONGER SERVICED

FITTING, grease - 1/8" NPT (Straight)

11шт.

11

55671M1

FRAME, clam - (Includes Refs. 9, 12 and 13) (Used on clams with serial number 1 thru 112)

1шт.

11a

56582

SPARE PART

FRAME, clam - (Includes Refs. 9, 12 and 13) (Used with clams with serial number 113-up)

1шт.

12

23796

BUSHING, frame cylinder base arm

2шт.

13

20045

BUSHING, arm hinge

8шт.

14

74816

BEARING, thrustball

1шт.

15

NLS

NO LONGER SERVICED

GUARD, bearing dirt seal - (Used on clams with serial number 1 thru 112)

1шт.

15a

78011M1

SPACER - (Used on clams with serial number 113-up)

1шт.

16

74817

NUT, lock

2шт.

17

74818

LOCKWASHER, external tooth

2шт.

18

71639

PIN, cylinder rod end

2шт.

10783

PIN, clevis - 3/8" x 2.766" grip length

2шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

2шт.

19

40791

GUARD

PIN, arm hinge

4шт.

61971

PIN, clevis - 1/2" x 2.766" grip length

4шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

4шт.

20

59339

ARMS

2шт.

Change in listing.

1шт.

21

46134

PIN, cylinder base

2шт.

61971

PIN, clevis - 1/2" x 2.766" grip length

2шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

2шт.
