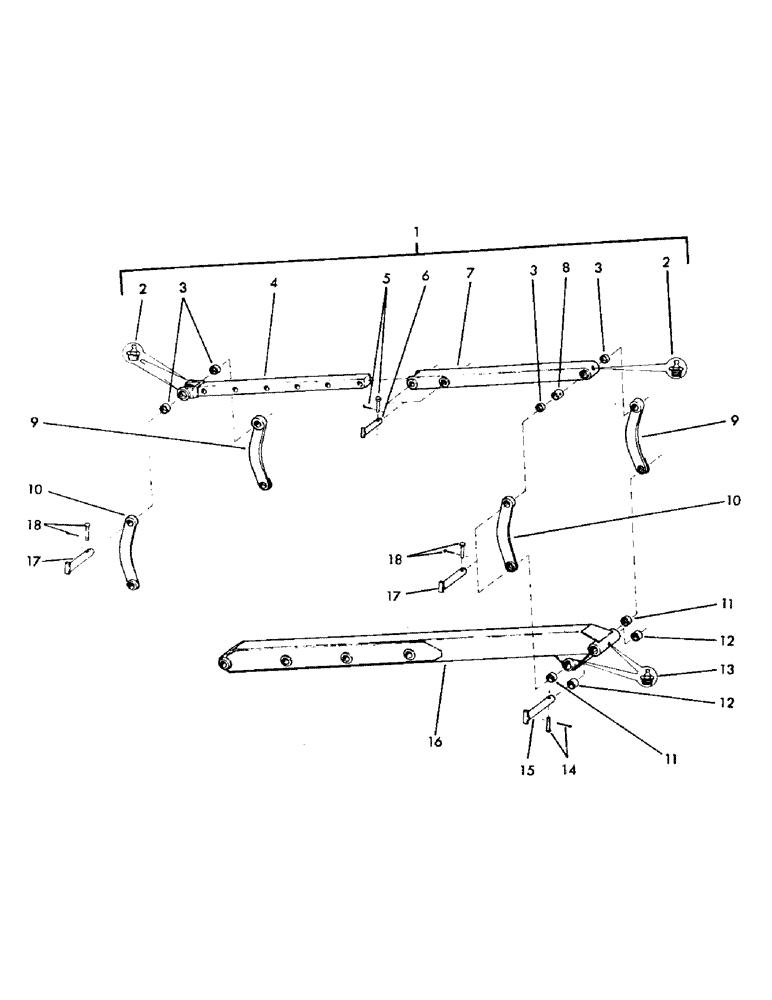

Запчасти Case 40YC (D16) - "Y" TOOL BOOM EXTENSION, (WITH PINS AND LINKS) (09) - BOOMS

1

54812

LINK, adjustable - complete (Consists of Refs. 2 thru 8)

1шт.

2

12031

FITTING, grease - 1/8" NPT (Straight)

3шт.

3

202134

HYDRAULIC CYLINDER

BUSHING

4шт.

4

36654M1

LINK, adjustable inner

1шт.

5

10785

PIN, clevis - 3/8" x 3.266" grip length

2шт.

4641

PIN

cotter - 3/32" x 1" long

2шт.

6

206139M1

PIN

2шт.

7

36653

LINK, adjustable outer

1шт.

8

74929

SPACER, bushing

1шт.

9

S38355M1

LINK

LEVERS - left hand

2шт.

Change in listing.

1шт.

10

38354

LEVERS - right hand

2шт.

11

202134

HYDRAULIC CYLINDER

BUSHING

2шт.

12

202137

BUSHING

2шт.

13

NLS

NO LONGER SERVICED

FITTING, grease - 1/8" NPT (Straight)

3шт.

14

61974

PIN, clevis - 1/2" x 4.266" grip length

1шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

1шт.

15

213911

FRAME

PIN

1шт.

16

54503M3

EXTENSION - tool boom (Includes Refs. 11 thru 13)

1шт.

17

205653M1

PIN

3шт.

18

61973

PIN, clevis - 1/2" x 3.766" grip length

3шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

3шт.
