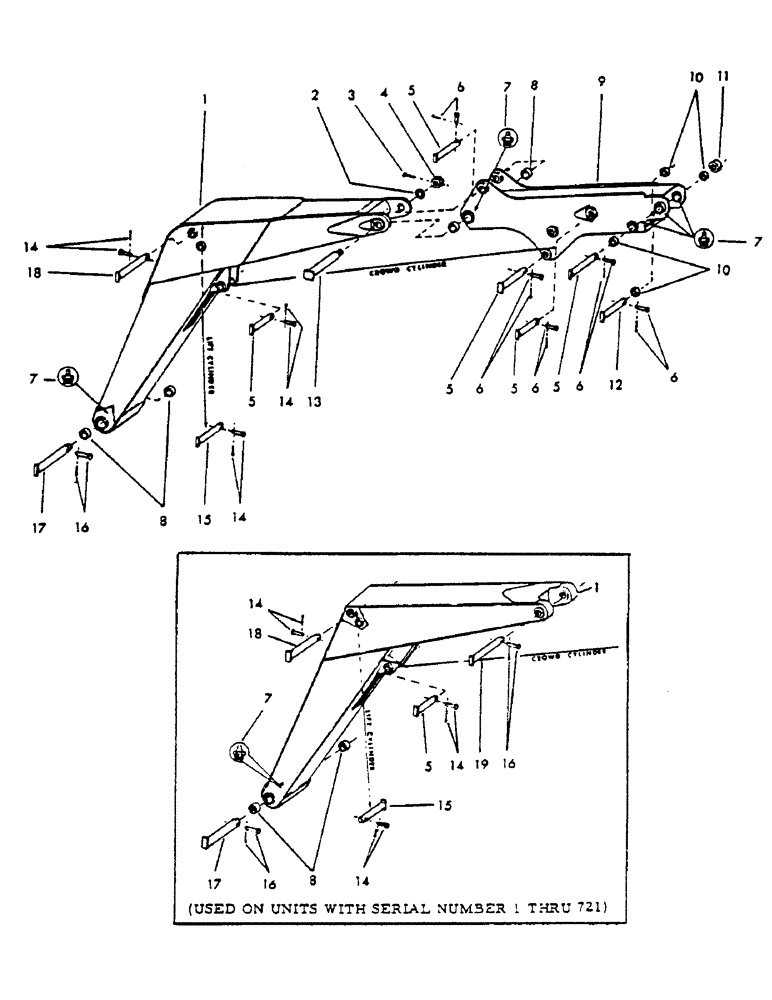

Запчасти Case 40YC (D15) - "Y" BOOM AND "Y" TOOL BOOMS, (WITH PINS AND LINKS) (09) - BOOMS

1

951760M1

BOOM, main - (Includes 1 of Ref. 7, and 2 of Ref. 8) - used on units with serial number 722-up

1шт.

1a

951015M4

BOOM, main - (Includes 1 of Ref. 7, and 2 of Ref. 8) - used on units with serial number 1 thru 721

1шт.

2

7436

WASHER, flat - 2-5/8" ID - (Used on units with serial number 722-up)

1шт.

3

4678

HYDRAULIC HOSE

PIN, cotter - 1/4" x 3-1/2" long - (Used on units with serial number 722-up)

1шт.

4

9396

NUT, slotted - 2" NC - (Used on units with serial number 722-up)

1шт.

5

205653M1

PIN

5шт.

6

61973

PIN, clevis - 1/2" x 3.766" grip length

5шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

5шт.

7

NLS

NO LONGER SERVICED

FITTING, grease - 1/8" NPT x (Straight)

5шт.

8

210602

BUSHING

4шт.

9

54498M2

BOOM, tool - (Includes 4 of Ref. 7, and 2 of Ref. 8, and includes Ref. 10)

1шт.

10

202134

HYDRAULIC CYLINDER

BUSHING

4шт.

11

68746

COLLAR

1шт.

12

204746M1

PIN

1шт.

13

209677

PIN - (Used on units with serial number 722-up)

1шт.

14

61972

PIN, clevis - 1/2" x 3.266" grip length

3шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

3шт.

15

213911

FRAME

PIN - (Hoist, Serial Range: cylinder-turntable)

1шт.

Change in listing.

1шт.

16

61975

PIN, clevis - 5/8" x 3.766" grip length - (Quantity of 2 used on units with serial number 1 thru 721, and quantity of 1 used on units with serial number 722-up)

1шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

1шт.

17

201023M1

PIN

1шт.

18

208517

PIN

1шт.

19

201022M1

PIN - (Used on units with serial number 1 thru 721)

1шт.
