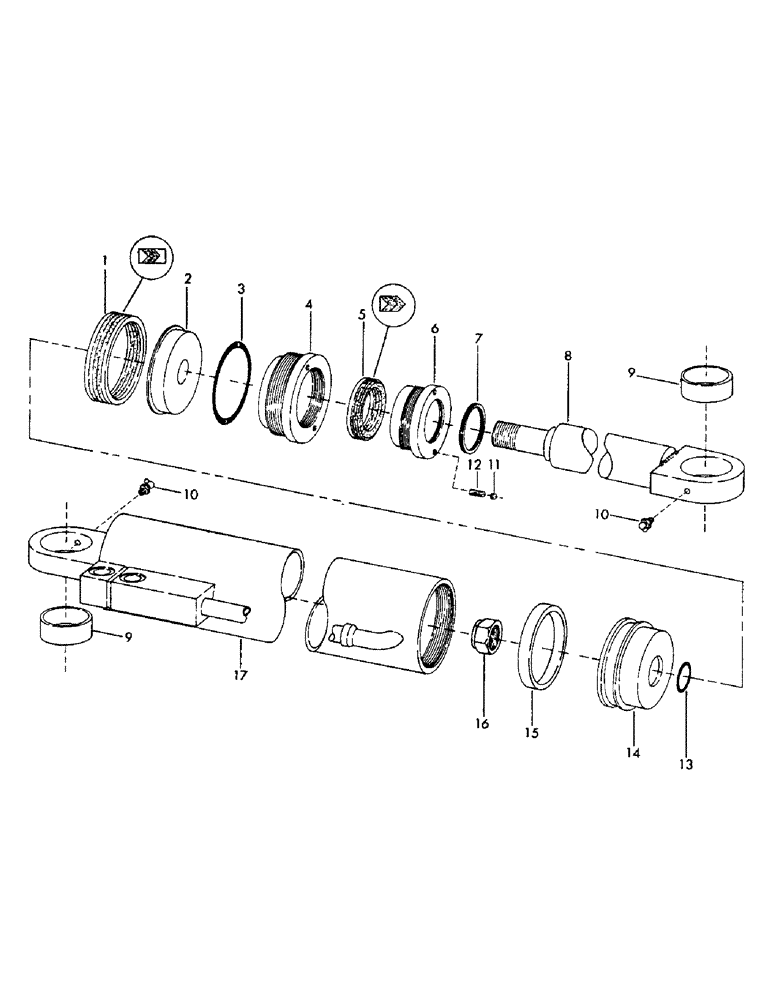

Запчасти Case 40YC (J13) - TREE SHEAR CYLINDER FOR:, 18" FELLER/BUNCHER, (6-1/4" ID X (07) - HYDRAULIC SYSTEM

S502258M2

CYLINDER, tree shear - (Consists of items 1 thru 17)

1шт.

Added listing.

1шт.

1

23717M1

V-RING CUP ASSEMBLY

1шт.

2

29929

PISTON

1шт.

3

6028

SPARE PART

"O" RING - 5.750" ID x 6.250" OD

1шт.

4

28257M2

HEAD, cylinder

1шт.

5

25184M1

V-RING CUP ASSEMBLY

1шт.

6

28247

FLANGE, packing

1шт.

7

43987

SEAL, wiper

1шт.

8

211542M1

ROD, piston

1шт.

9

202195

SPARE PART

BUSHING

2шт.

10

49270

SPACER

FITTING, grease - 1/8" NPT - 90 degrees

2шт.

11

12277

SEALING RING COLLAR

SCREW, set - #10 x 1/4" NF - oval head

2шт.

12

13889

TOOL

SCREW, set - #10 x 5/8" NF - cup head

2шт.

13

5920

SPRING

"O" RING - 1.725" ID x 2.125" OD

1шт.

14

28239

PISTON

1шт.

15

23716

RING, wear

1шт.

16

80914

NUT, self locking

1шт.

17

211538

TUBE ASSEMBLY

1шт.
