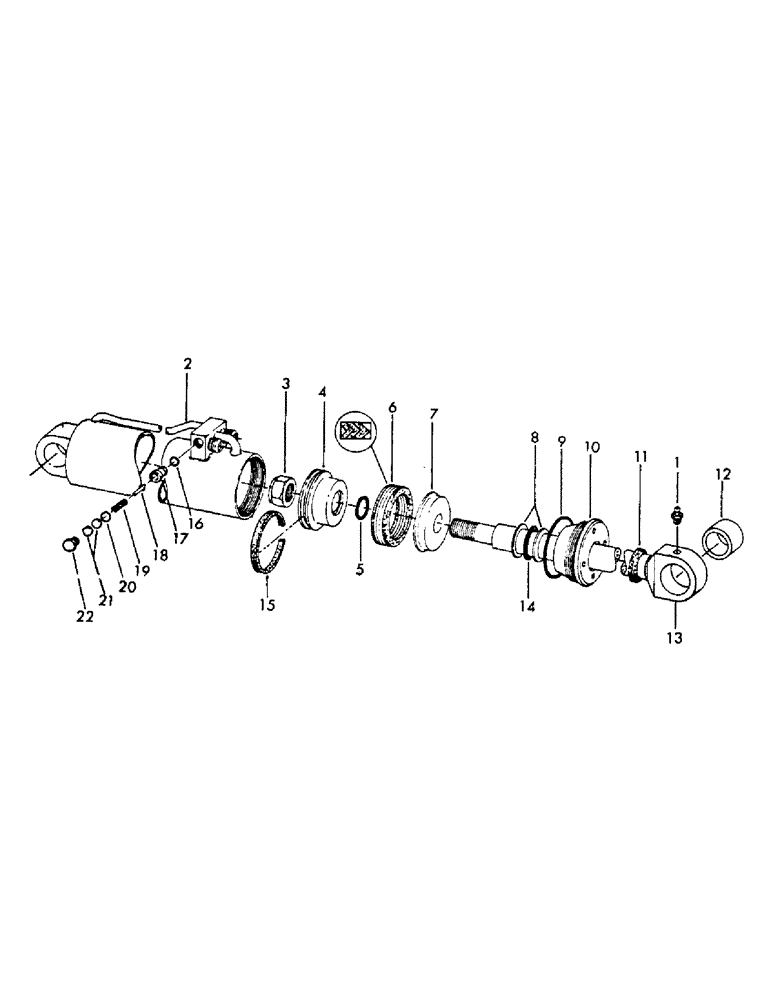

Запчасти Case 40YC (J12) - GRABBER ARM CYLINDER, (3-1/2" ID X 9-3/4" STROKE) (07) - HYDRAULIC SYSTEM

33621

GEAR

CYLINDER, grabber arm - (Includes items 1 thru 22)

2шт.

1

12031

FITTING, grease - 1/8" NPT (Straight)

1шт.

2

26551M5

TUBE ASSEMBLY

1шт.

3

9022

SEALING RING

NUT, self locking - 1-1/8" NF

1шт.

4

28097

PISTON

1шт.

5

5809

O-RING

"O" ring - 1.109" ID x 1.375" OD

1шт.

6

26550

"V" RING CUP ASSEMBLY

1шт.

7

49783

KNIFE

PISTON

1шт.

8

10923

WASHER

leather back up

2шт.

9

6327

O-RING

"O" RING - 3.359" ID x 3.625" OD

1шт.

10

46840

HEAD, cylinder

1шт.

11

46869

RING, wiper

1шт.

12

64396

BUSHING

1шт.

13

202796M1

ROD, piston

1шт.

14

6165

HALF-COUPLING

"O" RING - 1.475" ID x 1.875" OD

1шт.

15

48419

GUARD

RING, wear

1шт.

16

5603

BUSHING

"O" RING - .239" ID x .375" OD

1шт.

17

46913

SUPPORT

SEAT

1шт.

18

46914

BELT

PLUNGER

1шт.

19

73-416

BOLT (MACHINE),Flat, 1/4"

SPRING

1шт.

20

6058

O-RING

"O" RING - .414" ID x .558" OD

1шт.

21

46910

SHIM

1шт.

22

46911

X

CAP, relief valve

1шт.
