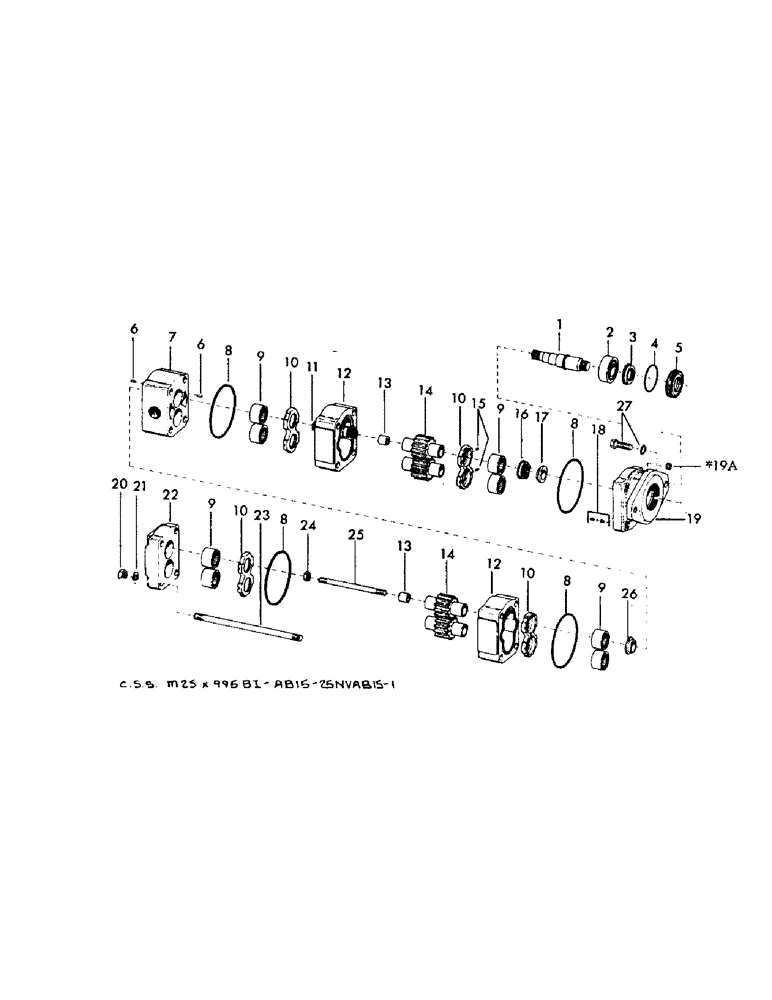

Запчасти Case 40YC (H35) - TRACK DRIVE MOTOR - HYDRAULIC TANDEM, (USED ON UNITS WITH (07) - HYDRAULIC SYSTEM

39359

O-RING

MOTOR, track drive - complete, Consists of Refs. 1 thru 19 & 20 thru 26

2шт.

Change in listing.

1шт.

1

64277

SHAFT

1шт.

Part of track drive motor P/N 39359

1шт.

2

63513

BEARING, tapered

1шт.

Part of track drive motor P/N 39359

1шт.

3

70416

BRACKET

SEAL, high pressure

1шт.

Part of track drive motor P/N 39359

1шт.

4

6592

SHAFT

"O" RING - 2.234" ID x 2.500" O.D.

1шт.

Part of track drive motor P/N 39359

1шт.

5

70415

RING

- retainer

1шт.

Part of track drive motor P/N 39359

1шт.

6

63529

PIN, roll

2шт.

Part of track drive motor P/N 39359

1шт.

7

72899

CARRIER, bearing

1шт.

Part of track drive motor P/N 39359

1шт.

8

6333

HYDRAULIC CYLINDER

"O" RING - 4.109" ID x 4.375" O.D.

4шт.

Part of track drive motor P/N 39359

1шт.

9

63517

BRACKET

BEARING, roller

8шт.

Part of track drive motor P/N 39359

1шт.

10

63522

PLATE, thrust

4шт.

Part of track drive motor P/N 39359

1шт.

11

63530

BATTERY

SHAFT, connecting

1шт.

Part of track drive motor P/N 39359

1шт.

12

61751

HOUSING, gear

2шт.

Change in listing.

1шт.

Part of track drive motor P/N 39359

1шт.

13

63532

SPACER

2шт.

Part of track drive motor P/N 39359

1шт.

14

63526

GEAR SET - 1-1/2"

2шт.

Change in listing.

1шт.

Part of track drive motor P/N 39359

1шт.

15

17682

SUPPORT

SEAL, pocket, Bulk - 2 strips makes enough seals for tandem motor

2шт.

Change in listing.

1шт.

Part of track drive motor P/N 39359

1шт.

16

63518

RIVET

SPRING

1шт.

Part of track drive motor P/N 39359

1шт.

17

NLS

NO LONGER SERVICED

BUSHING, shaft

1шт.

Part of track drive motor P/N 39359

1шт.

18

61749

ASSEMBLY, check

2шт.

Part of track drive motor P/N 39359

1шт.

19

77722

COVER, shaft end

1шт.

Part of track drive motor P/N 39359

1шт.

19a

7879

GASKET

PLUG, socket pipe - 1/4" NPT, Used in neck of Ref. 19

1шт.

Added listing.

1шт.

20

4206

TOGGLE

NUT - 9/16" NF

4шт.

Part of track drive motor P/N 39359

1шт.

21

495-81179

WASHER,21/32" x 1 1/4" x .179"

4шт.

Change in listing.

1шт.

Part of track drive motor P/N 39359

1шт.

22

63520

COVER, port end

1шт.

Part of track drive motor P/N 39359

1шт.

23

63534

STUD, connecting - external

4шт.

Part of track drive motor P/N 39359

1шт.

24

63533

NUT, lock

1шт.

Part of track drive motor P/N 39359

1шт.

25

63531

LOCTITE

STUD, connecting - internal

1шт.

Part of track drive motor P/N 39359

1шт.

26

63528

BUSHING, shaft

2шт.

Part of track drive motor P/N 39359

1шт.

27

2467

CPSW - 1/2" x 1-1/2" NC, Motor mounting hardware

2шт.

4399

WASHER

LOCKWASHER - 1/2"

2шт.
