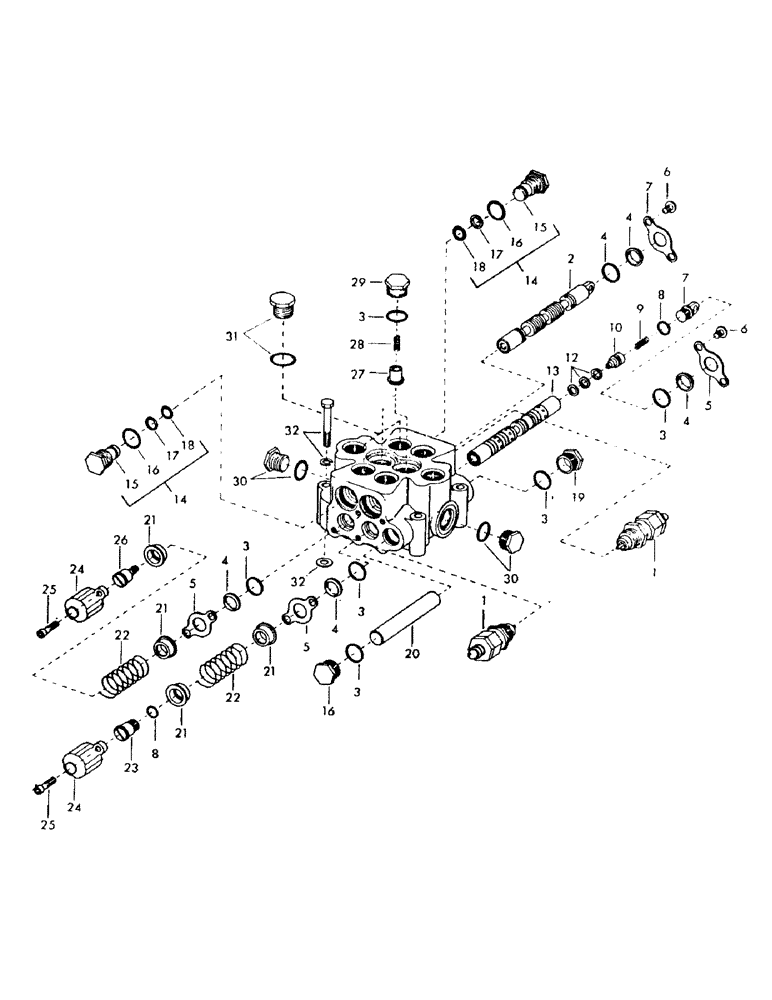

Запчасти Case 40YC (H25I) - CONTROL VALVES - 2 SPOOL, * (USED ON UNITS WITH SERIAL (07) - HYDRAULIC SYSTEM

502188

INSERT

VALVE, control - 2 spool - (Heel boom valve only)

1шт.

1

CARTRIDGE, main relief valve - 3000 PSI - (For breakdown, see page 25K)

2шт.

2

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

3

5807

O-RING

"O" RING - .984" ID x 1.250" OD

8шт.

4

62092

SEAL, wiper

4шт.

5

13829

LOCK PIN,M8 x 50, Slotted

PLATE - seal

4шт.

6

14499

SCREW, machine - 3/8" x 1/2" NC

4шт.

7

62289

END, plunger

1шт.

8

6061

O-RING

"O" RING - .644" ID x .818" OD

2шт.

9

62189

SPRING

1шт.

10

62291

POPPET

1шт.

12

7886

HOSE

RING, back up

3шт.

13

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

14

81690

PLUG, port overload - (Consists of items 15 thru 18)

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG

2шт.

16

6069

O-RING

"O" RING - 1.171" ID x 1.403" OD

2шт.

17

62373

RING, back up

2шт.

18

5706

ELECTRICAL WIRE

"O" RING - .549" ID x .750" OD

2шт.

19

NLS

NO LONGER SERVICED

PLUG

2шт.

20

62276

PIPE

PLUG, spacer

1шт.

21

62288

SEAT, spring

4шт.

22

62269

PIPE

SPRING, plunger

2шт.

23

62290

CPSW - special

1шт.

24

62278

CAP, plunger

2шт.

25

3518

CPSW, socket head - 3/8" x 1" NC gr. 8

4шт.

26

62292

CPSW - special

1шт.

27

13716

POPPET

2шт.

28

13715

SPRING

2шт.

29

13714

PLUG

2шт.

30

62190

PIN

PLUG - (Includes "O" ring)

2шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" OD

2шт.

31

8985

PAL VIDEO CASSETTE

PLUG - (1" tube) - 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring)

2шт.

32

2476

SHEAVE

CPSW - 1/2" x 3-3/4" NC gr. 5

3шт.

7395

WASHER, flat - 1/2"

3шт.

4399

WASHER

LOCKWASHER - 1/2"

3шт.

4224

NUT - 1/2" NC

3шт.
