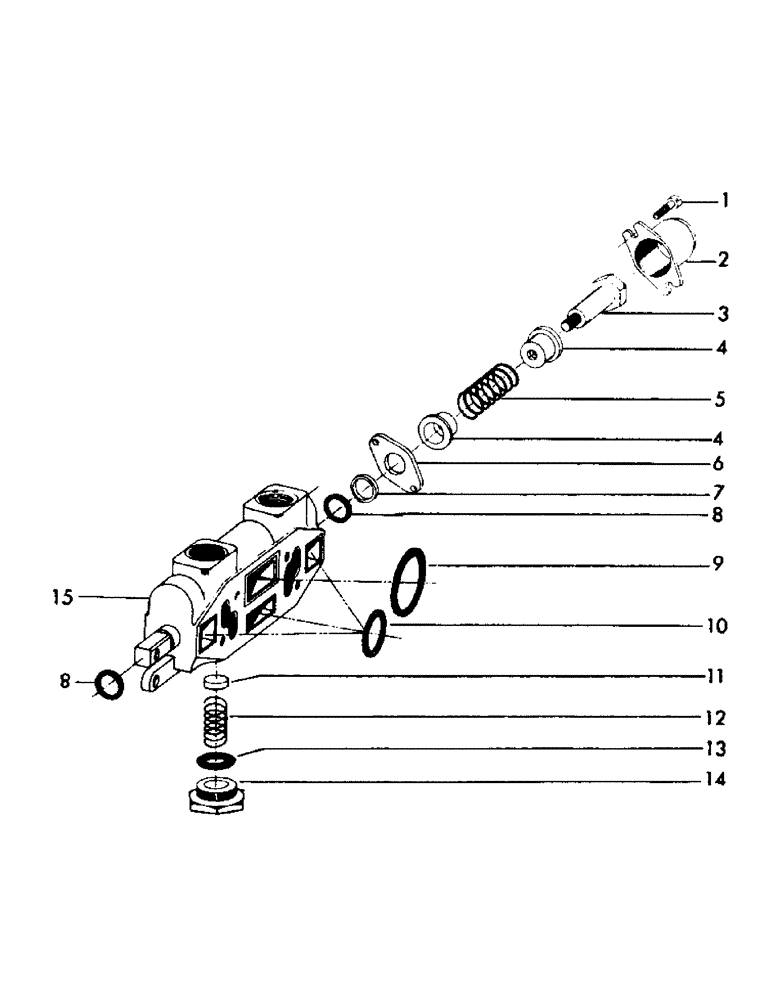

Запчасти Case 40YC (H22) - WORKING SECTION PART NUMBER 205789, * (USED ON UNITS WITH (07) - HYDRAULIC SYSTEM

205789

GASKET

VALVE, working section - complete (Consists of items 1 thru 8, and 11 thru 15)

1шт.

1

14729

HOSE,Fil Hd, 5/16" - 18 x 3/4"

SCREW, fillister head - 5/16" x 3/4" NC

2шт.

2

74277

CAP, valve

1шт.

3

74282

BOLT, hex head stripper

1шт.

4

74280

SPRING, guide

2шт.

5

74281

SPRING

1шт.

6

74279

X

PLATE, retaining

1шт.

7

69284

RING, back up

1шт.

8

5805

"O" RING - 1.09" ID x 1.375" OD

2шт.

9

5726

"O" RING - 1.799" ID x 2" OD

1шт.

10

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING - 1.549" ID x 1.750" OD

3шт.

11

13604

CHECK, poppet

1шт.

12

74278

SPRING

1шт.

13

5809

O-RING

"O" RING - 1.109" ID x 1.375" OD

1шт.

14

13603

CAP, check valve

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING, valve

1шт.
