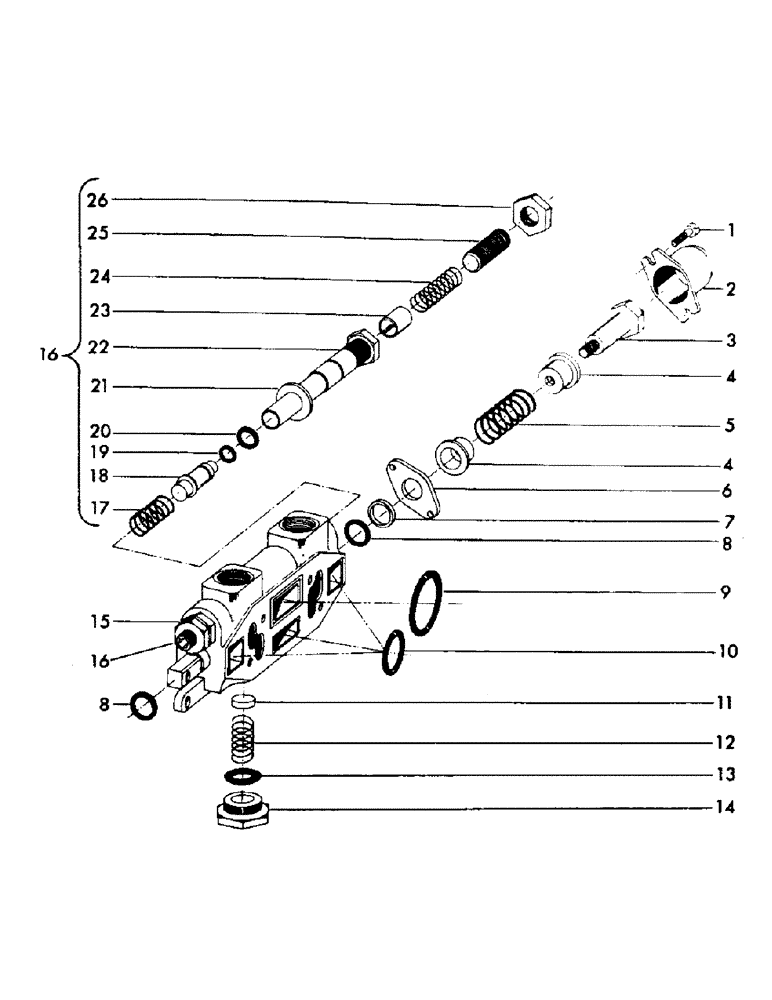

Запчасти Case 40YC (H21) - WORKING SECTION PART NUMBER 209116M1, (USED ON UNITS WITH (07) - HYDRAULIC SYSTEM

209116M1

VALVE, working section - complete (Consists of items 1 thru 8, and 11 thru 26)

1шт.

Change in listing.

1шт.

1

14729

HOSE,Fil Hd, 5/16" - 18 x 3/4"

SCREW, fillister head - 5/16" x 3/4" NC

2шт.

Part of working section valve P/N 209116M1

1шт.

2

74277

CAP, valve

1шт.

Part of working section valve P/N 209116M1

1шт.

3

74282

CPSW - hex head stripper

1шт.

Part of working section valve P/N 209116M1

1шт.

4

74280

GUIDE, spring

2шт.

Part of working section valve P/N 209116M1

1шт.

5

74281

SPRING

1шт.

Part of working section valve P/N 209116M1

1шт.

6

74279

X

PLATE, retaining

1шт.

Part of working section valve P/N 209116M1

1шт.

7

69284

RING, back up

1шт.

Part of working section valve P/N 209116M1

1шт.

8

6576

CYLINDER END CAP

"O" RING - .859" ID x 1.125" OD

2шт.

Part of working section valve P/N 209116M1

1шт.

9

5726

"O" RING - 1.799" ID x 2" OD

1шт.

10

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING - 1.549" ID x 1.750" OD

3шт.

11

13604

POPPET, check

1шт.

Part of working section valve P/N 209116M1

1шт.

12

74278

SPRING

1шт.

Part of working section valve P/N 209116M1

1шт.

13

5809

O-RING

"O" RING - 1.109" ID x 1.375" OD

1шт.

Part of working section valve P/N 209116M1

1шт.

14

13603

CAP, check valve

1шт.

Part of working section valve P/N 209116M1

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

Part of working section valve P/N 209116M1

1шт.

16

209050

GASKET

CARTRIDGE ASSEMBLY, port relief (Set at 3000 P.S.I.)

2шт.

Part of working section valve P/N 209116M1

1шт.

17

17691

SPRING

2шт.

Part of working section valve P/N 209116M1

1шт.

18

17690

POPPET

2шт.

Part of working section valve P/N 209116M1

1шт.

19

63537

"O" RING

2шт.

Part of working section valve P/N 209116M1

1шт.

20

63539

BATTERY

"O" RING

2шт.

Part of working section valve P/N 209116M1

1шт.

21

17692

LARGE PLATE

GASKET, lead and copper

2шт.

Part of working section valve P/N 209116M1

1шт.

22

17686

CARTRIDGE, valve

2шт.

Part of working section valve P/N 209116M1

1шт.

23

17687

BRACKET

SEAT, floating

2шт.

Part of working section valve P/N 209116M1

1шт.

24

63540

SPRING

2шт.

Part of working section valve P/N 209116M1

1шт.

25

17688

SCREW

2шт.

Part of working section valve P/N 209116M1

1шт.

26

17689

BRACKET

NUT, lock

2шт.

Part of working section valve P/N 209116M1

1шт.
