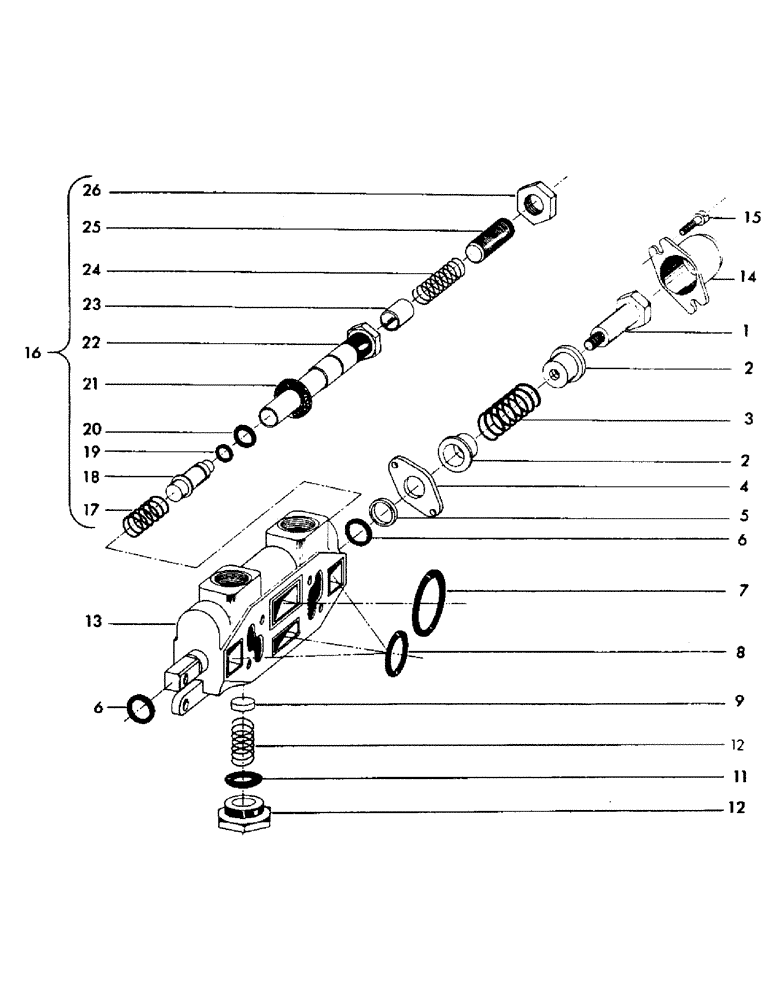

Запчасти Case 40YC (H17) - WORKING SECTION PART NUMBER 209115M1, (USED ON UNITS WITH (07) - HYDRAULIC SYSTEM

209115M1

VALVE, working section - complete, Consists of items 1 thru 8, and 11 thru 27

1шт.

Change in listing.

1шт.

1

74282

BOLT, hex head stripper

1шт.

Part of working sedction valve P/N 209115M1

1шт.

2

74280

GUIDE, spring

2шт.

Part of working sedction valve P/N 209115M1

1шт.

3

74281

SPRING

1шт.

Part of working sedction valve P/N 209115M1

1шт.

4

74279

X

PLATE, retaining

1шт.

Part of working sedction valve P/N 209115M1

1шт.

5

69284

RING, back up

1шт.

Part of working sedction valve P/N 209115M1

1шт.

6

5805

"O" RING - 1.09" ID x 1.375" O.D.

2шт.

Part of working sedction valve P/N 209115M1

1шт.

7

5726

"O" RING - 1.799" ID x 2" O.D.

1шт.

Part of working sedction valve P/N 209115M1

1шт.

8

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING - 1.549" ID x 1.750" O.D.

3шт.

Part of working sedction valve P/N 209115M1

1шт.

9

13604

POPPET, check

1шт.

10

74278

SPRING

1шт.

11

5809

O-RING

"O" RING - 1.109" ID x 1.375" O.D.

1шт.

Part of working sedction valve P/N 209115M1

1шт.

12

13603

CAP, check valve

1шт.

Part of working sedction valve P/N 209115M1

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING, valve

1шт.

Part of working sedction valve P/N 209115M1

1шт.

14

74277

CAP, valve

1шт.

Part of working sedction valve P/N 209115M1

1шт.

15

14729

HOSE,Fil Hd, 5/16" - 18 x 3/4"

SCREW, fillister head

2шт.

Part of working sedction valve P/N 209115M1

1шт.

16

209050

GASKET

CARTRIDGE ASSEMBLY, port relief, Set at 3000 P.S.I.

1шт.

Part of working sedction valve P/N 209115M1

1шт.

17

17691

SPRING, check valve

1шт.

Part of working sedction valve P/N 209115M1

1шт.

18

17690

POPPET

1шт.

Part of working sedction valve P/N 209115M1

1шт.

19

63537

"O" RING

1шт.

Part of working sedction valve P/N 209115M1

1шт.

20

63539

BATTERY

"O" RING

1шт.

Part of working sedction valve P/N 209115M1

1шт.

21

17692

LARGE PLATE

GASKET

1шт.

Part of working sedction valve P/N 209115M1

1шт.

22

17686

CARTRIDGE, valve

1шт.

Part of working sedction valve P/N 209115M1

1шт.

23

17687

BRACKET

SEAT, floating

1шт.

Part of working sedction valve P/N 209115M1

1шт.

24

63540

SPRING

1шт.

Part of working sedction valve P/N 209115M1

1шт.

25

17688

SCREW, set

1шт.

Part of working sedction valve P/N 209115M1

1шт.

26

17689

BRACKET

NUT, lock

1шт.

Part of working sedction valve P/N 209115M1

1шт.
