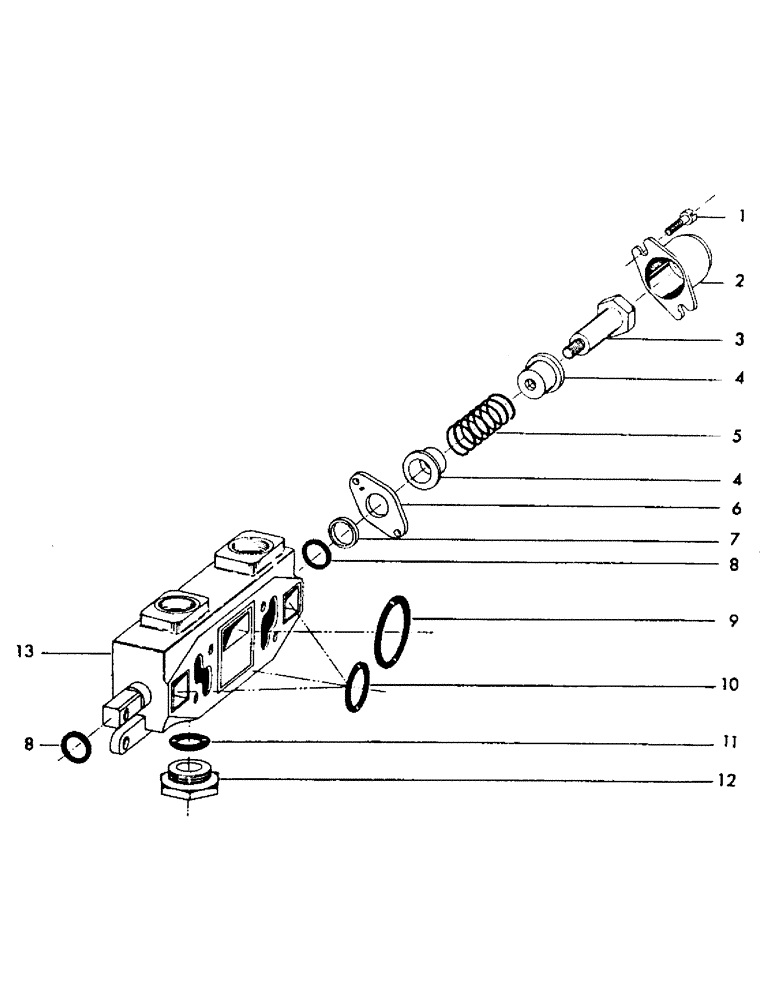

Запчасти Case 40YC (H16) - WORKING SECTION PART NUMBER 208688M1, (USED ON UNITS WITH (07) - HYDRAULIC SYSTEM

208688M1

VALVE, working section - complete, Consists of Refs. 1 thru 8, and 11 thru 13

1шт.

Change in listing.

1шт.

1

14729

HOSE,Fil Hd, 5/16" - 18 x 3/4"

SCREW

2шт.

Part of working section valve P/N 208688M1

1шт.

2

74277

CAP, valve

1шт.

Part of working section valve P/N 208688M1

1шт.

3

74282

BOLT

1шт.

Part of working section valve P/N 208688M1

1шт.

4

74280

GUIDE, spring

2шт.

Part of working section valve P/N 208688M1

1шт.

5

74281

SPRING

1шт.

Part of working section valve P/N 208688M1

1шт.

6

74279

X

PLATE, retaining

1шт.

Part of working section valve P/N 208688M1

1шт.

7

69284

RING, retaining

1шт.

Part of working section valve P/N 208688M1

1шт.

8

5805

"O" RING - 1.09" ID x 1.375" O.D.

2шт.

Part of working section valve P/N 208688M1

1шт.

9

79535

"O" RING, Special

1шт.

10

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING - 1.549" ID x 1.750" O.D.

3шт.

11

5809

O-RING

"O" RING - 1.109" ID x 1.375" O.D.

1шт.

Part of working section valve P/N 208688M1

1шт.

12

13603

CAP, check valve

1шт.

Part of working section valve P/N 208688M1

1шт.

13

NSS

NOT SOLD SEPARAT

VALVE, body

1шт.

Part of working section valve P/N 208688M1

1шт.
