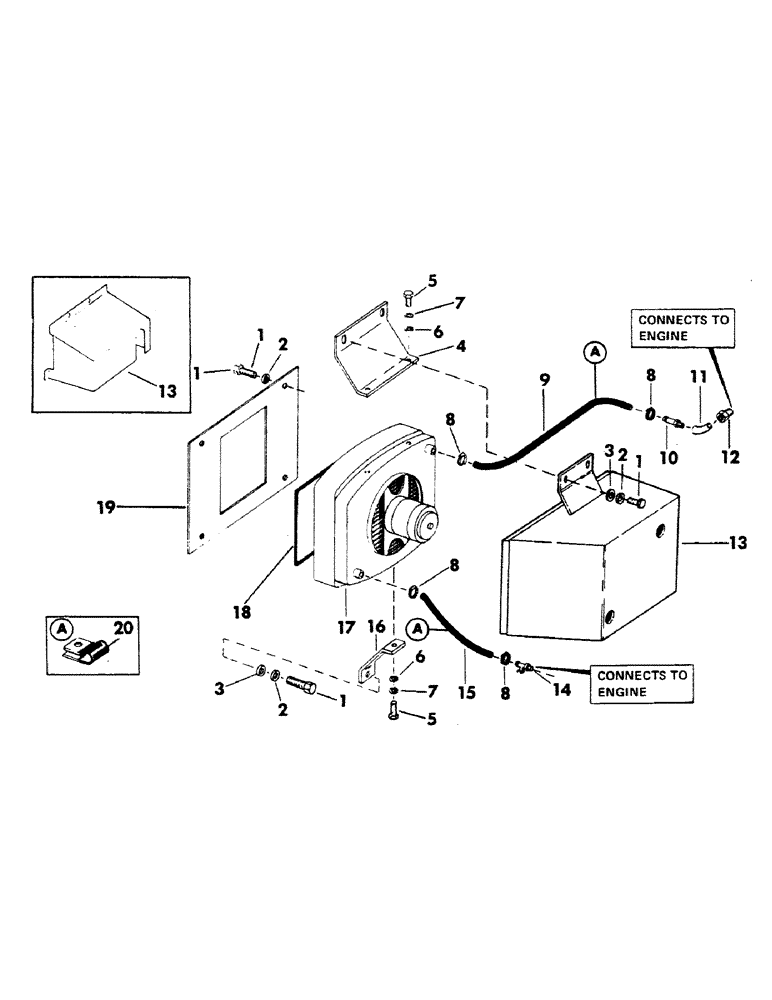

Запчасти Case 40EC (168) - HEATER AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S2401

BOLT

CPSW - 3/8" NC X 1-3/4" GR 5

7шт.

2

S4397

WASHER

lock - 3/8"

7шт.

3

S7385

INSTRUCTION

WASHER, flat - 3/8"

3шт.

4

S219433

BRACKET, top mounting

1шт.

5

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" gr 5

3шт.

6

S7378

WASHER

flat - 1/4"

3шт.

7

S4395

WASHER, LOCK

- 1/4"

3шт.

8

S10871

HOSE CLAMP

CLAMP, hose

4шт.

9

S49608

HOSE

low pressure (Bulk) - 1 piece - 5/8" ID x 70" long

1шт.

10

S64491

CONNECTOR, ELEC

ADAPTER, hose - 1/2" - 14 NPT x 5/8" ID hose

1шт.

11

S17526

ELBOW

90 degree - 1/2" - 14 NPT female x 1/2" - 14 NPT female

1шт.

12

S7773

REDUCER

BUSHING, reducing - 1/2" - 14 NPT female x 3/4" - 14 NPT male

1шт.

13

S505728

SHIELD - (Used on units with serial no. 1500 thru 2003) - (See insert above)

1шт.

S606733

SHIELD

- (Used on units with serial no. 2004 - up)

1шт.

14

S83788

VALVE

shut off

1шт.

15

S49608

HOSE

low pressure (Bulk) - 1 piece - 5/8" ID x 90" long

1шт.

16

S91959

BRACKET, bottom mounting

1шт.

17

HEATER, hot water - (For breakdown, see Figure 168A)

1шт.

18

S76711

SEAL

MOLDING, rubber - 36" long

1шт.

19

S219434

SHEET, cover

1шт.

20

S77405

CLAMP

2шт.
