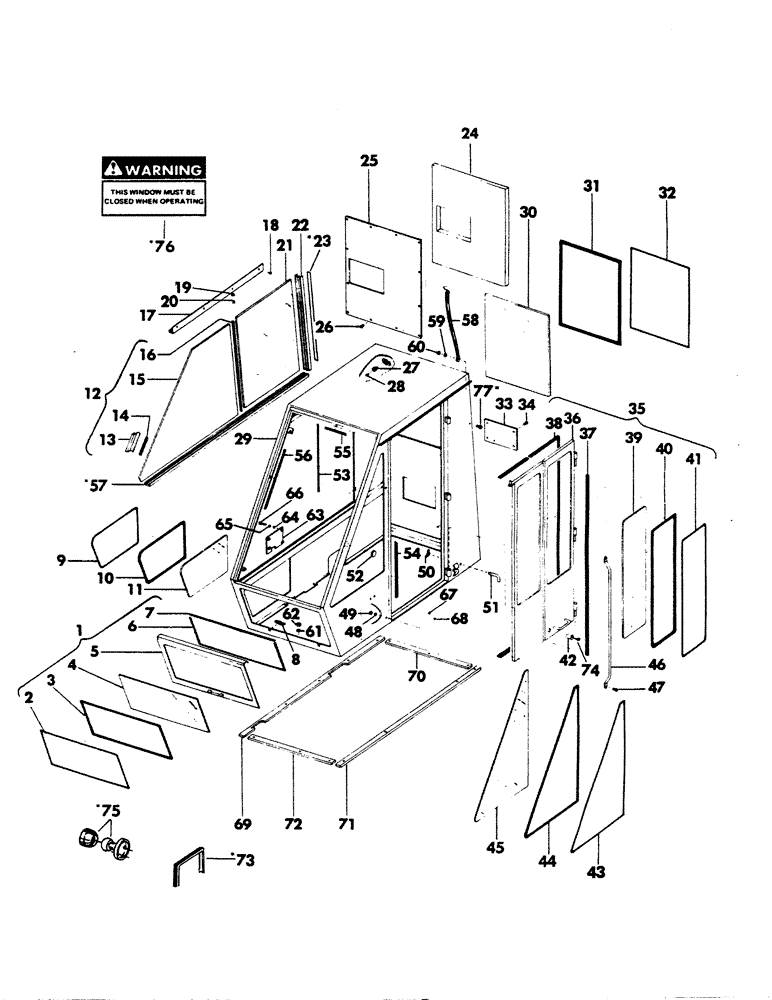

Запчасти Case 40EC (043) - STANDARD CAB AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

S952943M1

CAB ASSEMBLY - (Includes items 1 thru 56 and Figure 041)

1шт.

Change in listing.

1шт.

1

S221463

COVER

ASSEMBLY - (Includes items 2 thru 8)

1шт.

2

S75830

SEAL

STRIP, filler - (Bulk) - 86.8" long

1шт.

3

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 86.8" long

1шт.

4

S94320

GLASS - (Tempered)

1шт.

5

S94319

FRAME, cover

1шт.

6

S75852

SEAL - (Bulk) - 63.6" long

1шт.

7

S75851

SEAL - (Bulk) - 30.5" long

1шт.

8

S94321

NUT

wing - 5/16" NC

2шт.

9

S75830

SEAL

STRIP, filler - (Bulk) - 42" long

1шт.

10

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 42" long

1шт.

11

S94303

GLASS - (Tempered)

1шт.

12

S218056

CAB GLASS ASSY

GLASS ASSEMBLY, sliding - (Includes items 13 thru 16)

1шт.

13

S90089

HANDLE

1шт.

14

S90091

SEAL

1шт.

15

S89974

GLASS

- (Tempered)

1шт.

16

S90092

SEAL

1шт.

17

S218052

RETAINER

ASSEMBLY - (Includes glass channel)

1шт.

18

S90054

SCREW, Phillips pan head - 1/4" NC x 1/2"

4шт.

19

S90062

SPACER

2шт.

20

S90063

SCREW

Phillips pan head - no. 10 x 3/4"

2шт.

21

S89968

GLASS - (Tempered)

1шт.

22

S79219

SEAL

CHANNEL, glass run - (Bulk) - 1 piece x 36" long

1шт.

Change in listing.

1шт.

23

S90055

STRIP, nylon - 3/8"

1шт.

Change in listing.

1шт.

24

S90050

FOAM INSULATION

INSULATION - (Back of cab inside)

1шт.

25

S90077

LINING

LINER - (Back of cab inside)

1шт.

26

S90051

SCREW, self tapping Phillips head - no. 10 x 1/2"

12шт.

27

S94282

BUMPER - (Inside back of cab)

2шт.

28

S14515

SCREW, Phillips head - no. 10 NF x 5/8"

2шт.

29

S94280

BODY, cab

1шт.

30

S89969

GLASS - (Tempered)

1шт.

31

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 102" long

1шт.

32

S75830

SEAL

STRIP, filler - (Bulk) - 102" long

1шт.

33

S90094

COVER - (Not used with cab heater)

1шт.

34

S94308

SCREW

pan head - 3/8" NC x 5/8" - (Not used with cab heater)

4шт.

35

S221461

DOOR ASSY.

DOOR ASSEMBLY - (Includes items 36 thru 42)

1шт.

36

NSS

NOT SOLD SEPARAT

FRAME, door

1шт.

Change in listing.

1шт.

37

S90079

SEAL - (Bulk) - 54" long - (Between doors)

1шт.

38

S75838

SEAL

- (Bulk) - 109" long

1шт.

39

S89973

GLASS - (Tempered)

2шт.

40

S75829

SEAL

SETTING MATERIAL - (Bulk) - 2 pieces - 94" long

1шт.

41

S75830

SEAL

STRIP, filler - (Bulk) - 2 pieces - 94" long

1шт.

42

S90080

LOCK

1шт.

If replacement of cab lock keys is required, check lock prior to ordering. If lock is stamped as 915, order key no. S94605 or if stamped 1363, order key no. S104954.

1шт.

43

S75830

SEAL

STRIP, filler - (Bulk) - 106" long

1шт.

44

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 106" long

1шт.

45

S89967

GLASS - (Tempered)

1шт.

46

S90093

HANDLE, grab

1шт.

47

S90048

SCREW, Phillips pan head - 5/16" NC x 3/4"

2шт.

48

S4396

WASHER, LOCK

- 5/16"

2шт.

49

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC

2шт.

50

S90040

NUT

wing - 1/2" NC

1шт.

51

S90058

HOOK

1шт.

52

S94281

PLUG, bottom

1шт.

53

S90053

WEATHERSTRIP - (Bulk) - 35.5" long

1шт.

54

S90049

SEAL - (Bulk) - 55" long

1шт.

55

S67064

SEAL

1шт.

56

F67064

SEAL

2шт.

57

S79219

SEAL

CHANNEL, glass run - (Bulk) - 1 piece x 52" long

1шт.

Change in listing.

1шт.

58

S92823

RETAINER, rubber - (Window storage)

1шт.

59

S7380

WASHER

flat - 9/32"

1шт.

60

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

61

S86132

WASHER

hard - 17/32" ID x 1-1/16" OD

15шт.

62

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

15шт.

63

S220310

COVER

1шт.

64

S7380

WASHER

flat - 9/32"

4шт.

65

S4395

WASHER, LOCK

- 1/4"

4шт.

66

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" gr 5

4шт.

67

S93083

PLUG - (In cab horn mounting hole)

1шт.

68

S92987

PLUG - (In cab horn mounting hole)

1шт.

69

S87620

STRIP, rubber

1шт.

70

S87616

STRIP, rubber

1шт.

71

S218166

STRIP

rubber

1шт.

72

S87617

STRIP, rubber

1шт.

73

S200069

SEAL

CHANNEL, rubber (Bulk) - 4" long - (Use where required)

1шт.

74

KEY, door lock

1шт.

If replacement of cab lock keys is required, check lock prior to ordering. If lock is stamped as 915, order key no. S94605 or if stamped 1363, order key no. S104954.

1шт.

75

S97487

PLUNGER

STOP, door

1шт.

Added listing.

1шт.

76

S105633

DECAL

close window warning

1шт.

Added listing.

1шт.

77

S2352

BOLT

CPSW - 1/4" NC x 1-1/4" gr 5

1шт.

Added listing.

1шт.
