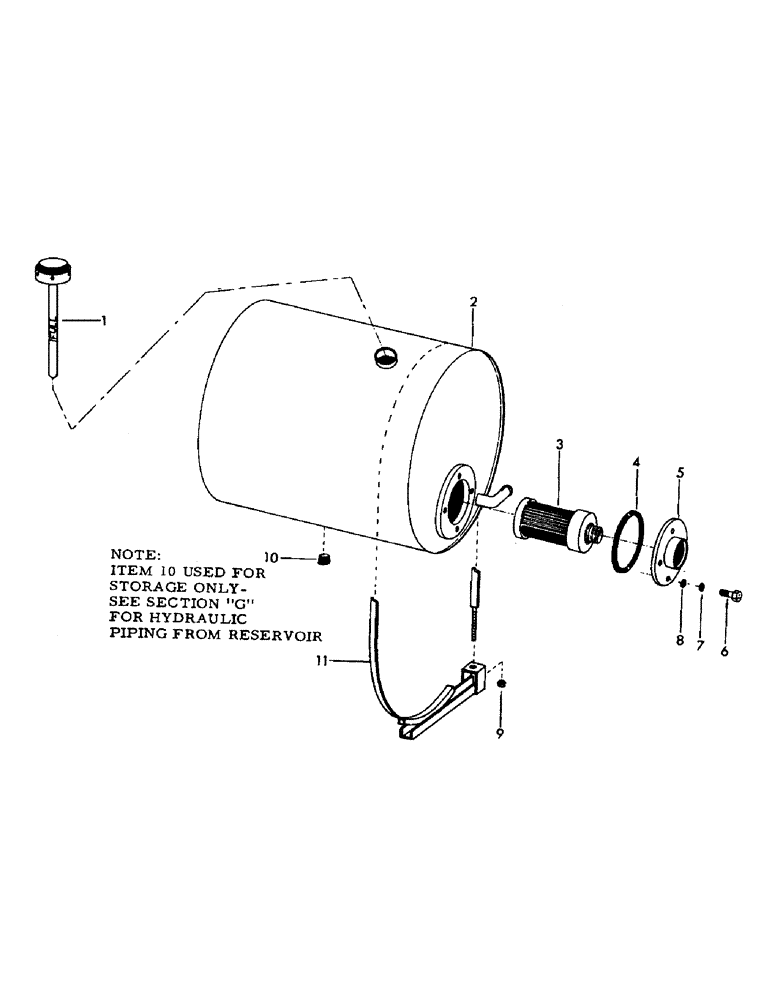

Запчасти Case 40EC (H07) - HYDRAULIC OIL RESERVOIR (07) - HYDRAULIC SYSTEM

38173

LINE

RESERVOIR, hydraulic oil, Consists of Refs. 1, 2, and 5 thru 11, Used on units with serial number 1 thru 899

1шт.

502097

RESERVOIR, hydraulic oil, Consists of Refs. 1, 2, and 5 thru 11, Used on units with serial number 900-up

1шт.

Change in listing.

1шт.

1

208164

BREATHER AND DIPSTICK ASSEMBLY

1шт.

Part of hydraulic reservoir

1шт.

2

207808M1

TANK, hydraulic oil, Used on units with serial nubmer 1 thru 899

1шт.

Part of hydraulic reservoir

1шт.

502098

TANK, hydraulic oil, Used on units with serial number 900-up

1шт.

3

26293

SCREEN, hydraulic oil, Marvel #M-2075

1шт.

4

6334

HYDRAULIC HOSE,19.05mm ID x 485mm L, SAE 100R17

"O" RING - 4.234" ID x 4.500" O.D.

1шт.

5

200926

FLANGE, filter mounting

1шт.

Part of hydraulic reservoir

1шт.

6

16475

PLATE

CPSW - 5/16" x 1" NC grade 5

4шт.

Part of hydraulic reservoir

1шт.

7

4396

LOCKWASHER - 5/16"

4шт.

Part of hydraulic reservoir

1шт.

8

103366

KEY

WASHER - seal

4шт.

Part of hydraulic reservoir

1шт.

9

4226

- 5/8" NC

2шт.

Part of hydraulic reservoir

1шт.

7403

WASHER, falt - 5/8"

2шт.

Part of hydraulic reservoir

1шт.

10

15165

CLAMP

PLUG, pipe - 3/4" NPT

1шт.

Part of hydraulic reservoir

1шт.

11

207825

BRACKET, hydraulic oil tank mounting, Set of 2, includes Ref. 9

1шт.

Part of hydraulic reservoir

1шт.

Change in listing.

1шт.

2502

RUBBER WASHER

CPSW - 5/8" x 1-1/2" NC grade 5

4шт.

7403

WASHER, flat - 5/8"

4шт.
