Запчасти Case 40EC (H06) - LEVELER CYLINDER, 52773M2 - 6-1/2" ID X 4.20 STROKE, 56810 (07) - HYDRAULIC SYSTEM

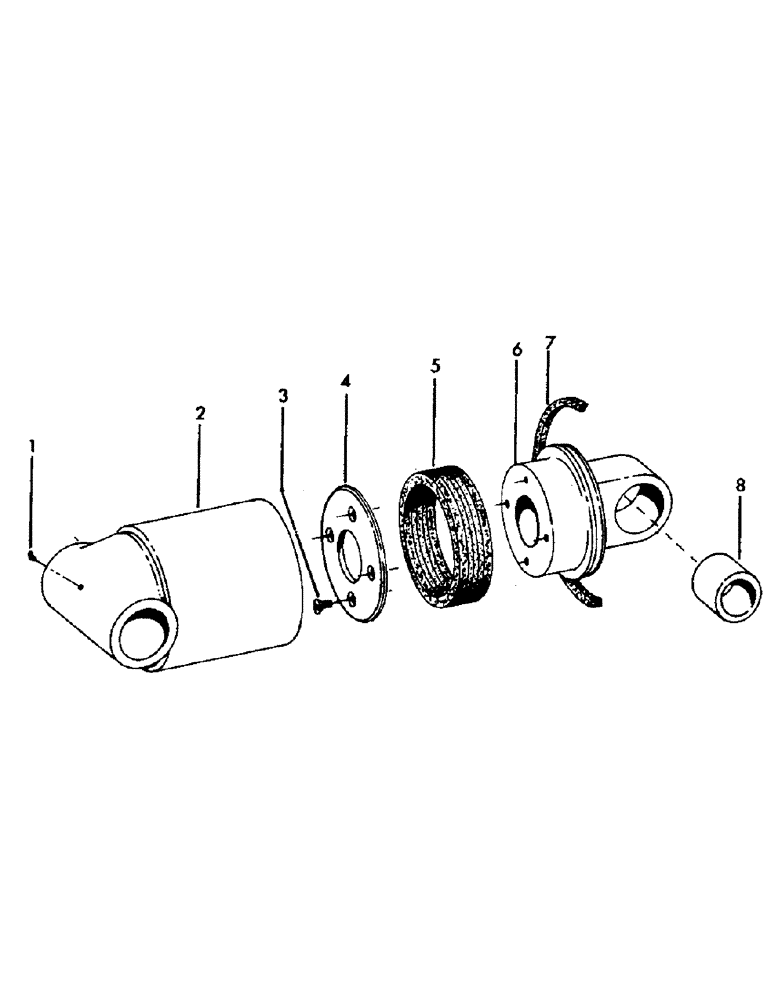

Схема запчастей Case 40EC - (H06) - LEVELER CYLINDER, 52773M2 - 6-1/2" ID X 4.20 STROKE, 56810 (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

52773M2

CYLINDER, leveler, Consists of 1 of Ref. 8 and Refs. 2 thru 7, Used on units with serial number 1 thru 699

2шт.

Change in listing.

1шт.

56810

CYLINDER, leveler, Consists of 1 of Ref. 8 and Refs. 2 thru 7, Used on units with serial number 700-up

2шт.

1

49270

SPACER

FITTING, grease - 1/8" NPT x 90 degrees, Used on units with serial number 1 thru 699

1шт.

13732

SWITCH

FITTING, grease - 1/8" NPT x 45 degrees, Used on units with serial number 700-up

1шт.

2

202462

TUBE, cylinder - for earlier 52773 cylinder, Used on units with serial number 1 thru 699

1шт.

203273M1

TUBE, cylinder - for later 52773M2 cylinder, Used on units with serial number 1 thur 699

1шт.

Change in listing.

1шт.

Some earlier units used a 52773 cylinder which has a cylinder tube with 2 hardened steel bushings in the base end. The newer 52773M2 cylinder does not require bushings in the base. Before ordering new cylinder tube, check cylinder base end. All other cylinder parts between 52773, and 52773M2 are interchangeable.

1шт.

209057

TUBE, cylinder, Used on units with serial number 700-up

1шт.

3

4926

CPSW - flat head - 3/8" x 3/4" NC grade 5

4шт.

4

64145

SUPPORT

PLATE, piston base

1шт.

5

202459

CONNECTING LINK

"V" RING CUP ASSEMBLY, Used on units with serial number 1 thru 699

1шт.

209061

"V" RING CUP ASSEMBLY, Used on units with serial number 700-up

1шт.

6

203271

ROD AND PISTON ASSEMBLY - includes bushing, Used on units with serial number 1 thru 699, Includes 1 of Ref. 8

1шт.

209060

ROD AND PISTON ASSEMBLY - includes bushing, Used on units with serial number 700-up

1шт.

7

64146

SPACER

RING, wiper - felt

1шт.

8

202130

BUSHING, hardened steel, all cylinders use 1 bushing at the rod end

1шт.

Some earlier units used a 52773 cylinder which has a cylinder tube with 2 hardened steel bushings in the base end. The newer 52773M2 cylinder does not require bushings in the base. Before ordering new cylinder tube, check cylinder base end. All other cylinder parts between 52773, and 52773M2 are interchangeable.

1шт.

Выбрано товаров: 19
