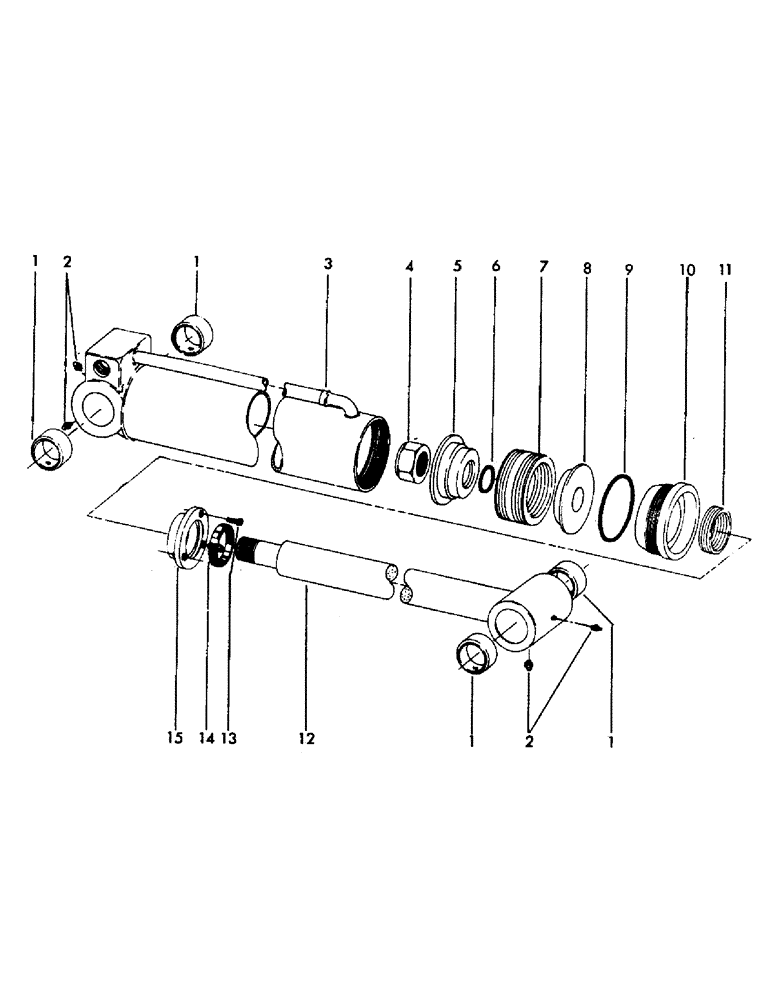

Запчасти Case 40EC (H02) - TOOL CYLINDER, 5-9/32 ID X 35-3/32" STROKE (07) - HYDRAULIC SYSTEM

S38340M2

CYLINDER, tool, Consists of Refs. 1 thru 15

1шт.

Change in listing.

1шт.

1

202137

BUSHING

4шт.

2

12031

FITTING, grease - 1/8" NPT, Straight

4шт.

3

205631M2

TUBE, cylinder

1шт.

4

9025

TOOL

NUT, self locking - 1-1/2" NF

1шт.

5

28263

PISTON, with "O" ring seat

1шт.

6

5815

PANEL

"O" RING - 1-31/64" ID x 1-3/4" O.D.

1шт.

7

S204680M1

"V" RING CUP ASSEMBLY

1шт.

Change in listing.

1шт.

8

28265

BALL

PISTON, half

1шт.

9

6022

BUZZER

"O" RING - 4-31/64" ID x 5-1/2" O.D.

1шт.

10

200832

HEAD, cylinder

1шт.

11

28514

SPACER

"V" RING CUP ASSEMBLY

1шт.

12

205629M1

ROD, piston, Includes two of Ref. 1

1шт.

13

15515

BOLT - 3/8" x 1" NF

3шт.

14

22940

PISTON

SEAL, wiper

1шт.

15

200834

FLANGE, packing

1шт.
