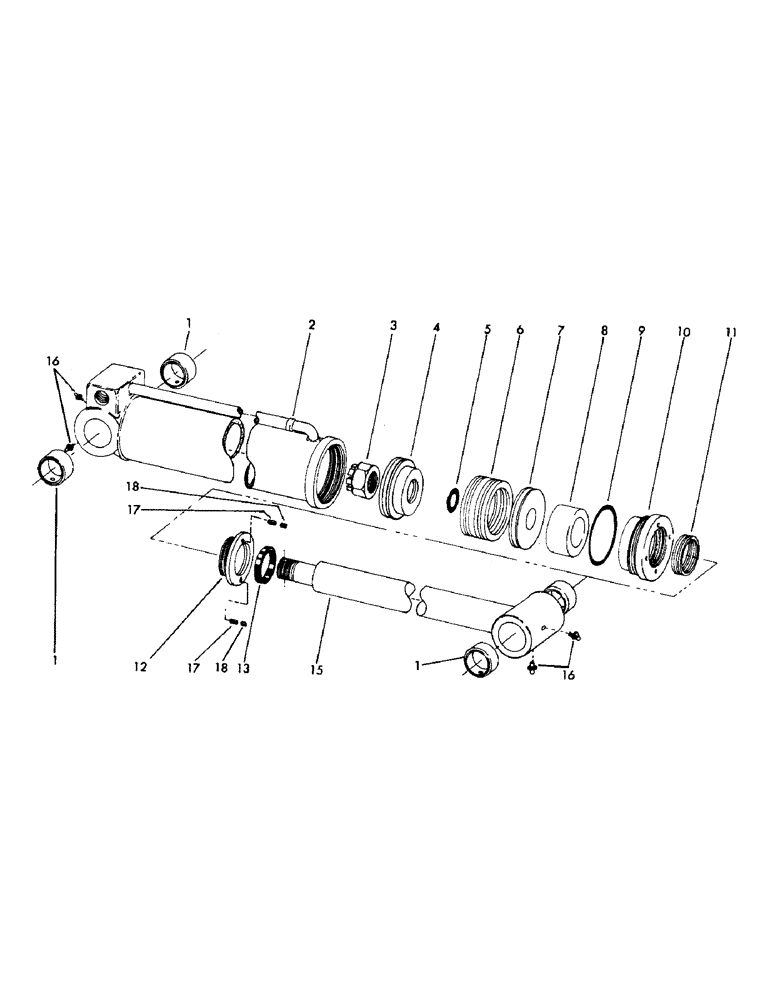

Запчасти Case 40EC (H01) - CROWD AND HOIST CYLINDERS, (6.25" ID X 45.50" STROKE) (07) - HYDRAULIC SYSTEM

S36288M9

CYLINDER, hoist and crowd - complete, Consists of Refs. 1 thru 16

2шт.

Change in listing.

1шт.

1

202137

BUSHING

4шт.

2

205637M2

TUBE

1шт.

3

80914

NUT, slotted

1шт.

4

206994

LINK CONROD

PISTON - with "O" ring seat

1шт.

5

5920

SPRING

"O" RING - 1.725" ID x 2.125" O.D.

1шт.

6

S206993M1

"V" RING CUP ASSEMBLY

1шт.

Change in listing.

1шт.

7

206995

SPARE PART

PISTON, half

1шт.

8

78013

SPACER

1шт.

9

6028

SPARE PART

"O" RING - 5.750" ID x 6.250" O.D.

1шт.

10

28257M2

HEAD, cylinder

1шт.

11

25184M1

"V" RING CUP ASSEMBLY

1шт.

12

28247

FLANGE, packing

1шт.

13

43987

SEAL, wiper

1шт.

15

S205639M4

ROD, piston, Includes two of Ref. 1

1шт.

16

NLS

NO LONGER SERVICED

FITTING, grease - 1/8" NPT, Straight

4шт.

17

13889

TOOL

SCREW, set - #10 x 5/8" NF - cup point, Packing gland to cylinder head

2шт.

18

1958403C1

KNIFE

SCREW, set - #10 x 1/4" NF - oval point , For lock to Ref. 17

2шт.
