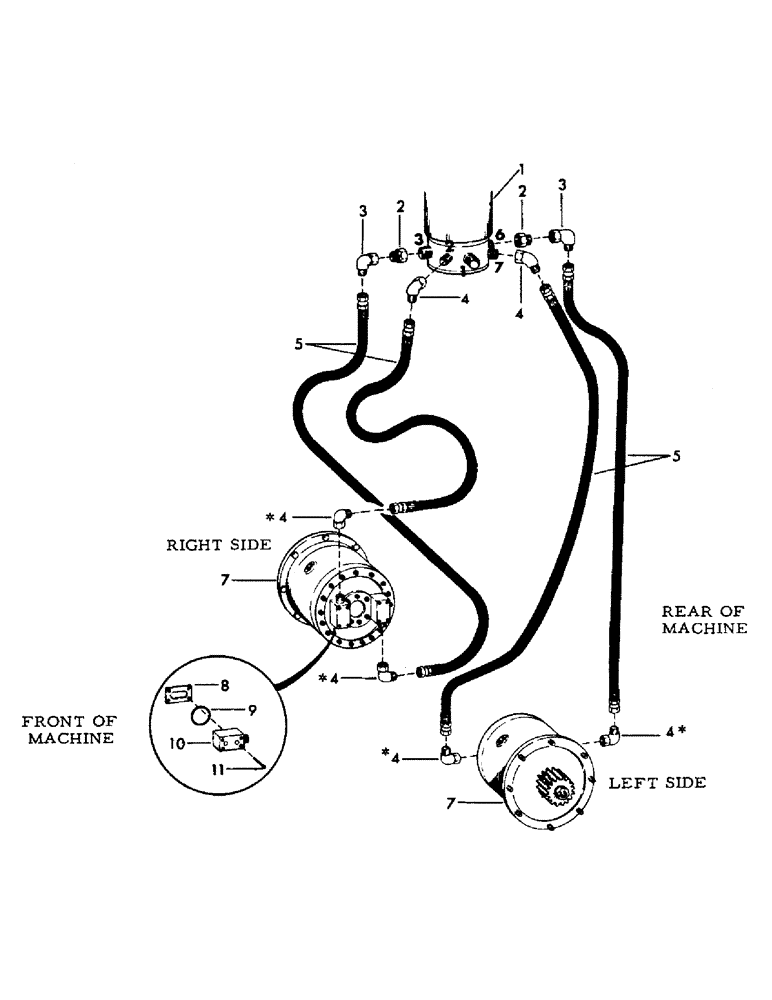

Запчасти Case 40EC (G16) - SWIVEL TO TRACK DRIVE MOTORS AND RETURN, (USED ON UNITS WITH (07) - HYDRAULIC SYSTEM

1

SWIVEL, hydraulic - (For breakdown, see section "H")

1шт.

Change in listing.

1шт.

2

101832

ADAPTER, reducing - 1" x 3/4" reduction - 1-1/16" JIC thread

2шт.

6279

NUT, tube

2шт.

3

10359

TUBE ASSY.

ELBOW - 90 degrees swivel - 1-1/16" male x 1-1/16" female

2шт.

4

1958432C1

ANCHOR

ELBOW - 45 degrees swivel - 1-1/16" male x 1-1/16" female

6шт.

Change in listing.

1шт.

5

15468

BUSHING

HOSE, high pressure - 3/4" ID x 28" long

4шт.

7

MOTOR, track drive - (For breakdown, see section "H")

2шт.

Change in listing.

1шт.

8

72553M1

RETAINER

4шт.

9

6587

THREADED TIE-ROD

"O" RING - 1.609" ID x 1.875" O.D.

4шт.

10

206083M1

BLOCK

4шт.

11

72551

IGNITION SWITCH

CPSW

4шт.
