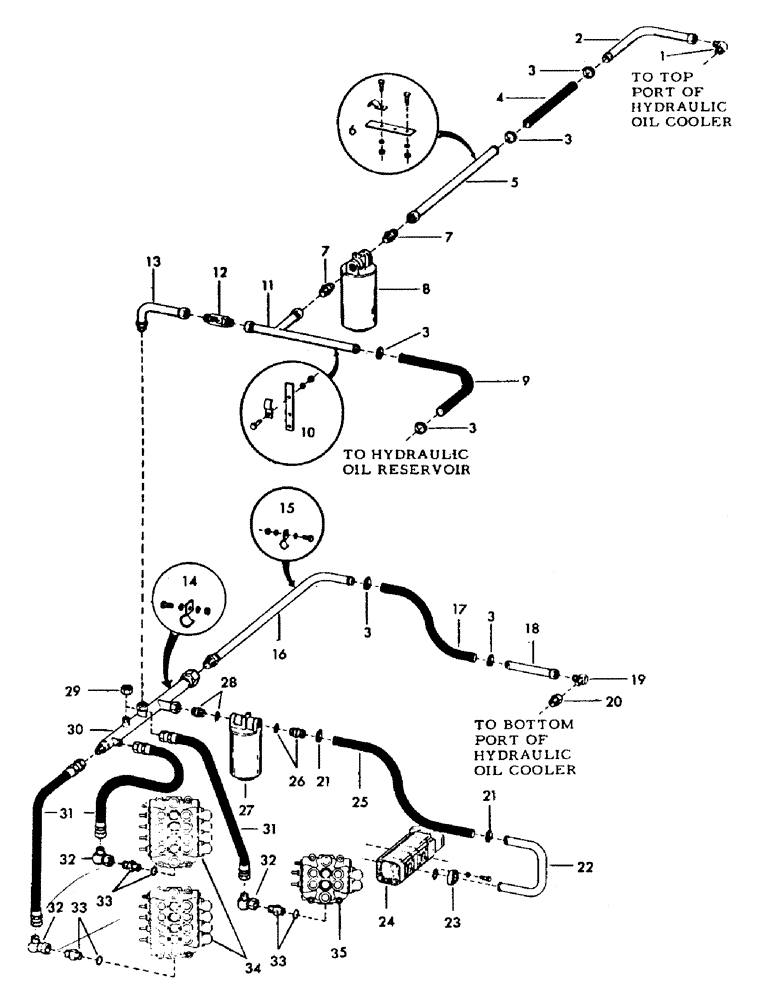

Запчасти Case 40EC (G13A) - VALVE OUTLETS TO RESERVOIR (WITH FILTER AND COOLER LINES) (07) - HYDRAULIC SYSTEM

1

7727

PLUG

ELBOW, 90 degrees - (1" tube) - 1-5/16" - 12 male x 1" NPT male - 37 degrees flared

1шт.

2

208829

BRACKET

LINE, hydraulic

1шт.

3

10874

CLAMP, hose - fits 1" O.D. to 1-1/4" O.D. hoses

6шт.

4

202582

HOSE, low pressure (Bulk) - 1 piece - 1-1/4" ID x 12" long

1шт.

5

209412

LINE, hydraulic

1шт.

6

78364

BAR

1шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC grade 5

3шт.

4397

LOCKWASHER - 3/8"

3шт.

4222

NUT - 3/8" NC

3шт.

74469

CLAMP

1шт.

7

7976

SEAL KIT

CONNECTOR - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared - (Includes "O" ring)

2шт.

6073

O-RING

"O" RING - 1.475" ID x 1.711" O.D.

2шт.

8

209408

FILTER - hydraulic oil - (For breakdown, see section "H")

1шт.

9

202582

HOSE, low pressure (Bulk) - 1 piece - 1-1/4" ID x 20" long

1шт.

Change in listing.

1шт.

10

78363

BAR

1шт.

74469

CLAMP

1шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC grade 5

1шт.

4397

LOCKWASHER - 3/8"

1шт.

4222

NUT - 3/8" NC

1шт.

11

209410

LINE, hydraulic

1шт.

12

209396

VALVE, check

1шт.

13

209411

LINE, hydraulic

1шт.

14

48463

CLAMP

1шт.

2468

TACHOMETER

CPSW - 1/2" x 1-3/4" NC grade 5

1шт.

4399

WASHER

LOCKWASHER - 1/2"

1шт.

4224

NUT - 1/2" NC

1шт.

7393

WASHER - 1/2"

1шт.

15

74469

CLAMP

1шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC grade 5

1шт.

7389

WASHER - 1/2"

1шт.

4397

LOCKWASHER - 3/8"

1шт.

4222

NUT - 3/8" NC

1шт.

16

208827

LINE, hydraulic

1шт.

17

202582

HOSE, low pressure (Bulk) - 1 piece - 1-1/4" ID x 19" long

1шт.

18

208828

LINE, hydraulic

1шт.

19

63420

ELBOW - 90 degrees - (1" tube) - 12 male x 3/4" NPT male - 37 degrees flared

1шт.

20

7775

BUSHING, reducing - 1" NPT male to 3/4" NPT female

1шт.

21

10876

hose - fits 1-1/4 O.D. to 1-1/2" O.D.

2шт.

22

39060

LINE, hydraulic - (Used on all units except GMC 4-71 diesel engine)

1шт.

502309

LINE, hydraulic - (Used on GMC 4-71 diesel engine units only)

1шт.

23

10865

HALF-FLANGE

CLAMP, split flange - (Used on all units except GMC 4-71 diesel engine)

2шт.

6589

CYLINDER END CAP

"O" RING - 1.859" ID x 2.125" O.D. - (Used on all units except GMC 4-71 diesel engine)

1шт.

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC grade 5 - (Used on all units except GMC 4-71 diesel engine)

4шт.

4399

WASHER

LOCKWASHER - 1/2" - (Used on all units except GMC 4-71 diesel engine)

4шт.

290045R1

FLANGE

split - (Used on GMC 4-71 diesel engine units only)

2шт.

5815

PANEL

"O" RING - 1.484" ID x 1.750" O.D. - (Used on GMC 4-71 diesel engine units only)

1шт.

2431

FITTING

CPSW - 7/16" x 1-1/4" NC grade 5 - (Used on GMC 4-71 diesel engine units only)

4шт.

4398

LOCKWASHER - 7/16" - (Used on GMC 4-71 diesel engine units only)

4шт.

24

205756

PUMP, main hydraulic - (For breakdown, see section "H")

1шт.

25

NLS

NO LONGER SERVICED

HOSE, low pressure (Bulk) - 1 piece - 1-1/2" ID x 36" long

1шт.

26

63811

NUT

ADAPTER - (Includes "O" ring)

1шт.

6073

O-RING

"O" RING - 1.475" ID x 1.711" O.D.

1шт.

27

209407M1

FILTER - hydraulic oil - (For breakdown, see section "H")

1шт.

28

212071

ADAPTER - (Special) - (Includes "O" ring)

1шт.

Change in listing.

1шт.

6073

O-RING

"O" RING - 1.475" ID x 1.711" O.D.

1шт.

29

9419

TANK

CAP - 1-5/16" - 12 female - 37 degrees flared - (Used only when heel boom is not used)

1шт.

30

502093

CLIP

LINE, hydraulic

1шт.

31

8628

HOSE, high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings) - (Quantity of 2 used when heel boom is not used and quantity of 3 used when heel boom is not used)

1шт.

32

10361

BRACKET

ELBOW, 90 degrees - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees - quantity of 2 used when heel boom is not used and quantity of 3 used when heel boom is used)

1шт.

33

7972

JACK

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring)

1шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

1шт.

34

VALVE, main - (For breakdown, see section "H")

2шт.

35

VALVE, optional heel boom - (For breakdown, see section "H")

1шт.
