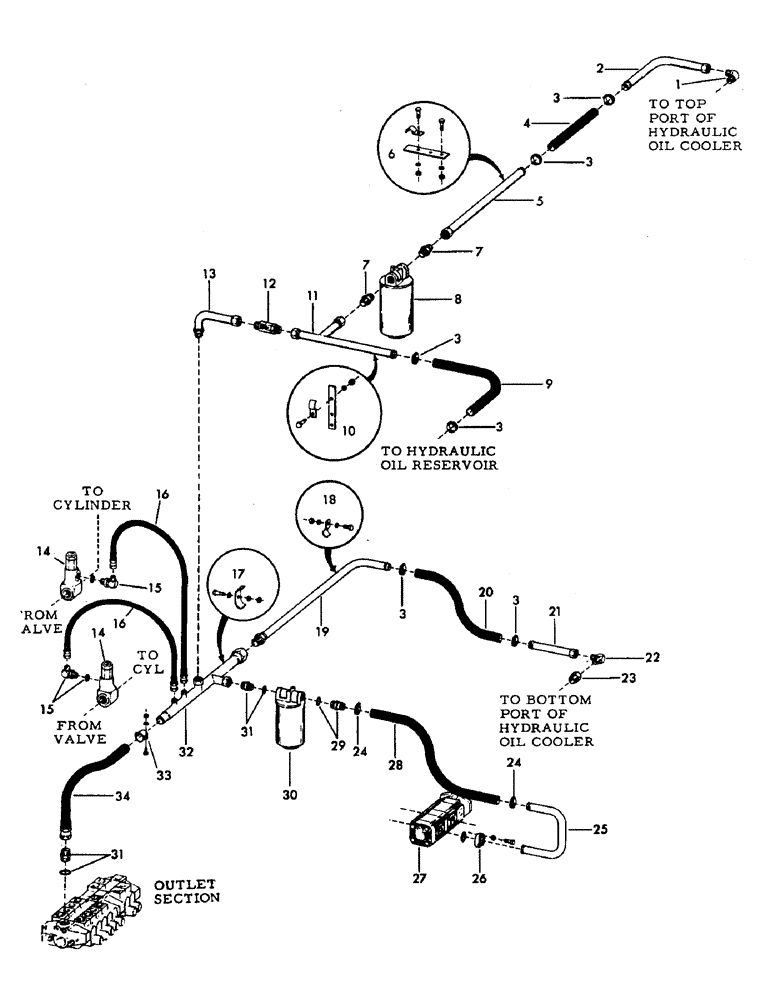

Запчасти Case 40EC (G12) - VALVE OUTLET TO RESERVOIR (WITH FILTER AND COOLER LINES), (07) - HYDRAULIC SYSTEM

1

7727

PLUG

ELBOW, 90 degrees adapter - 1-5/16" male x 1" NPT male

1шт.

2

208829

BRACKET

LINE, hydraulic

1шт.

3

10874

CLAMP, HOSE - fits 1" O.D. to 1-1/4" O.D.

6шт.

4

202582

HOSE, low pressure (Bulk) - 1 piece 1-1/4" ID x 12" long

1шт.

5

209412

LINE, hydraulic

1шт.

6

78364

BAR

1шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC grade 5

3шт.

4397

LOCKWASHER - 3/8" ID

3шт.

4222

NUT - 3/8" NC

3шт.

74469

CLAMP

1шт.

Change in listing.

1шт.

7

7976

SEAL KIT

CONNECTOR - 1-5/8" male x 1-5/8" male

2шт.

6073

O-RING

"O" RING - 1.475" ID x 1.711" O.D.

2шт.

8

209408

FILTER, hydraulic oil - (For breakdown, see section "H")

1шт.

9

202582

HOSE, low pressure (Bulk) - 1 piece 1-1/4" ID x 18" long

1шт.

10

78363

BAR

1шт.

74469

CLAMP

1шт.

Change in listing.

1шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC grade 5

1шт.

4397

LOCKWASHER - 3/8" ID

1шт.

4222

NUT - 3/8" NC

1шт.

11

209410

LINE, hydraulic

1шт.

12

209396

VALVE, check

1шт.

13

209411

LINE, hydraulic

1шт.

14

VALVE, inline relief (For breakdown, see section "H")

2шт.

Change in listing.

1шт.

15

7954

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

ELBOW - 90 degrees adjustable - 1-1/16" male x 1-5/16" male

2шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

2шт.

16

15468

BUSHING

HOSE, high pressure - 3/4" ID x 28" long

2шт.

17

7-5384

CATALOG

CLAMP,Ammeter to Light Switch Wire, 20

1шт.

2472

CPSW - 1/2" x 2-3/4" NC grade 5

1шт.

4399

WASHER

LOCKWASHER - 1/2" ID

1шт.

4224

NUT - 1/2" NC

1шт.

7389

WASHER - 1/2" ID

1шт.

18

74469

CLAMP

1шт.

Change in listing.

1шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC grade. 5

1шт.

7389

WASHER - 1/2" ID

1шт.

4397

LOCKWASHER - 3/8" ID

1шт.

4222

NUT - 3/8" NC

1шт.

19

208827

LINE, hydraulic

1шт.

20

202582

HOSE, low pressure (Bulk) - 1 piece 1-1/4" ID x 19" long

1шт.

21

208828

LINE, hydraulic

1шт.

22

63420

ELBOW - 90 degrees adapter - 1-5/16" male x 3/4" NPT male

1шт.

23

7775

BUSHING, reducing - 1" NPT to 3/4" NPT

1шт.

24

10876

hose - fits 1-1/4" O.D. to 1-1/2" O.D.

2шт.

25

39060

LINE, hydraulic

1шт.

26

10865

HALF-FLANGE

CLAMP, split flange

2шт.

6589

CYLINDER END CAP

"O" RING - 1.859" ID x 2.125" O.D.

1шт.

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC grade 5

4шт.

4399

WASHER

LOCKWASHER - 1/2" ID

4шт.

27

PUMP, main hydraulic - (For breakdown, see section "H")

1шт.

Change in listing.

1шт.

28

NLS

NO LONGER SERVICED

HOSE, low pressure (Bulk) - 1 piece 1-1/2" ID x 36" long

1шт.

29

63811

NUT

ADAPTER

1шт.

6073

O-RING

"O" RING - 1.475" ID x 1.711" O.D.

1шт.

30

209407M1

FILTER, hydraulic oil - (For breakdown, see section "H")

1шт.

31

7976

SEAL KIT

ADAPTER - 1-5/8" male x 1-5/8" male

2шт.

6073

O-RING

"O" RING - 1.475" ID x 1.711" O.D.

2шт.

32

39600

LINE, hydraulic

1шт.

33

63607

SPACER

CLAMP

1шт.

34

75974

MUFFLER

HOSE, high pressure - 1-1/4" ID x 24-3/4" long

1шт.
