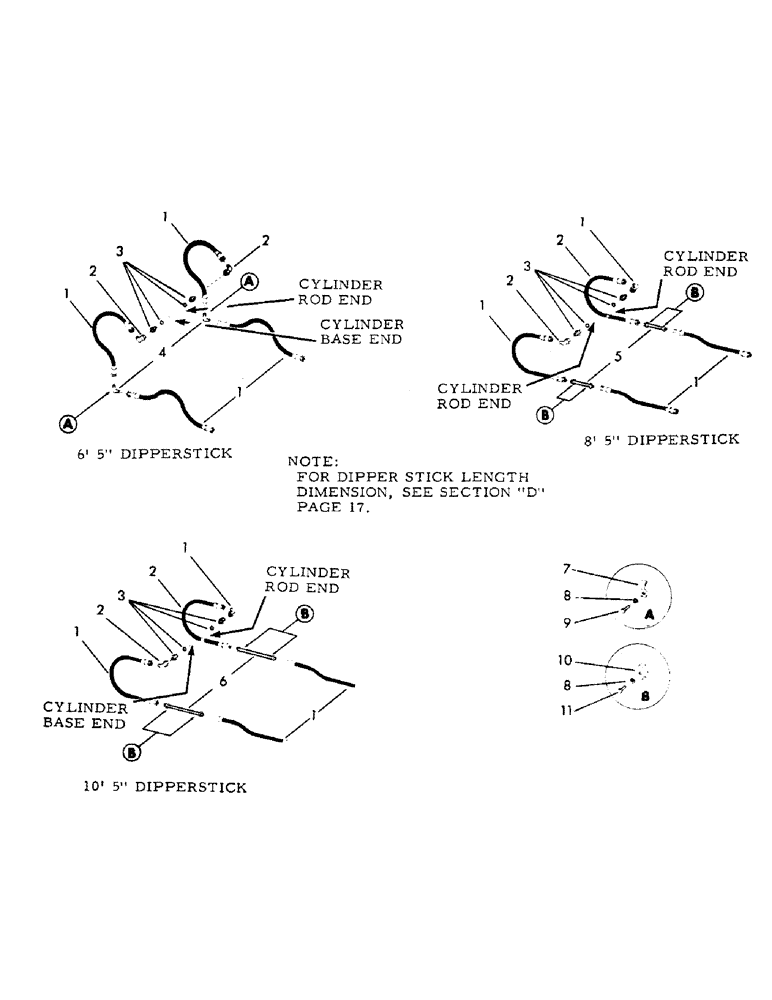

Запчасти Case 40EC (G08A) - VALVE TO TOOL CYLINDER AND RETURN FOR "E" BOOM, - DIPPER (07) - HYDRAULIC SYSTEM

1

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

2

10361

BRACKET

ELBOW, swivel 90 degrees - 1" tube - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

2шт.

3

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

4

S10871

HOSE CLAMP

ELBOW, 90 degrees (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees - (Used on 6' 5" dipper stick)

2шт.

5

S211836

TUBE,1.25" OD x 17.3" L

LINE, hydraulic - (Used on 8' 5" dipperstick)

2шт.

6

S211835

TUBE ASSY.,1.25" OD x 41.3" L

LINE, hydraulic - (Used on 10' 5" dipperstick)

2шт.

7

S82991

CLAMP

tube

2шт.

8

4399

WASHER

LOCKWASHER - 1/2" - (Quantity of 2 used on 6' 5" dippersticks, quantity of 4 used on 8' 5" and 10' 5" dippersticks)

1шт.

9

S2488

BOLT

CPSW - 1/2" x 5/8" NC gr. 5

2шт.

10

S46397

CLAMP

tube

4шт.

11

S2470

BOLT

CPSW - 1/2" x 2-1/4" NC gr. 5

4шт.
