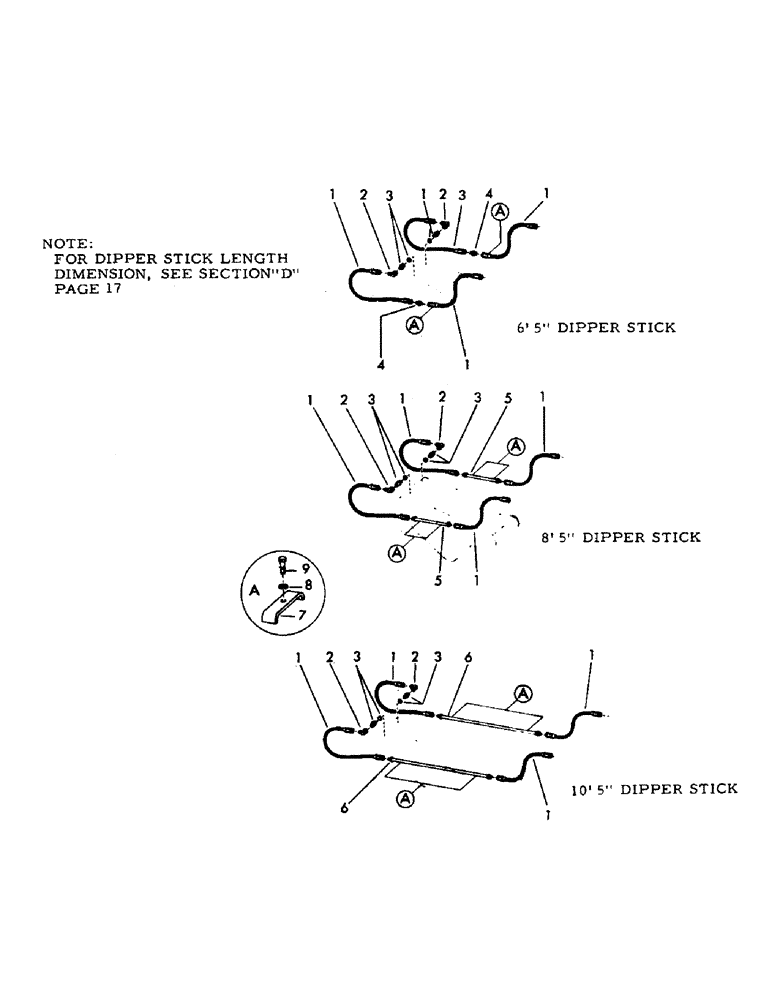

Запчасти Case 40EC (G08) - VALVE TO TOOL CYLINDER AND RETURN FOR "E" BOOM, - (07) - HYDRAULIC SYSTEM

1

8628

HOSE, high pressure - 1" ID x 36" long (With pressed on couplings)

4шт.

2

10361

BRACKET

ELBOW, 90 degrees flared swivel - 1-5/16" male x 1-5/16" female

2шт.

3

7972

JACK

CONNECTOR, flared - 1-5/16" male x 1-5/16" male (Includes "O" ring)

2шт.

6069

O-RING

"O" RING - 1-11/64" ID x 1-13/32" OD

2шт.

4

101338

UNION - 1-5/16" male x 1-5/16" male (Used with 6' 5" dipper stick)

2шт.

5

207133

LINE, hydraulic (Used with 8' 5" dipper stick)

2шт.

6

208813

LINE, hydraulic (Used with 10' 5" dipper stick)

2шт.

7

46397

PIPE CLAMP

CLAMP, tube (Quantity of 2 required with 6' 5" dipper stick, and a quantity of 4 required with 8' 5" and 10' 5" dipper sticks)

1шт.

8

4399

WASHER

LOCKWASHER - 1/2"

1шт.

9

2470

DISC

CPSW - 1/2" x 1-1/4" NC gr. 5

1шт.
