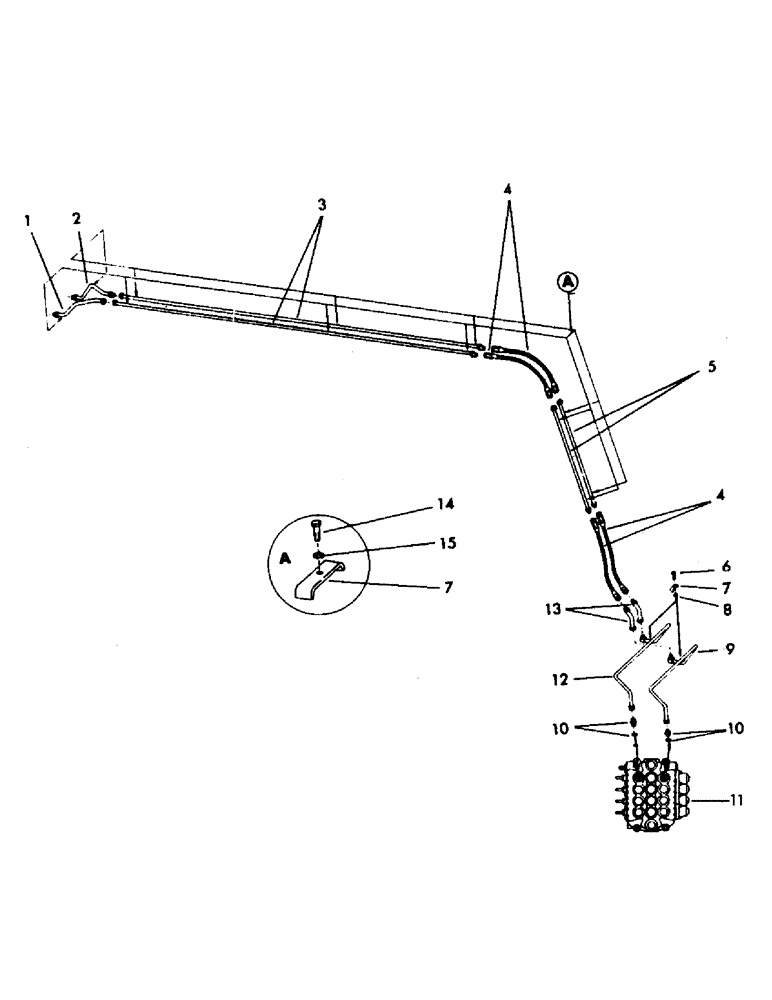

Запчасти Case 40EC (G07A) - VALVE TO TOOL CYLINDER AND RETURN FOR "E" BOOM, (USED ON (07) - HYDRAULIC SYSTEM

1

211834

LINE, hydraulic R.H.

1шт.

Change in listing.

1шт.

2

211833

SUPPORT

LINE, hydraulic L.H.

1шт.

Change in listing.

1шт.

3

211832

LINE, hydraulic

2шт.

4

8628

HOSE, high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

5

211850

LINE, hydraulic

2шт.

6

2473

BOLT

CPSW - 1/2" x 3" NC grade 5

2шт.

7

46397

PIPE CLAMP

CLAMP, tube

14шт.

8

17169

NUT, self locking - 1/2" NC

2шт.

9

502081

SPARE PART

LINE, hydraulic

1шт.

10

7972

JACK

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring)

2шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

2шт.

11

VALVE, main - outer - (For breakdown, see section "H")

1шт.

12

502080

MANIFOLD

LINE, hydraulic

1шт.

13

211849

LINE, hydraulic

2шт.

14

2470

DISC

CPSW - 1/2" x 2-1/4" NC grade 5

12шт.

15

4399

WASHER

LOCKWASHER - 1/2"

12шт.
