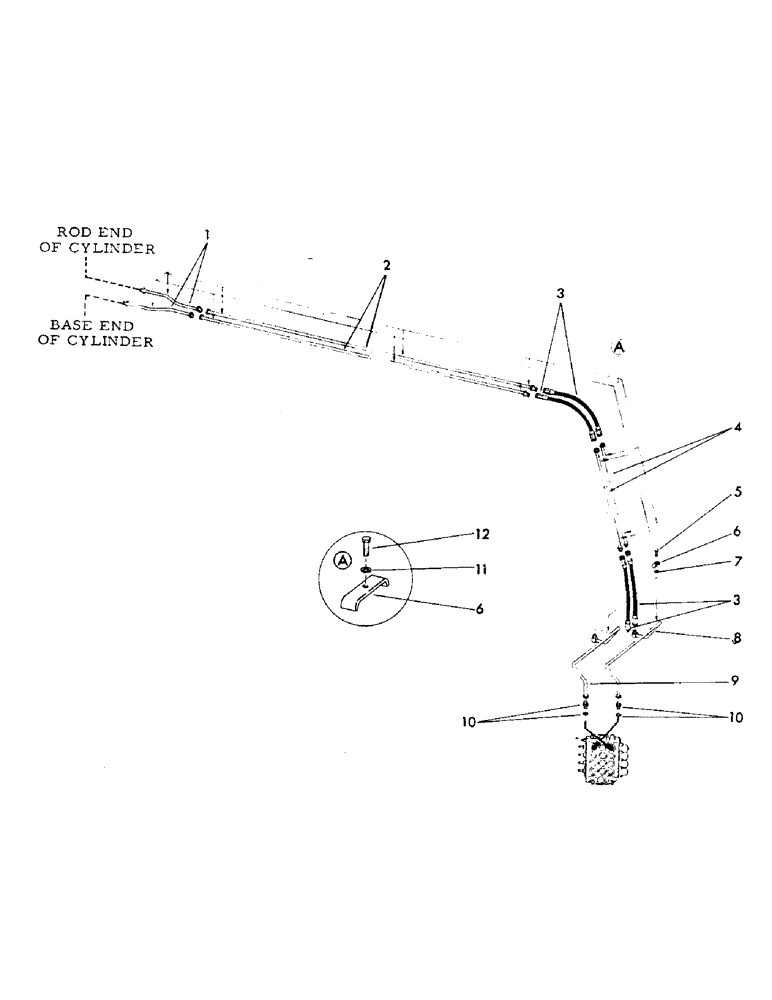

Запчасти Case 40EC (G07) - VALVE TO TOOL CYLINDER AND RETURN FOR "E" BOOM, (USED ON (07) - HYDRAULIC SYSTEM

1

39046

LINE, hydraulic

2шт.

2

208810

LINE, hydraulic

2шт.

3

8628

HOSE, high pressure - 1" ID x 36" long (With pressed on couplings)

4шт.

4

208811

LINE, hydraulic

2шт.

5

2473

BOLT

- 1/2" x 3" NC grade 5

2шт.

6

46397

PIPE CLAMP

CLAMP, tube

14шт.

7

17169

NUT, self locking - 1/2" NC

2шт.

8

39053

LINE, hydraulic - to tool valve section spool end - (Used on units with serial number 1 thru 899)

1шт.

502080

MANIFOLD

LINE, hydraulic - to outside valve front port - (Used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.

9

39052

LINE, hydraulic - to tool valve section cap end - (Used on units with serial number 1 thru 899)

1шт.

502081

SPARE PART

LINE, hydraulic - to outside valve rear port - (Used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.

10

7972

JACK

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring)

2шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

2шт.

11

4399

WASHER

LOCKWASHER - 1/2"

12шт.

12

2470

DISC

CPSW - 1/2" x 3" NC grade 5

12шт.

13

VALVE, main - outer - (For breakdown, see section "H") - (Used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.
