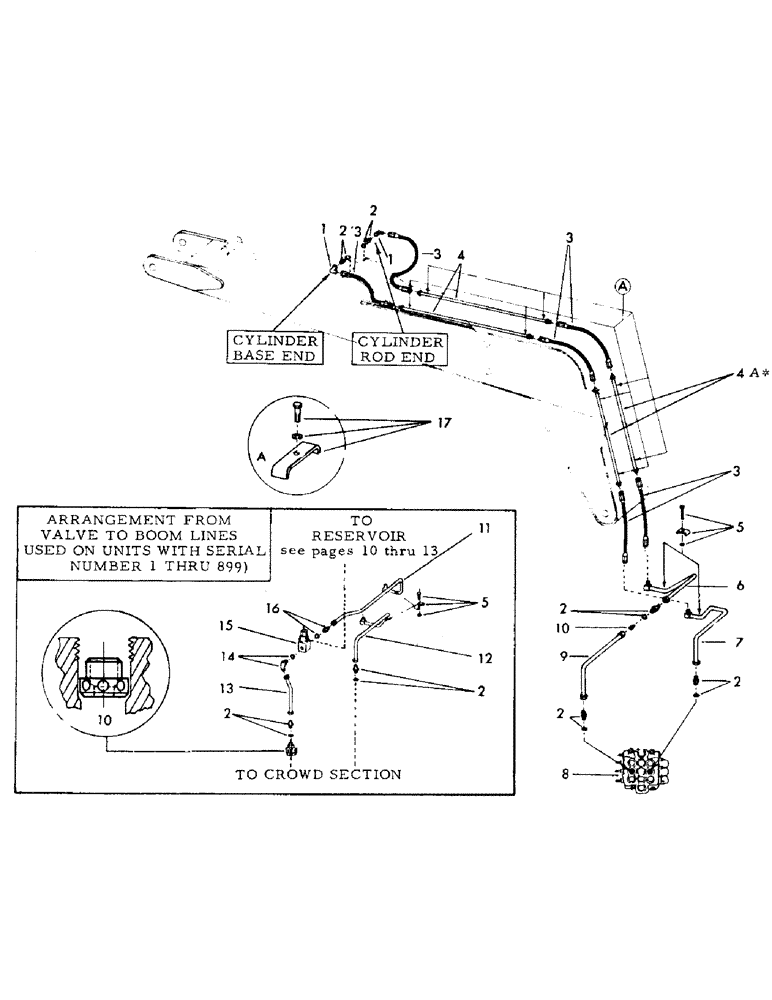

Запчасти Case 40EC (G05) - VALVE TO CROWD CYLINDER AND RETURN FOR "E" BOOM (07) - HYDRAULIC SYSTEM

1

10361

BRACKET

ELBOW, swivel 90 degrees - (1" tube) - 1-5/16"-12 male x 1-5/16"- 12 female - 37 degrees flared

2шт.

2

7972

JACK

CONNECTOR - (1" tube) - 1-5/16"-12 male x 1-5/16"-12 male - 37 degrees flared - (Includes "O" ring) - (Quantity of 4 used on units with serial number 1 thru 899, and quantity of 5 used on units with serial number 900-up)

1шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

1шт.

3

8628

HOSE, high pressure - 1" ID x 36" long - (With 1-5/16"-12 female pressed on couplings)

3шт.

4

208811

LINE, hydraulic

2шт.

Change in listing.

1шт.

4a

208811

LINE, hydraulic - (Used on units with serial number 1 thru 909)

2шт.

Added listing.

1шт.

211850

LINE, hydraulic - (Used on units with serial number 910-up)

2шт.

Added listing.

1шт.

5

46397

PIPE CLAMP

CLAMP, tube

2шт.

2473

BOLT

CPSW - 1/2" x 3" NC grade 5

2шт.

17169

NUT, self locking - 1/2" NC

2шт.

6

502109

SPARE PART

LINE, hydraulic - (Used on units with serial number 900-up)

1шт.

7

502079

PLUG

LINE, hydraulic - (Used on units with serial number 900-up)

1шт.

8

VALVE, main - inner - (For breakdown, see section "H") - (Used on units with serial number 900-up)

1шт.

9

502078

SUPPORT

LINE, hydraulic - (Used on units with serial umber 900-up)

1шт.

10

79252

REGULATOR, flow

1шт.

11

39048

LINE, hydraulic - (Used on units with serial number 1 thru 899)

1шт.

Added listing.

1шт.

12

39054

LINE, hydraulic - (Used on units with serial number 1 thru 899)

1шт.

13

39051

LINE, hydraulic - (Used on units with serial number 1 thru 899)

1шт.

14

7943

ELBOW, 90 degrees - adjustable - (1" tube) - 1-5/16"-12 male x 1-5/16"-12 male - 37 degrees flared - (Includes "O" ring) - (Used on units with serial 1 thru 899)

1шт.

15

VALVE, inline relief - (For breakdown, see section "H") - (Used on units with serial number 1 thru 899)

1шт.

16

7984

COVER

CONNECTOR - (1" tube) - 1-5/16"-12 male x 1-5/8"-12 male - 37 degrees flared - (Includes "O" ring) - (Used on units with serial number 1 thru 899)

1шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

1шт.

17

46397

PIPE CLAMP

CLAMP, tube

8шт.

2470

DISC

CPSW - 1/2" x 1-1/4" NC grade 5

8шт.

4399

WASHER

LOCKWASHER - 1/2"

8шт.

18

211849

LINE, hydraulic - (Used on units with serial number 910-up)

2шт.
