Запчасти Case 40EC (F24) - "E" BOOM HYDRAULICS FOR TREE LENGTH WOOD AND PULPWOOD CLAMS, (07) - HYDRAULIC SYSTEM

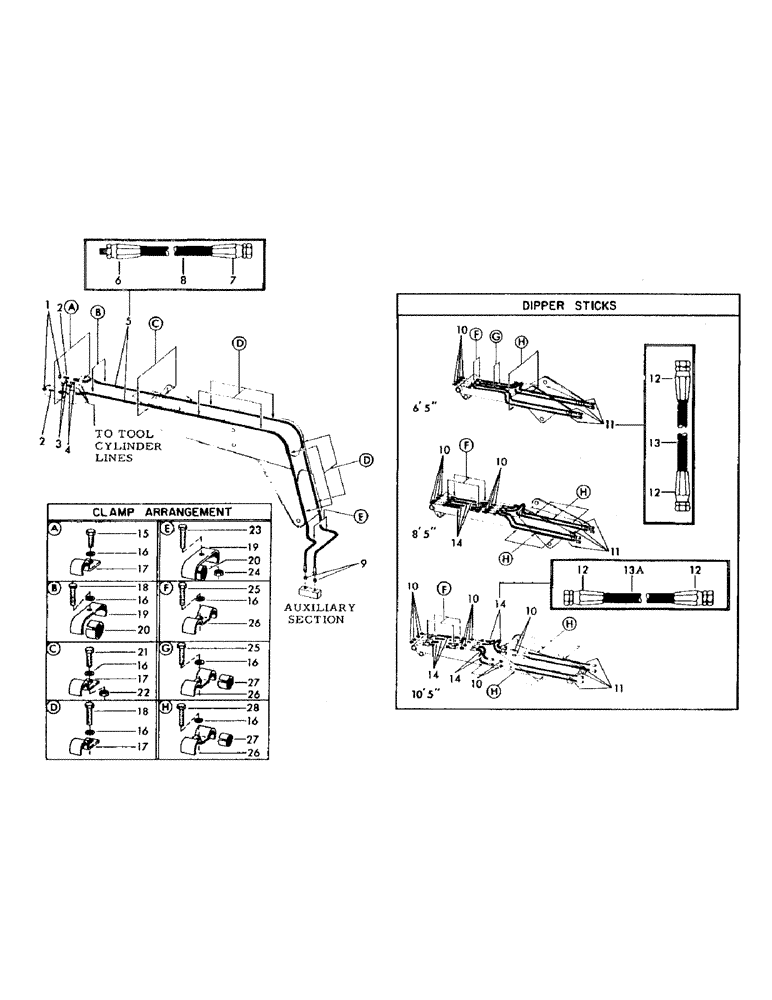

Схема запчастей Case 40EC - (F24) - "E" BOOM HYDRAULICS FOR TREE LENGTH WOOD AND PULPWOOD CLAMS, (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6277

O-RING

NUT, sleeve - 1-1/16"

2шт.

2

101833

ADAPTER, reducing - 3/4" x 1/2" reduction - 3/4" JIC thread

2шт.

3

6279

NUT, sleeve - 1-5/16"

2шт.

4

101832

ADAPTER, reducing - 1" x 3/4" reduction 1-1/16" JIC thread

2шт.

5

75824

PISTON PIN

HOSE, high pressure - 3/4" ID x 28' long (Consists of items 6 thru 8)

2шт.

6

60037

COUPLING, reusable - 1-1/16" JIC male thread

2шт.

7

11094

COUPLING, reusable - 1-1/16" JIC female thread

2шт.

8

28463

HOSE, high pressure - 3/4" ID x 27' 10" long

2шт.

9

7969

HYDRAULIC HOSE

CONNECTOR, flared - 1-5/16" male x 1-1/16" male (Includes "O" ring)

2шт.

6069

O-RING

"O" RING - 1-11/16" ID x 1-13/32" OD

2шт.

10

101334

BRACKET

UNION, flared - 3/4" male x 3/4" male (For 6' 5")

4шт.

NLS

NO LONGER SERVICED

UNION, flared - 3/4" male x 3/4" male (For 8' 5")

8шт.

101334

BRACKET

UNION, flared - 3/4" male x 3/4" male (For 10' 5")

12шт.

11

11234

ROLLER BEARING

HOSE, high pressure - 3/8" ID x 7' 2-1/2" long (Consists of items 12 and 13)

4шт.

12

11091

COUPLING, reusable - 3/4" JIC female thread (For 6' 5")

8шт.

11091

COUPLING, reusable - 3/4" JIC female thread (Fro 8' 5")

16шт.

11091

COUPLING, reusable - 3/4" JIC female thread (For 10' 5")

24шт.

13

28465

HOSE, high pressure - 3/8" ID x 7' 1/2" long (Bulk)

4шт.

13a

28465

HOSE, high pressure - 3/8" ID x 24" long (Bulk) (For 8' 5")

4шт.

28465

HOSE, high pressure - 3/8" ID x 24" long (Bulk) (For 10' 5")

8шт.

14

11236

HOSE, high pressure - 3/8" ID x 26" long (Consists of items 12 and 13A) (For 8' 5")

4шт.

11236

HOSE, high pressure - 3/8" ID x 26" long (Consists of items 12 and 13A) (For 10' 5")

8шт.

15

2464

CPSW - 1/2" x 3/4" NC gr. 5

2шт.

16

4399

WASHER

LOCKWASHER - 1/2" (For 6' 5")

20шт.

4399

WASHER

LOCKWASHER 1/2" (For 8' 5" and 10' 5")

24шт.

17

75850

ENGINE FLYWHEEL

CLAMP, hose

12шт.

18

2470

DISC

CPSW - 1/2" x 2-1/4" NC gr. 5

10шт.

19

46397

PIPE CLAMP

CLAMP, hose

4шт.

20

75794

BOWL

RING, compression - 3/4"

4шт.

21

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC gr. 5

2шт.

22

4224

NUT - 1/2" NC

2шт.

23

2473

BOLT

CPSW - 1/2" x 3" NC gr. 5

2шт.

24

17169

NUT, self locking - 1/2" NC

2шт.

25

2469

CPSW - 1/2" x 2" NC gr. 5

4шт.

26

208409

CLAMP, hose (For 6' 5")

6шт.

208409

CLAMP, hose (For 8' 5" and 10' 5")

10шт.

27

75792

COVER

RING, compression - 3/8" (For 6' 5")

2шт.

75792

COVER

RING, copmression - 3/8" (For 8' 5" and 10' 5")

6шт.

28

2467

CPSW - 1/2" x 1-1/2" NC gr. 5 (For 6' 5")

2шт.

2467

CPSW - 1/2" x 1-1/2" NC gr. 5 (For 8' 5" and 10' 5")

6шт.

Выбрано товаров: 40
