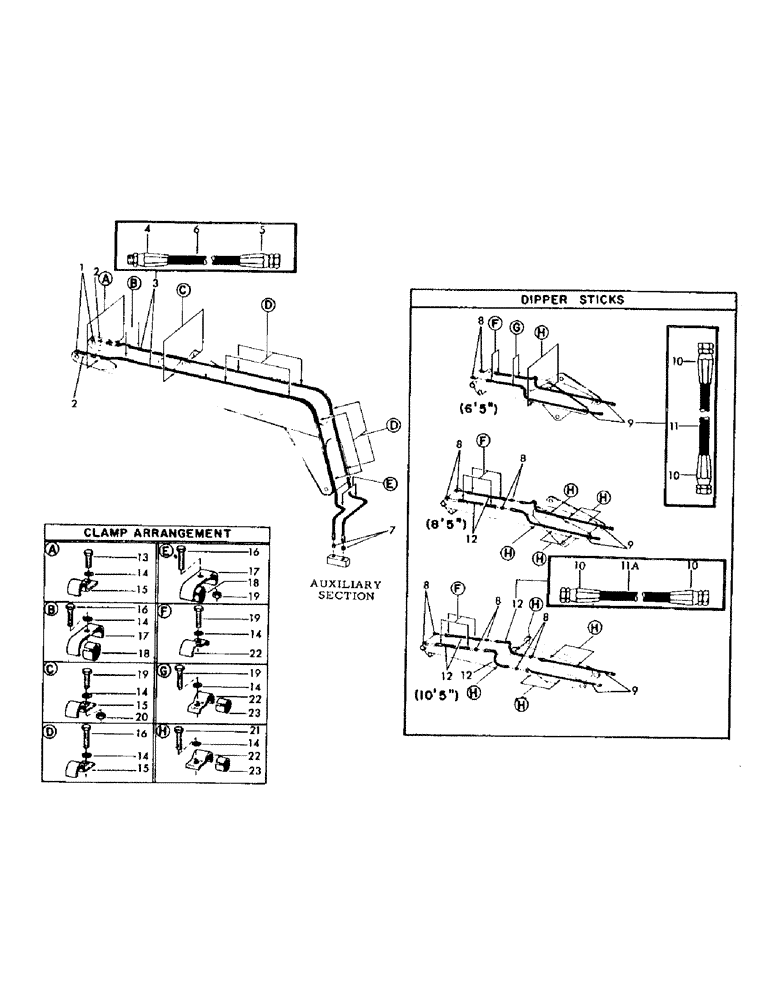

Запчасти Case 40EC (F12) - "E" BOOM HYDRAULICS FOR WRIST-O-TWIST, 6 FOOT, 8 FOOT AND 10 (07) - HYDRAULIC SYSTEM

1

6277

O-RING

NUT, sleeve - 1-1/16"

2шт.

2

101833

ADAPTER, reducing - 3/4" x 1/2" reduction

2шт.

3

75824

PISTON PIN

HOSE, high pressure - 3/4" ID x 28' long (Consists of items 4 thru 6)

2шт.

4

60037

COUPLING, reusable - 1-1/16" JIC male thread

2шт.

5

11094

COUPLING, reusable - 1-1/16" JIC female thread

2шт.

6

28463

HOSE, high pressure - 3/4" ID x 27' 10" long (Bulk)

2шт.

7

7969

HYDRAULIC HOSE

CONNECTOR, flared - 1-5/16" male x 1-1/16" male (Includes "O" ring)

2шт.

6069

O-RING

"O" RING - 1-11/16" ID x 1-13/32" OD

2шт.

8

101334

BRACKET

UNION, flared - 3/4" male x 3/4" male (For 6 foot)

2шт.

NLS

NO LONGER SERVICED

UNION, flared - 3/4" male x 3/4" male (For 8 foot)

4шт.

NLS

NO LONGER SERVICED

UNION, flared - 3/4" male x 3/4" male (For 10 foot)

6шт.

9

11234

ROLLER BEARING

HOSE, high pressure - 3/8" ID x 7' 2-1/2" long (Consists of items 10 and 11)

2шт.

10

11091

COUPLING, reusable - 3/4" JIC female thread (For 6 foot)

4шт.

11091

COUPLING, reusable - 3/4" JIC female thread (For 8 foot)

8шт.

11091

COUPLING, reusable - 3/4" JIC female thread (For 10 foot)

12шт.

11

28465

HOSE, high pressure - 3/8" ID x 7' 1/2" long (Bulk)

2шт.

11a

28465

HOSE, high pressure - 3/8" ID x 24" long (Bulk) (For 8 foot)

2шт.

28465

HOSE, high pressure - 3/8" ID x 24" long (Bulk) (For 10 foot)

4шт.

12

11236

HOSE, high pressure - 3/8" ID x 26" long (Consists of items 10 and 11A) (For 8 foot)

2шт.

11236

HOSE, high pressure - 3/8" ID x 26" long (Consists of items 10 and 11A) (For 10 foot)

4шт.

13

2464

CPSW - 1/2" x 3/4" NC gr. 5

2шт.

14

4399

WASHER

LOCKWASHER - 1/2" (For 6 foot)

20шт.

4399

WASHER

LOCKWASHER - 1/2" (For 8 foot and 10 foot)

24шт.

15

75850

ENGINE FLYWHEEL

CLAMP, hose

12шт.

16

2470

DISC

CPSW - 1/2" x 2-1/4" NC gr. 5

10шт.

17

46397

PIPE CLAMP

CLAMP, hose

4шт.

18

75794

BOWL

RING, compression - 3/4"

4шт.

19

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC gr. 5 (For 6 foot)

6шт.

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC gr. 5 (For 8 foot and 10 foot)

8шт.

20

4224

NUT - 1/2" NC

2шт.

21

2473

BOLT

CPSW - 1/2" x 3" NC gr. 5 (For 6 foot)

4шт.

2473

BOLT

CPSW - 1/2" x 3" NC gr. 5 (For 8 foot and 10 foot)

6шт.

22

77324

CLAMP, hose (For 6 foot)

6шт.

77324

CLAMP, hose (For 8 foot and 10 foot)

10шт.

23

75792

COVER

RING, compression - 3/8" (For 6 foot)

4шт.

75792

COVER

RING, compression - 3/8" (For 8 foot and 10 foot)

6шт.
