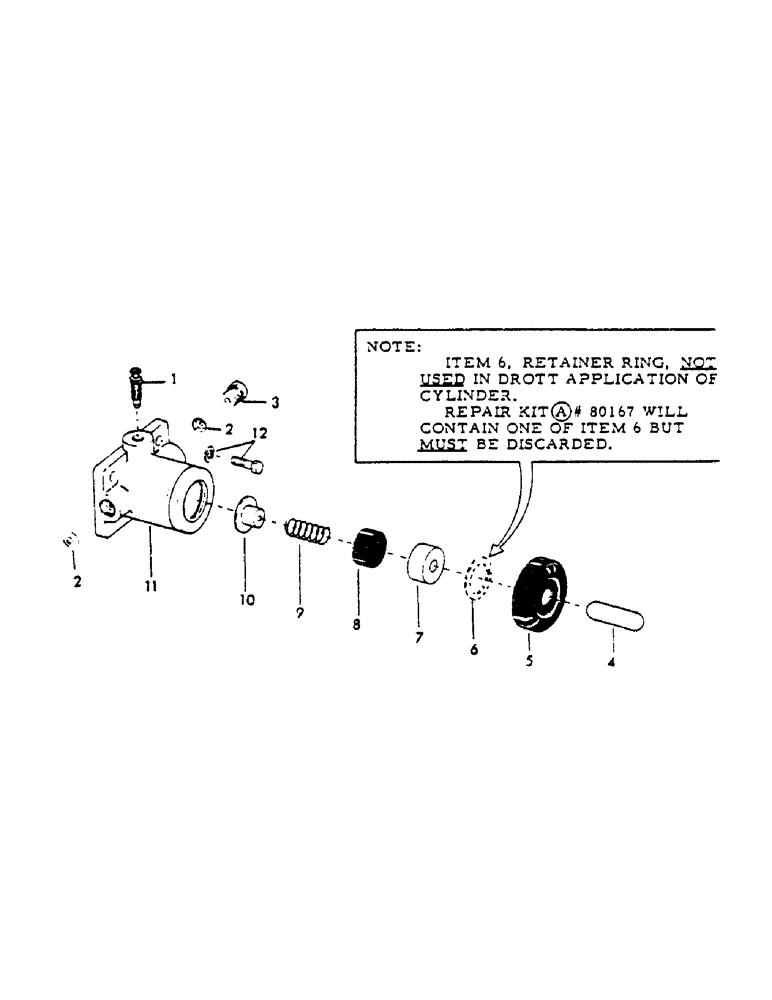

Запчасти Case 40EC (E07) - TRACK BRAKE CYLINDER, (USED ON UNITS WITH SERIAL NUMBER (07) - HYDRAULIC SYSTEM

S209804

CYLINDER

track brake - complete (Consists of items 1 thru 11)

2шт.

1

SCREW, bleeder

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

2

INSERT - 1/4" tube seat

2шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

3

PLUG - 1/4" tube seat

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

4

NSS

NOT SOLD SEPARAT

ROD, push

1шт.

5

BOOT

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

6

RING, retainer (In #S80167 kit - do not use)

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

7

PISTON

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

8

CUP

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

9

SPRING, return

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

10

NSS

NOT SOLD SEPARAT

STOP, spring

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" gr. 5

2шт.

S4395

WASHER, LOCK

- 1/4"

2шт.

S80167

PACKAGE,SERVICE

KIT, serivce - (Consists of items 1 thru 3 and 5 thru 9)

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.
