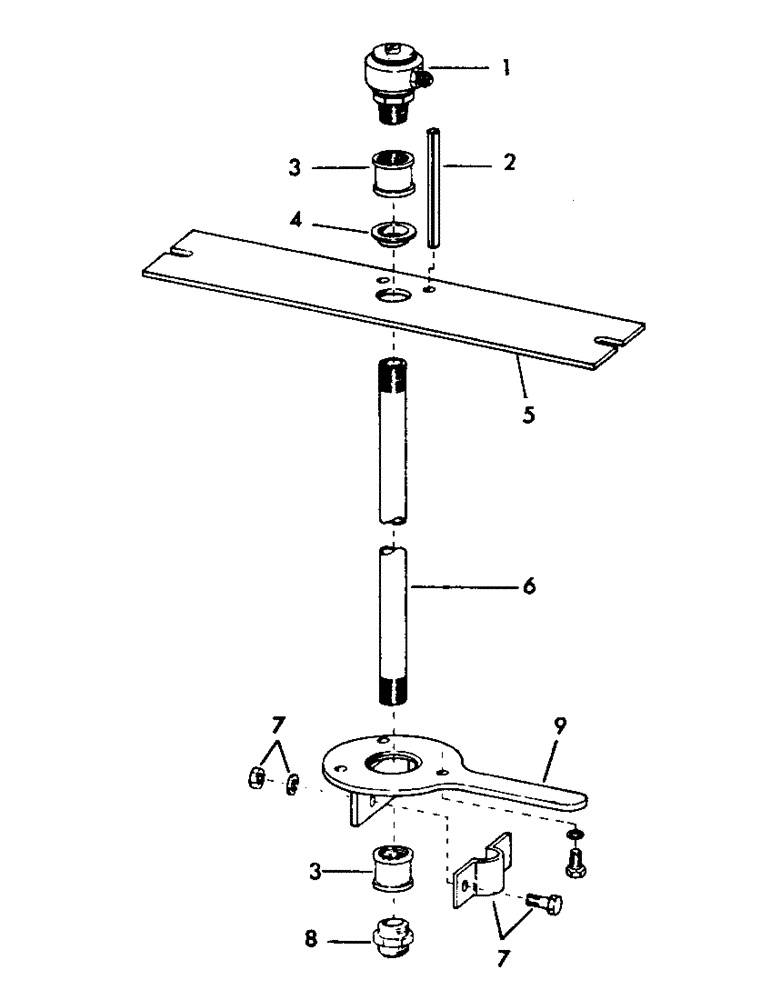

Запчасти Case 40EC (E04) - INNER BRAKE SWIVEL, (TRACK) (07) - HYDRAULIC SYSTEM

39517

SWIVEL, inner brake (Consists of items 1 thru 8)

1шт.

1

209351

SWIVEL, track brake (For break down, see page 5)

1шт.

2

5467

PIN, roll - 5/16" x 4" long

2шт.

3

17706

COUPLING - 1/4" NPT

2шт.

4

71802

BEARING, nylon

1шт.

5

209352

PLATE, guide (Includes items 2 and 4)

1шт.

6

79230

PLATE - 1/4" x 24.25" long

1шт.

7

48542

CLAMP

1шт.

2425

PLOW BOLT,#3, 1/2" - 13 x 3 1/2", Gr 5

CPSW - 3/8" x 1-3/8" NC gr. 5

2шт.

4397

LOCKWASHER - 3/8"

2шт.

4222

NUT - 3/8" NC

2шт.

8

101303

ADAPTER, flared - 7/16" male x 1/4" NPT male

1шт.

9

209353

PLATE, lower swivel mounting

1шт.

2376

CPSW - 5/16" x 1" NC gr. 5

3шт.

4396

LOCKWASHER - 5/16"

3шт.
