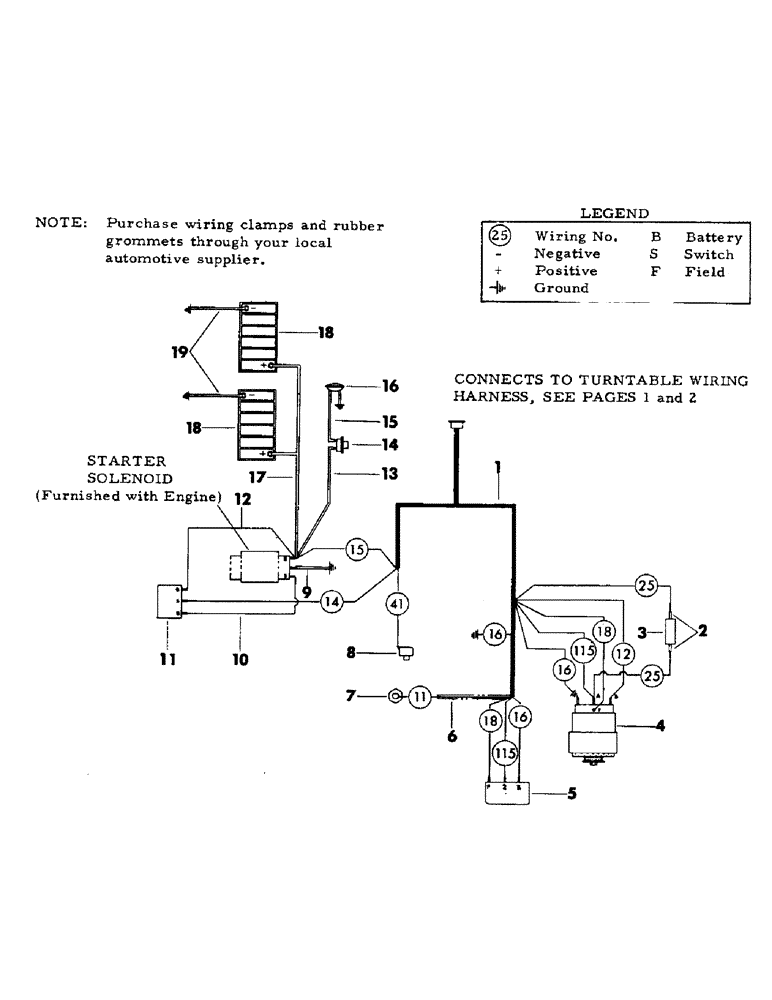

Запчасти Case 40EC (I04A) - ENGINE WIRING HARNESS FOR: CASE 504BD DIESEL ENGINES (06) - ELECTRICAL SYSTEMS

1

S600770

WIRING HARNESS, engine

1шт.

2

S75983

ROD, CONNECTING

COVER, plastic terminal end

2шт.

3

S86256

RESISTOR

1шт.

S2351

BOLT

CPSW - 1/4" NC x 1" grade 5

1шт.

S7377

WASHER

flat - 1/4"

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

4

S86254

ALTERNATOR

- 12 volt, 68 AMP

1шт.

S64612

BOOT

rubber, Used on battery post of alternator

1шт.

S214420

PULLEY, alternator

1шт.

5

S214461

VOLTAGE REGULATOR

REGULATOR, voltage

1шт.

S2351

BOLT

CPSW - 1/4" NC x 1" grade 5

3шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

3шт.

6

S62256

LOOM

Bulk, 1 piece 25" long

1шт.

7

S27825M1

X

SENDING UNIT, engine temparature

1шт.

8

S27826M1

X

SENDING UNIT, oil pressure

1шт.

S7838

FITTING

NIPPLE - 1/8" NPT x 3/4" long, Into engine block

1шт.

9

S81455

STRAP

WIRE, ground - 4 gauge x 14" long

1шт.

10

S216021

WIRE, jumper - 12 gauge x 26" long

1шт.

11

S26663M1

X

RELAY

1шт.

S2385

BOLT

CPSW - 5/16" NC x 1/2" grade 5

2шт.

S4396

WASHER, LOCK

- 5/16"

2шт.

12

S216022

WIRE, jumper - 12 gauge x 26" long

1шт.

13

S211654

WIRE, jumper - 12 gauge x 14" long

1шт.

S62256

LOOM

(Bulk) - 1 piece 13" long, Protects jumper wire

1шт.

14

S64884

SWITCH, pressure

1шт.

15

S215075

WIRE, jumper - 14 gauge x 84" long

1шт.

16

S213391M1

HOURMETER

METER, hour, Mounts to damper, see electrical mounting brackets on figure I-5

1шт.

Change in listing.

1шт.

17

S212587

CABLE, battery

1шт.

18

BATTERY - 12 volt, Purchase at your local dealer

2шт.

19

S45608

STRAP

-, Serial Range: battery-ground

2шт.
