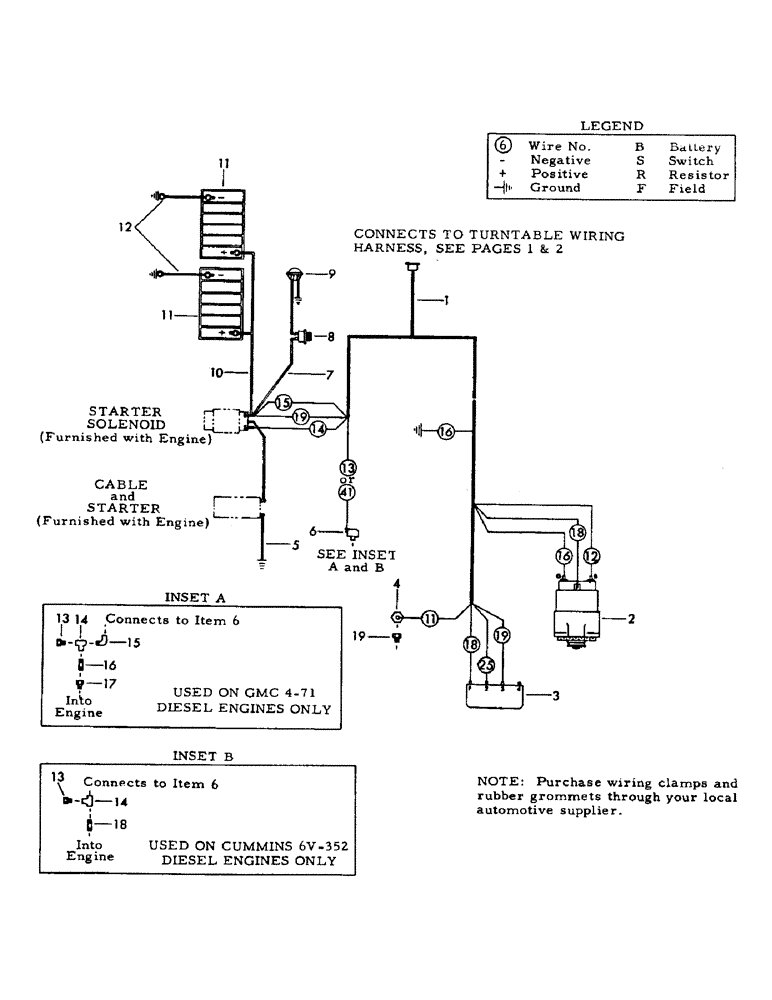

Запчасти Case 40EC (I03) - ENGINE WIRING HARNESS FOR:, GMC 4-53, GMC 4-71, AC 2900 (06) - ELECTRICAL SYSTEMS

1

56178

WIRING HARNESS, engine - used on GMC 453 and AC 2900 diesel engines

1шт.

502310

WIRING HARNESS, engine - used on GMC 471 diesel engines

CUSHION

1шт.

57203

WIRING HARNESS, engine - used Perkins 6-354 diesel engines

1шт.

58756

WIRING HARNESS, engine - used on Cummins 6V-352 diesel engines

1шт.

2

ALTERNATOR - 12 volt, 55 AMP, Delco-Remy #1100690, negative ground and counter-clockwise rotation (Purchase locally)

1шт.

17276

NUT, alternator - #10 NF

1шт.

7480

LOCKWASHER - #10

1шт.

17277

NUT, alternator - #12 NF

1шт.

7481

LOCKWASHER - #12

1шт.

64612

SHIM,0.012" Thk

0.12" Thk, Boot, Alternator - Used on battery post of alternator

1шт.

32921

FAN, alternator

1шт.

66878

TUBE

PULLEY, alternator - used on GMC 4-53 diesel engines

1шт.

62938

PULLEY, alternator - used on GMC 4-71 diesel engines

1шт.

3

REGULATOR, voltage - 12 volt, 42 amp, Delco-Remy #1119513 and negative ground battery (Purchase locally)

1шт.

2350

STOP

CPSW - 1/4" x 3/4" NC gr. 5

2шт.

4395

WASHER

LOCKWASHER - 1/4"

2шт.

4220

TOOL

NUT - 1/4" NC

2шт.

4

27825M1

SENDING UNIT, engine temparautre - Stewart Warner #362-X

1шт.

5

81455

CABLE, Serial Range: starter-ground

1шт.

6

27826M2

SENDING UNIT, oil pressure - Stewart Warner #353-Z

1шт.

7

WIRE, jumper - 12 gauge wire 14" long

1шт.

8

63884

FILE

SWITCH, pressure - Hobbs #M1-672

1шт.

7880

BUSHING, reducer - 3/8" NPT male x 1/8" NPT female (Used on Perkins 6-354 diesel engines only)

1шт.

9

27830M1

HOURMETER - Hobbs #3606 (Furnished with wires)

1шт.

10

210385

CABLE, battery to starter solenoid

1шт.

11

BATTERY, dry - 12 volt (Purchase at your local dealer)

2шт.

12

45608

ROLL PIN

CABLE, Serial Range: battery-ground

2шт.

7387

LOCTITE

WASHER, flat - 13/32"

2шт.

13

15161

PLUG, pipe - 1/4" NPT

1шт.

14

17977

TEE - 1/8" NPT female x 1/8" female x 1/8" NPT female

1шт.

15

17523

ELBOW, 90 degrees - 1/8" NPT male x 1/8" NPT female

1шт.

16

7839

NIPPLE, LUBE

NIPPLE - 1/8" NPT x 1-1/2" long

1шт.

17

17550

HYDRAULIC VALVE

BUSHING, reducer - 1/4" NPT male x 1/8" NPT female

1шт.

18

83347

NIPPLE - 1/8" NPT x 3" long

1шт.

19

62664

ADAPTER - 3/8" NPT male x 1/2" NPT female (Used on Cummins 6V-352 diesel engines)

1шт.
