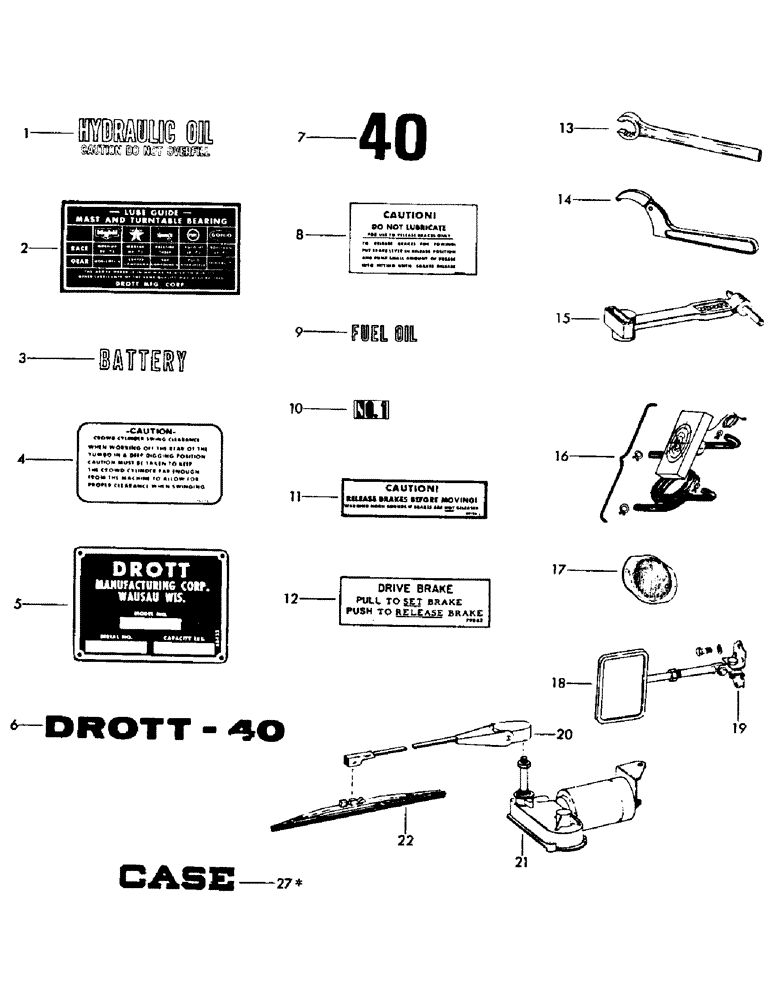

Запчасти Case 40EC (J01) - ACCESSORIES, GRAPHIC PRODUCTS AND SERVICE TOOLS (05) - UPPERSTRUCTURE CHASSIS

1

80209

BELT

DECAL, warning - for hydraulic oil

1шт.

2

77968

DECAL, lube guide

1шт.

3

29611

LINE

DECAL, battery

1шт.

4

75374M1

DECAL, crowd cylinder swing - for units with "Y" boom only

1шт.

5

68433

PLATE, identification

1шт.

23395

PIPE

SCREW, drive - #7 x 5/16" NC

4шт.

6

56688

SCREW

DECAL, Drott - 40 - for boom

2шт.

7

36811

ELECTRIC CABLE

DECAL, 40 - for shroud for (11-1/4" high)

1шт.

8

80124

NUT

DECAL, caution

1шт.

9

70192

DECAL, fuel oil - used with GMC diesel engines only

1шт.

10

71631

DECAL, "No. 1" - for fuel oil

1шт.

11

80123

DECAL, caution

1шт.

12

79862

PULLEY

DECAL, drive brake

1шт.

13

206800

WRENCH, tube - 1-1/2"

1шт.

14

26769M1

WRENCH, spanner - fits cylinders 6-3/4" thru 8-3/4"

1шт.

15

204646

TOOL, bucket tooth tip

1шт.

16

32169

GEAR

HEATER, hot water - Huppower Div. model 455-12 volt (Includes core, hoses and clamps)

1шт.

17165

CAP ASSY.

NUT, self locking - 1/4" NC (Mounts, Serial Range: heater-cab)

2шт.

17

70502

REFLECOTR, amber - front

2шт.

65115

HOLDER

REFLECTOR, red - rear

2шт.

18

205317

HEAD, rear view mirror

1шт.

19

207875

BRACKET, mirror

1шт.

40799M1

SCREW, mirror moumnting

2шт.

20

16864

ARM, adjustable wiper - American Bosch Arma #LE-726

1шт.

21

75867

HOUSING

MOTOR, windshield wiper - American Bosch Arma #WWF12A-19-210

1шт.

22

73383

LID

BLADE, wiper - American Bosch Arma #BD-726

1шт.

23

209414

FAN, reversible - Huber fan #GH1828 - (Used on GMC 4-53 diesel engine) - for cold and warm weather operation (Not illustrated)

1шт.

2375

CPSW - 5/16" x 3/4" NC grade 5 (Mounts, Serial Range: 209414-engine)

4шт.

82705

FAN, reversible - Huber fan #GH7790 - (Used with GMC 4-71 diesel engine) - for cold and warm weather operation - (Not illustrated)

1шт.

3505

FILTER, ENGINE OIL

CPSW - 3/8" x 1-1/4" NC - (Mounts, Serial Range: 82705-engine)

6шт.

4396

LOCKWASHER - 3/8" - used with 3505

6шт.

82760

FAN, reversible - Huber fan #206-354 - (Used with Perkins 6-354 diesel engine) for cold and warm weather operation (Not illustrated)

1шт.

83147

FAN, reversible - Huber fan #GH1566 - (Used with Cummins diesel engine) - for cold and warm weather operation (Not illustrated)

1шт.

7344

WASHER, star - used with 83147

6шт.

76338

SPROCKET

BOLTS - 3/8" x 1-1/4" NC grade 5 - (Mounts, Serial Range: 83147-engine)

6шт.

S2375

BOLT

CPSW - 5/16 NC x 3/4" grade 5 - (Mounts, Serial Range: S209414-engine)

4шт.

Change in listing.

1шт.

24

209032

FAN, pusher - (Used with Ford V-8 gasoline engines only for cold weather operations) (Not illustrated)

1шт.

25

37790

KIT, cold weather starting - (Used on GMC 4-53 diesel engines only) - (Not illustrated)

1шт.

26

82529

DECAL, swing - (For showing PSI setting when swinging left or right)

1шт.

82719

CPSW - decal mounting

2шт.

27

212671

BLOWER

DECAL - (J.I. Case)

1шт.

28

206680

KIT, test gauge - (Includes Refs. 29 thru 31) (Not illustrated) (Used to test hydraulic pressure on units in the field)

1шт.

29

206606

GAUGE, pressure test - 5000 lbs (Marsh type 5 with snubber direct mounted)

1шт.

30

206609

CAP, dust - Hansen SDC-2-HK

1шт.

31

206610

SOCKET, two way shut off - Hansen 2H16 series 3-HK

1шт.

32

S504229

DECAL, feller/buncher operation

1шт.

Added listing.

1шт.

33

S87964

DECAL - (Clean-out) - used with feller/buncher

2шт.

Added listing.

1шт.

34

S216990

DECAL

pillow block gathering

1шт.

Added listing.

1шт.
