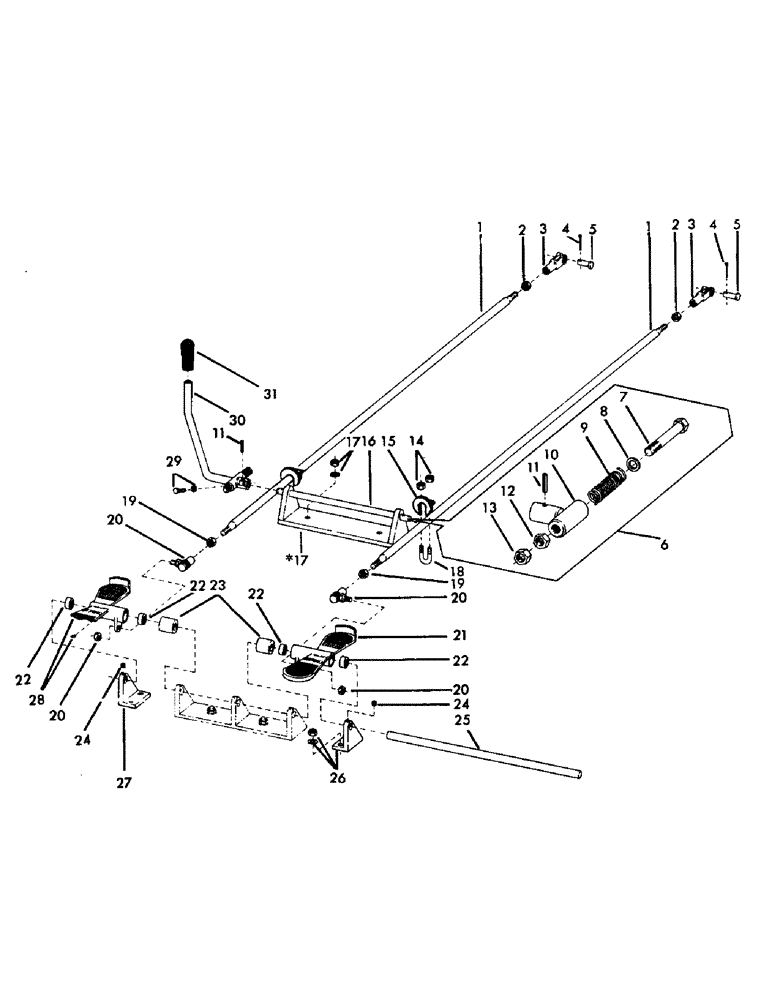

Запчасти Case 40EC (E10) - TRACK CONTROLS WITH DETENT, (FOR ALL UNITS) (05) - UPPERSTRUCTURE CHASSIS

1

206005

SHOCK ABSORBER

ROD, connecting - (Used on units with serial number 1 thru 899)

2шт.

201577

SPARE PART

ROD, connecting - (Used on units with serial number 900-up)

2шт.

2

4245

SEAL KIT

NUT, jam - 1/2" NF - (Used on units with serial number 1 thru 899)

2шт.

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF - (Used on units with serial number 900-up)

2шт.

3

12513

SNAP RING,M70, Ext

YOKE - (Used on units with serial number 1 thru 899)

2шт.

12514

CIRCLIP

YOKE - (Used on units with serial number 900-up)

2шт.

4

4627

COTTER PIN

PIN, coter - 1/8" x 1" long - (Used on units with serial number 1 thru 899)

2шт.

4640

CHECK VALVE

PIN, cotter - 5/32" x 3/4" long - (Used on units with serial number 900-up)

2шт.

5

10807

PIN, clevis - 1/2" x 1.188" grip length - (Used on units with serial number 1 thru 899)

2шт.

NLS

NO LONGER SERVICED

PIN, clevis - 3/8" x 1.016" grip length - (Used on units with serial number 900-up)

2шт.

6

206012

HOUSING, crawler detent - (Consists of 1 of items 7 thru 10 and 12 and 13)

1шт.

Added listing.

1шт.

7

2051

CPSW - 3/8" x 3-1/2" NF gr. 5

2шт.

8

7385

WASHER, flat - 3/8"

2шт.

9

13700

HOSE

SPRING

2шт.

10

206012

HOUSING, detent

1шт.

11

5388

SPROCKET

PIN, roll - 15/64" diameter x 1-1/4" long

2шт.

12

17153

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

NUT, self locking - 3/8" NF

2шт.

13

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF

2шт.

14

17167

LOCK NUT

NUT, self locking - 3/8" NF

4шт.

15

211668

STOP

2шт.

16

71885

SHAFT, detent handle

1шт.

17

206001

BRACKET, detent

1шт.

7389

WASHER, flat - 7/16"

2шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

2шт.

18

63280

"U" BOLT

2шт.

19

4245

SEAL KIT

NUT, jam - 1/2" NF

2шт.

20

26213

CLIP

BALL JOINT

2шт.

17155

NUT

self locking - 1/2" NF

2шт.

21

52584

PLATE

PEDAL, crawler - left hand - (Includes grease fitting) - (Used on units with serial number 1 thru 899)

1шт.

58300

PEDAL, crawler - left hand - (Includes grease fitting) - (Used on units with serial number 900-up)

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

22

63168

BEARING, needle

4шт.

Change in listing.

1шт.

23

63283

DRIVING GEAR

SPACER, pedal

2шт.

24

14045

DUST CAP

SCREW, set - 5/16" x 5/16" NC

2шт.

25

75354

CONTROL

SHAFT, pedal

1шт.

26

201568

BRACKET, pedal mounting - left hand

1шт.

7389

WASHER, flat - 7/16"

2шт.

17167

LOCK NUT

NUT, self locking - 3/8"

2шт.

27

201567

HYDRAULIC CYLINDER

BRACKET, pedal mounting - right hand

1шт.

7389

WASHER, flat - 7/16"

2шт.

17167

LOCK NUT

NUT, self locking - 3/8"

2шт.

28

52583

WASHER

PEDAL, crawler - right hand - (Includes grease fitting) - (Used on units with serial number 1 thru 899)

1шт.

58299

PEDAL, crawler - right hand - (Includes grease fitting) - (Used on units with serial number 900-up)

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

29

2043

LAMP

CPSW - 3/8" x 1-1/2" NF grade 5

1шт.

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF

1шт.

30

36435

SPINDLE

HANDLE, detent contrtol - (Includes Refs. 7 thru 9 and 12 and 13)

1шт.

31

63411

KNOTTER

GRIP, handle

1шт.
