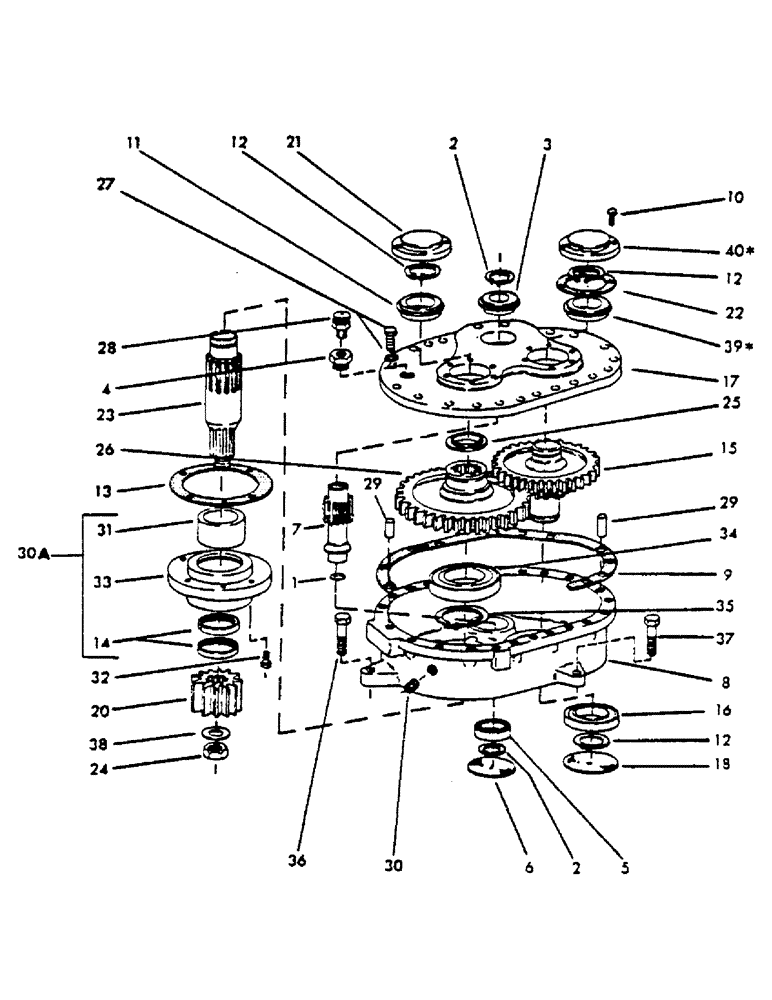

Запчасти Case 40EC (D13) - SWING REDUCER (05) - UPPERSTRUCTURE CHASSIS

S952295

REDUCER

gear - complete (Consist of Refs. 1 thru 35, 39 and 40)

1шт.

Change in listing.

1шт.

1

S81286

PLUG

expansion

1шт.

2

S62725

RING

retaining

2шт.

3

S64312

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, ball

1шт.

4

S7780

BUSHING

REDUCER, pipe ring - 3/8" NPT male x 1/8" NPT female

1шт.

5

S64313

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

6

S64328

PLUG

expansion

1шт.

7

S37176

PINION

AND SHAFT, input

1шт.

Change in listing.

1шт.

8

S55373M4

CASE, gear

1шт.

Change in listing.

1шт.

9

S96077

SEAL

- 10cc bottle - (Red) - (Substitutes must not be used) (Replaces gear cover gasket)

1шт.

Change in listing.

1шт.

10

S16475

CAPSCREW

CPSW - 5/16" NC x 1" grade 8

12шт.

Change in listing.

1шт.

11

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING, ball - (Used on units with serial number 1 - 1122)

1шт.

S85843

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball - (Used on units with serial number 1123-up)

1шт.

12

S62721

RING, SNAP

RING, retaining (Truarc #5100-156)

3шт.

13

S202561

GASKET

mounting flange

1шт.

14

S206136

OIL SEAL

oil

2шт.

15

S601576M1

GEAR, cluster

1шт.

Change in listing.

1шт.

16

S64316

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

1шт.

17

S37588M3

COVER, gear case - (Used on units with serial number 1 - 1122)

1шт.

S503551

COVER

gear case - (Used on units with serial number 1123-up)

1шт.

18

S64317

PLUG

expansion

1шт.

20

S37209M1

PINION, output - (Used on units with serial number 1 - 1122)

1шт.

S502648

PINION

output - (Used on units with serial 1123-up)

1шт.

Change in listing.

1шт.

21

S402194M1

CAP

bearing - (Used on units with serial number 1 - 1122)

1шт.

Change in listing.

1шт.

S214012M1

X

CAP, bearing - (Used on units with serial number 1123-up)

1шт.

Change in listing.

1шт.

22

S85842

GASKET

bearing cup

1шт.

Change in listing.

1шт.

23

S37177

SHAFT

output - (Used on units with serial number 1 - 1122)

1шт.

S504959

SHAFT

output - (Used on units with serial number 1123-up)

1шт.

24

S64448

NUT

self locking

1шт.

25

S206476

SPACER

bearing to gear - (Used on units with serial number 1 - 1122)

1шт.

S214014

SPACER

bearing to gear - (Used on units with serial number 1123- up)

1шт.

26

S601577M1

GEAR, drive

1шт.

Change in listing.

1шт.

27

S73499

BOLT

CPSW - 3/8" NC x 1-1/4" grade 8

23шт.

Change in listing.

1шт.

28

S17478

VENT

breather

1шт.

29

S64319

CALIPER

DOWEL, 3/8" diameter

2шт.

30

S7873

PLUG

- 3/8" NPT - (Socket head)

4шт.

Change in listing.

1шт.

30a

S59406M1

HOUSING - (Includes Refs. 14, 31, and 33)

1шт.

Change in listing.

1шт.

31

S72921M1

BUSHING

1шт.

32

S16906

BOLT

CPSW - 1/2" NC x 1-3/4" grade 8 - (Nylok) - (Special DMC)

6шт.

Change in listing.

1шт.

33

NSS

NOT SOLD SEPARAT

SUPPORT, reducer

1шт.

Change in listing.

1шт.

34

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

BEARING, ball

1шт.

35

S15409

OIL SEAL

RING, retainer

1шт.

36

S2581

SCREW

CPSW - 7/8" NC x 1-3/4" grade 8 - (Reducer mounting)

1шт.

Change in listing.

1шт.

37

S2596

BOLT

CPSW - 7/8" NC x 5-1/2" grade. 8 - (Reducer mounting)

2шт.

Change in listing.

1шт.

38

S83676

SPACER

bottom

1шт.

39

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING, ball

1шт.

40

S402194M1

CAP

bearing

1шт.
