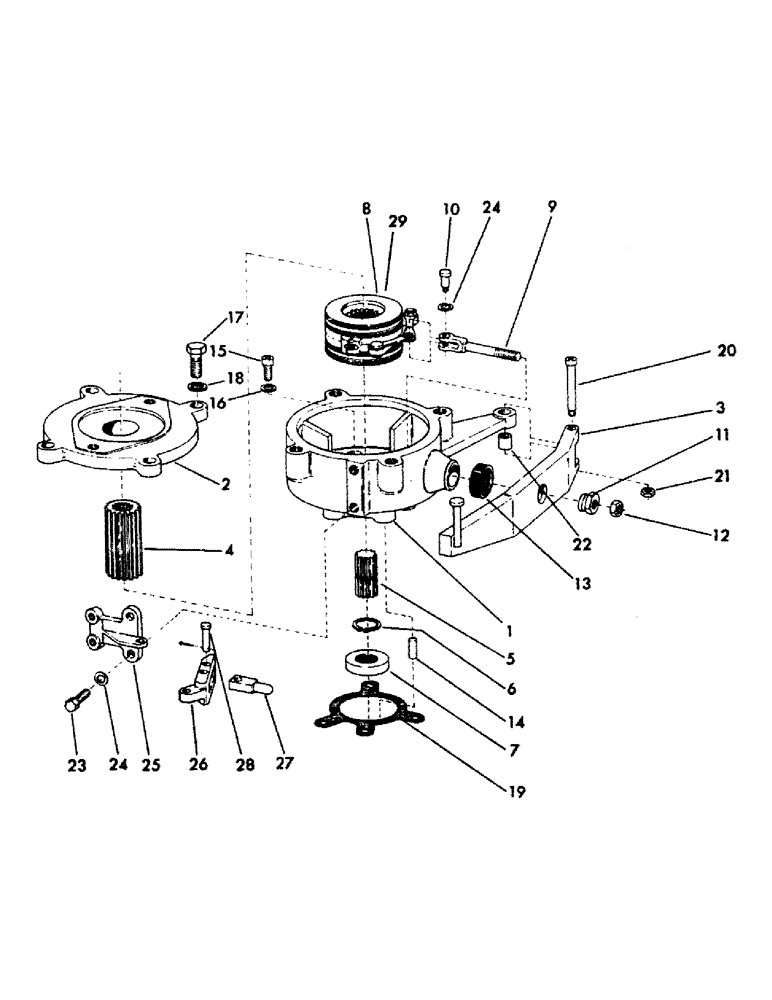

Запчасти Case 40EC (D11) - SWING BRAKE (05) - UPPERSTRUCTURE CHASSIS

S56457M2

BRAKE, swing - complete - (Consists of Refs. 1 thru 29)

1шт.

Change in listing.

1шт.

1

S53226M1

HOUSING, brake

1шт.

Change in listing.

1шт.

2

38006

COVER AND FLANGE, motor mounting

1шт.

3

203304

PISTON ROD

LEVER, brake

1шт.

4

208430M1

COUPLING, splined

1шт.

5

203305

PISTON ROD

STUD, splined

1шт.

6

60206

HEAD

RING, retaining

1шт.

7

64311

IDLER WHEEL

SEAL, oil

1шт.

8

207618M1

BRAKE ASSEMBLY - (Includes Ref. 29)

1шт.

9

64912

YOKE, plain

1шт.

10

66646

BOLT, shoulder

1шт.

11

64911

NUT, ball seat

1шт.

12

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF

1шт.

13

64913

BOOT, dust

1шт.

14

64915

DOWEL

1шт.

15

3518

CPSW - 3/8" x 1" NC grade 5

3шт.

16

103264

WASHER, seal - 3/8"

3шт.

17

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC grade 5

4шт.

18

4399

WASHER

LOCKWASHER - 1/2"

4шт.

19

203309

GASKET

1шт.

20

64920

BAND

SCREW

1шт.

21

9088

SEAL KIT

NUT, lock - 5/16" NC

1шт.

22

64921

HYDRAULIC PUMP

BUSHING

1шт.

23

2400

LAMP

CPSW - 3/8" x 3/4" NC grade 5

2шт.

24

4397

LOCKWASHER - 3/8"

2шт.

25

203957

BRACKET, cable mounting

1шт.

26

203959

LEVER, cable

1шт.

27

64910

WASHER

PLUNGER, cable

1шт.

28

10717

FITTING

PIN, clevis - 1/4" x 1.101" grip length

2шт.

4610

TOY

PIN, cotter - 3/32" x 1/2" long

2шт.

29

81615M1

DISC, brake

1шт.

Added listing.

1шт.
