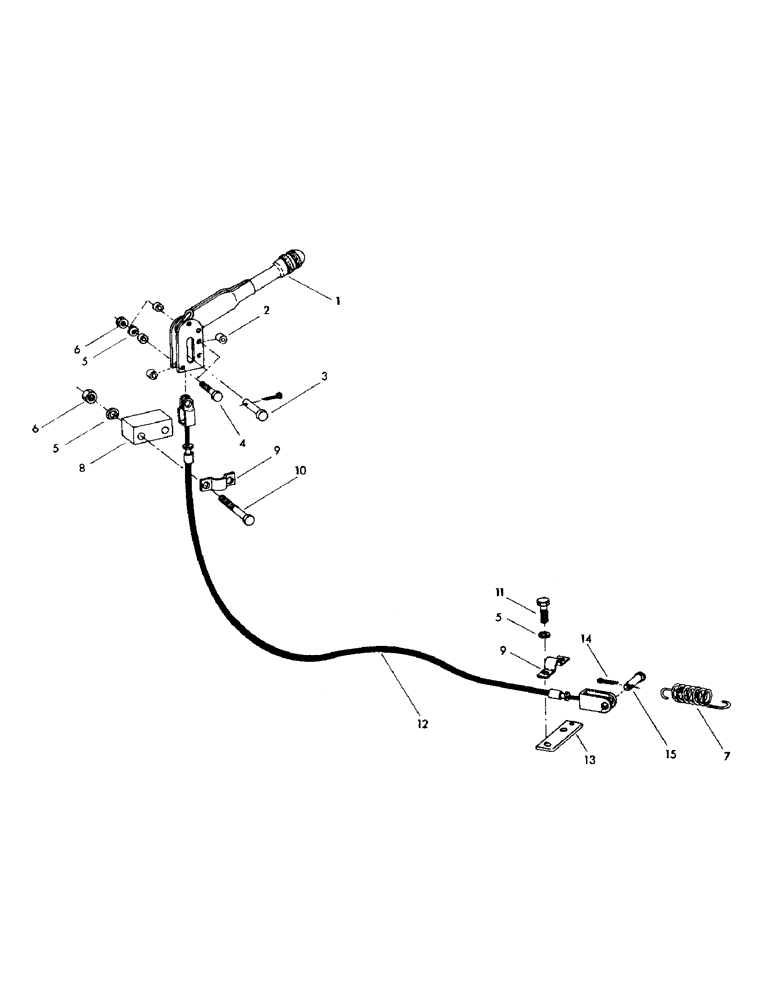

Запчасти Case 40EC (D10) - SWING BRAKE CONTROL (05) - UPPERSTRUCTURE CHASSIS

1

26639

LEVER, hand brake (Includes item 3 and 3 of item 2)

1шт.

2

48851

SPACER, hand brake (2 used with brake lever, and 2 used to space brake lever from mounting)

4шт.

3

NLS

NO LONGER SERVICED

PIN, clevis - 5/16" x 1-17/64" grip length

1шт.

4

2409

HOUSING

CPSW - 3/8" x 3" NC gr. 5

2шт.

5

4397

LOCKWASHER - 3/8"

6шт.

6

4222

NUT - 3/8"

4шт.

7

202938

SPRING, valve return

1шт.

8

64927

SPACER

1шт.

9

48542

CLAMP

2шт.

10

2406

BEARING ASSY

CPSW - 3/8" x 2-1/4" NC gr. 5

2шт.

11

2400

LAMP

CPSW - 3/8" x 3/4" NC gr. 5

2шт.

12

33995

O-RING

CABLE, brake

1шт.

13

68977

SPACER

1шт.

14

4610

TOY

PIN, cotter - 3/32" x 1/2" long

1шт.

15

10715

PIN, clevis - 1/4" x 1-55/64" grip length

1шт.
