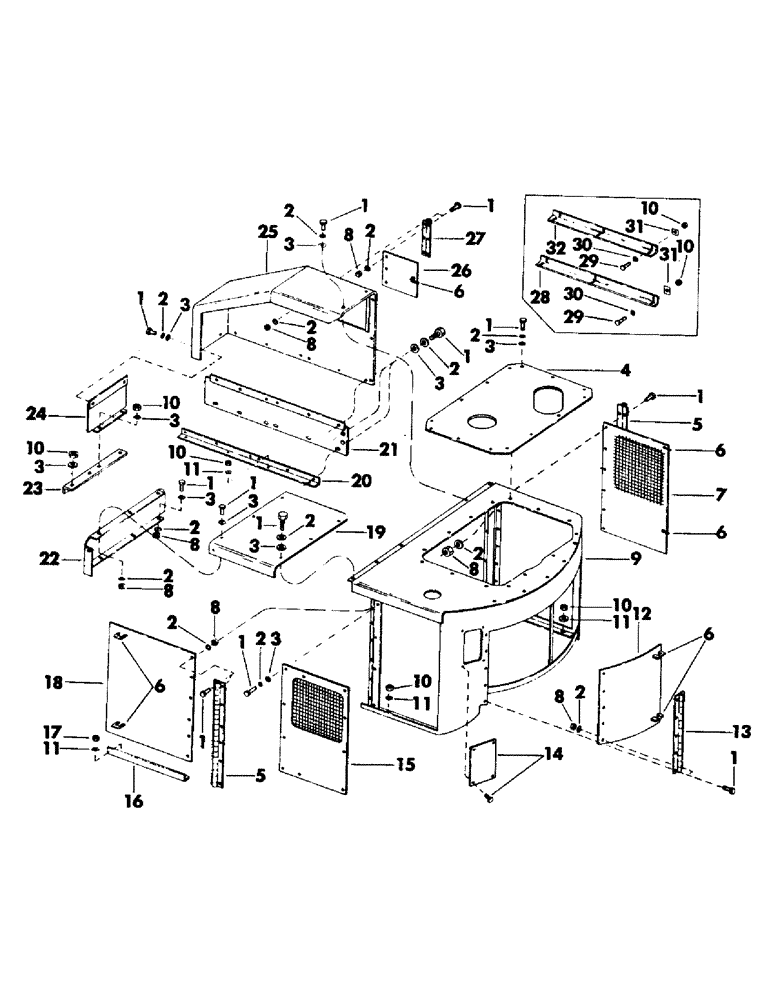

Запчасти Case 40EC (D09A) - TURNTABLE SHROUD FOR: CASE 504BD DIESEL ENGINES (05) - UPPERSTRUCTURE CHASSIS

1

S2400

MUFFLER

CPSW - 3/8" NC x 3/4" gr. 5

1шт.

2

S4397

WASHER

lock - 3/8"

1шт.

3

S7385

INSTRUCTION

WASHER, flat - 3/8"

1шт.

4

S504250

SHEET, shroud top

1шт.

5

S216046

HINGE, door

2шт.

6

S76864

HANDLE

1шт.

S70878

WASHER, LOCK

- 5/16" (External tooth)

1шт.

S7348

WASHER, LOCK

- 5/8" (Internal tooth)

1шт.

7

S504464

DOOR, rear side shroud - (Right hand)

1шт.

8

S4222

NUT

- 3/8" NC

1шт.

9

S952590

SHROUD, rear

1шт.

10

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.

11

S83704

WASHER, flat - 3/8"

1шт.

12

S39893

DOOR, rear shroud - (Left hand) - (Illustrated)

1шт.

S39044

DOOR, rear shroud - (Right hand) - (Not illustrated)

1шт.

13

S208854

HINGE, door - (Left hand) - (Illustrated)

1шт.

S208804

HINGE, door - (Right hand) - (Not illustrated)

1шт.

14

S79518

PLATE, (Covers hydraulic oil reservoir filter access hole)

4шт.

S40799M1

SCREW, machine - 1/4" NC x 3/4"

4шт.

15

S504466

GUARD, rear shroud - (Left hand)

1шт.

16

S80929

BRACKET

1шт.

17

S17084

NUT

self locking - 3/8" NC

1шт.

18

S504463

DOOR, rear side shroud - (Left hand)

1шт.

19

S39042

PLATE, top shroud

1шт.

20

S39041

BRACKET- mounts, Serial Range: shroud-turntable

1шт.

21

S504472

BRACKET

1шт.

22

S215951

BRACKET

1шт.

23

S87631

ANGLE - mounts, Serial Range: shroud-turntable

1шт.

24

S215727

BRACKET

1шт.

25

S56653

SHROUD - (Right hand)

1шт.

26

S208805

DOOR, front side shroud - (Right hand)

1шт.

27

S208806

HINGE

1шт.

28

S80480

BRACKET, angle - (To cab for shroud mounting)

1шт.

29

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr. 5

1шт.

30

S7389

WASHER

flat - 7/16"

1шт.

31

S83704

WASHER, square

1шт.

32

S80481

BRACKET, angle - (To cab for shroud mounting)

1шт.
