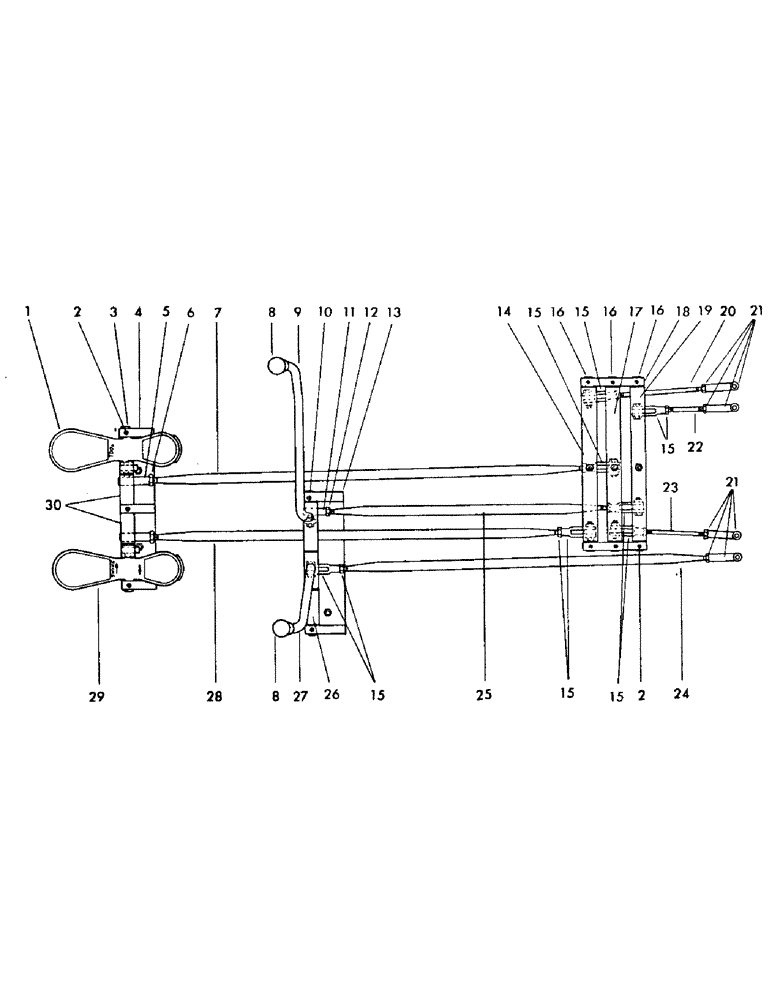

Запчасти Case 40EC (D07A) - FUNCTION CONTROLS, (CROWD, HOIST, SWING AND TOOL), (USED ON (05) - UPPERSTRUCTURE CHASSIS

1

58297

PEDAL, tool

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

63168

BEARING, needle

2шт.

2

14045

DUST CAP

SCREW, set - 5/16" x 5/16" NC

11шт.

3

S75354

SHAFT - for pedal mounting

1шт.

Change in listing.

1шт.

4

205433

SUPPORT, pedal mounting

1шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

2шт.

7389

WASHER, flat - 3/8"

2шт.

5

26213

CLIP

BALLJOINT, mounts, Serial Range: rods-pedals

2шт.

17155

NUT

self locking - 1/2" NF - mounts, Serial Range: balljoint-pedal

2шт.

6

4245

SEAL KIT

NUT, jam - 1/2" NF

2шт.

7

201575

SPARE PART

ROD, connecting - tool

1шт.

8

63411

KNOTTER

GRIP, handle

2шт.

9

38962

PULLEY

HANDLE, crowd - (Includes grease fitting)

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

63168

BEARING, needle

2шт.

10

71862

SHAFT - for handle support

1шт.

11

27134

BALLJOINT - mounts rod to crowd handle

1шт.

17153

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

NUT, self locking - 3/8" NF mounts, Serial Range: balljoint-handle

1шт.

12

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF

1шт.

13

206000

SUPPORT, control handles - includes nylon bearing

1шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

2шт.

7389

WASHER, flat - 3/8"

2шт.

14

211201

BELLCRANK, swing

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

63168

BEARING, needle - into ends of bellcrank

2шт.

40815

ENGINE MOUNT

BEARING, needle - into ears of bellcrank

2шт.

15

12514

CIRCLIP

YOKE

7шт.

40816

BOLT, shoulder - mounts yoke

7шт.

17153

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

NUT, self locking - 3/8" NF - fastens to shoulder bolt

7шт.

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF -, Serial Range: fastens-rods

7шт.

16

71864

SHAFT - bellcrank mounting

3шт.

17

211203

BELLCRANK - tool

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

63168

BEARING, needle - into ends of bellcrank

2шт.

40815

ENGINE MOUNT

BEARING, needle - into ears of bellcrank

2шт.

18

211204

SUPPORT, bellcrank

1шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

2шт.

7389

WASHER, flat - 3/8"

2шт.

19

211202

BELLCRANK, crowd

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

63168

BEARING, needle - into ends of bellcrank

2шт.

40815

ENGINE MOUNT

BEARING, needle - into ears of bellcrank

2шт.

20

80384

BELT

ROD, connecting - swing

1шт.

21

12514

CIRCLIP

YOKE

4шт.

NLS

NO LONGER SERVICED

PIN, clevis - 3/8" x 1.016" grip length

4шт.

4640

CHECK VALVE

PIN, cotter - 5/32" x 3/4" long

4шт.

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF -, Serial Range: fastens-rods

4шт.

Change in listing.

1шт.

22

81811

ROD, connecting - crowd

1шт.

23

81828

DOWEL

ROD, connecting - tool

1шт.

24

201576

ROD, connecting - hoist

1шт.

25

81810

ROD, connecting - crowd

1шт.

26

77611

SPACER - used only when dual control is not used

1шт.

27

38794

HANDLE, hoist - includes grease fitting

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

63168

BEARING, needle - into ends of handle

2шт.

40815

ENGINE MOUNT

BEARING, needle - into ends of handle

1шт.

28

81809

ROD, connecting - swing

1шт.

29

58298

PEDAL, swing

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

63168

BEARING, needle

2шт.

Added listing.

1шт.

30

67750

SPACER

2шт.

7403

WASHER, flat - 21/32" ID x 1-5/16" O.D. - used in between spacer and pedals

2шт.
