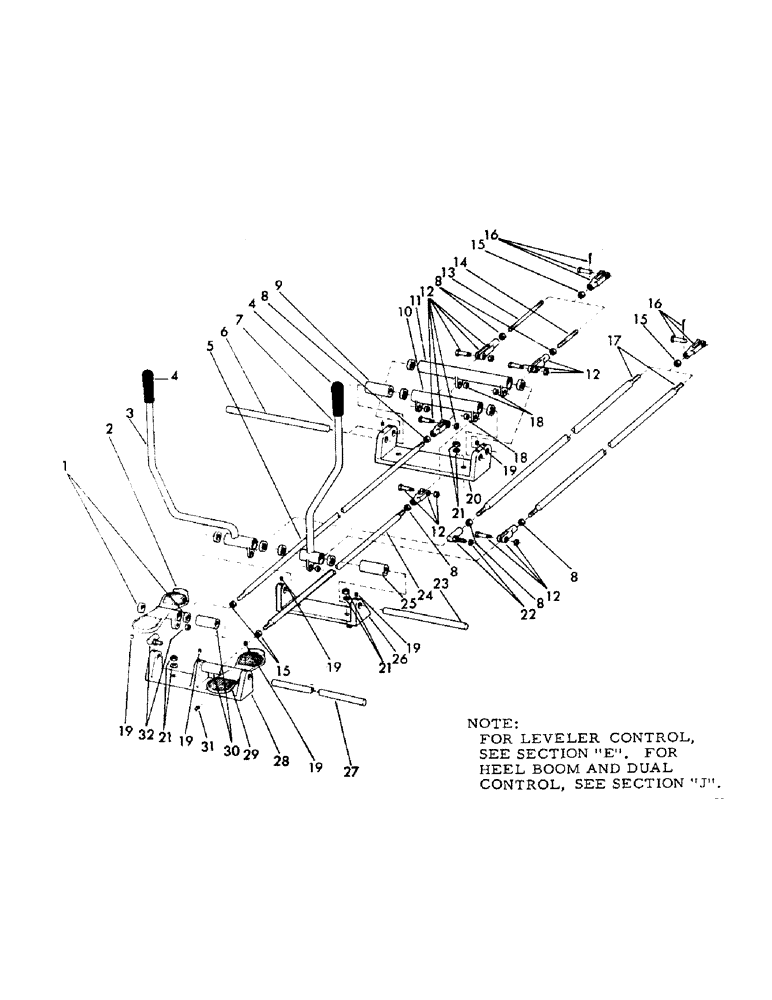

Запчасти Case 40EC (D06) - FUNCTION CONTROLS, (CROWD, HOIST, SWING AND TOOL), (USED (05) - UPPERSTRUCTURE CHASSIS

1

63168

BEARING, needle

12шт.

2

55012

PEDAL, tool

1шт.

3

38962

PULLEY

HANDLE, crowd control

1шт.

Change in listing.

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

4

63411

KNOTTER

GRIP, handle

2шт.

5

208694

ROD, connector

1шт.

6

71864

SHAFT

2шт.

7

38794

HANDLE, hoist control

1шт.

Change in listing.

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

8

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF

6шт.

9

78118

SPACER

1шт.

10

208696

BELLCRANK, swing

1шт.

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

11

208697

BELLCRANK, tool

1шт.

49793

GUARD

FITTING - grease, 1/4" NPT x 65 degrees

1шт.

12

12514

CIRCLIP

YOKE

5шт.

40816

BOLT, shoulder - 3/8" x 1-5/8" NF

5шт.

17153

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

NUT, self locking - 3/8" NF

5шт.

13

71861

ROD, connector

1шт.

14

78119

ROD, connector

1шт.

15

4245

SEAL KIT

NUT, jam - 1/2" NF

6шт.

16

12513

SNAP RING,M70, Ext

YOKE

4шт.

10807

PIN, clevis - 1/2" x 1.188" grip length

4шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

4шт.

17

207746

ROD, connector

2шт.

18

40815

ENGINE MOUNT

BEARING, needle

5шт.

19

14045

DUST CAP

SCREW, set - 5/16" x 5/16" NC

9шт.

20

208695

SUPPORT, bellcrank

1шт.

21

17167

LOCK NUT

NUT, self locking - 3/8" NC

6шт.

7389

WASHER, flat - 7/16"

6шт.

22

27134

JOINT, ball

1шт.

17153

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

NUT, self locking - 3/8" NF

1шт.

23

71862

SHAFT

1шт.

24

201575

SPARE PART

ROD, connecting

1шт.

25

77611

SPACER

1шт.

26

206000

SUPPORT, control handle

1шт.

27

71862

SHAFT

1шт.

28

205433

SUPPORT, pedal

1шт.

29

55011

PEDAL, swing

1шт.

30

67750

SPACER

2шт.

31

49793

GUARD

FITTING, grease - 1/4" NPT x 65 degrees

2шт.

32

26213

CLIP

BALLJOINT

2шт.

17155

NUT

self locking - 1/2" NF

2шт.
