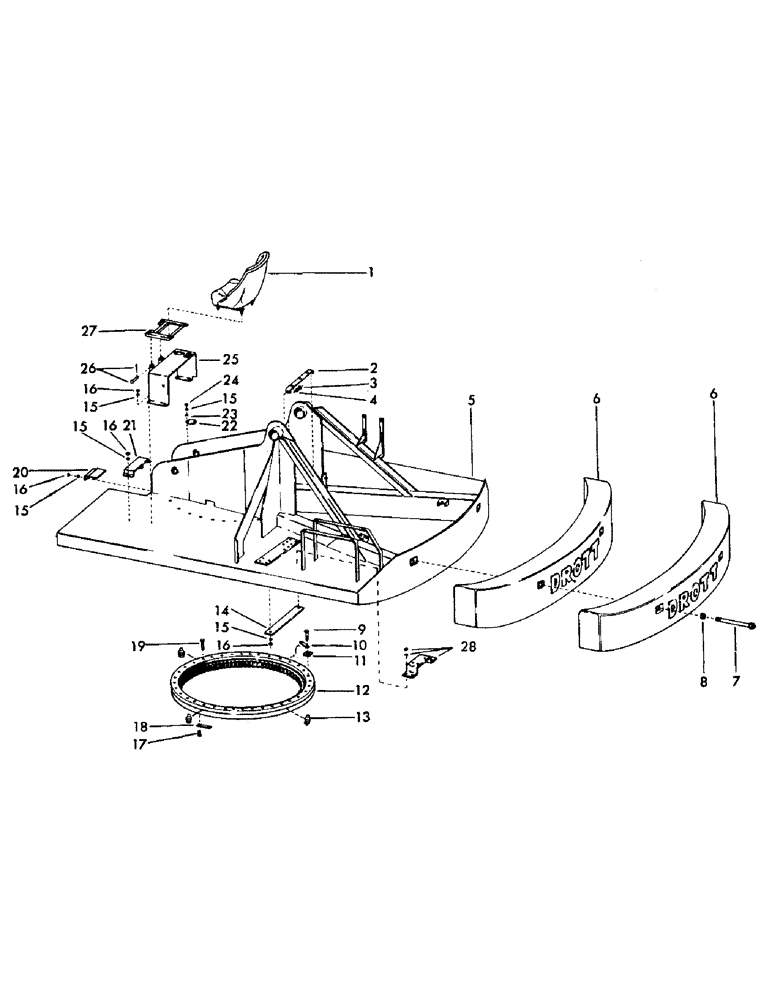

Запчасти Case 40EC (D01) - COUNTERWEIGHTS, TURNTABLE, BEARING AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S27632M1

SEAT, bucket

1шт.

2

S68667

BRACKET, hydraulic tube clamp mounting

1шт.

3

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

4

S7395

WASHER

flat - 1/2"

2шт.

5

S951381

TURNTABLE - (Used on units with serial number 1 thru 899)

1шт.

S951649

TURNTABLE - (Used on units with serial number 900-up)

1шт.

6

S56579

COUNTERWEIGHT

2шт.

7

S208812

STUD ASSEMBLY

2шт.

8

S17095

NUT

self locking - 1/2" NC

2шт.

9

S84906

BOLT

CPSW - 5/8" x 2" - (Special) - mounts, Serial Range: bearing-turntable

30шт.

10

S84753

WASHER

special

30шт.

Change in listing.

1шт.

11

S77916

SHIM,.005" Thk

1шт.

S77917

SHIM,.010" Thk

1шт.

S77918

SHIM,.015" Thk

1шт.

S77919

SHIM,.030" Thk

1шт.

S77920

SHIM,.060" Thk

1шт.

S84889

SHIM,.003" Thk

1шт.

Added listing.

1шт.

S84890

SHIM,.007" Thk

1шт.

Added listing.

1шт.

12

S59392

PACKAGE

BEARING, turntable - (Includes Refs. 9, 10, 13, 17, 18, 19)

1шт.

13

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT (Straight)

4шт.

14

S76663

PLATE, valve access

1шт.

15

S7389

WASHER

flat - 7/16"

12шт.

16

A17167

NUT, self locking - 3/8" NC

10шт.

17

S84905

BOLT

CPSW - 5/8" x 1-3/4" NC - (Special) - mounts, Serial Range: bearing-flange

36шт.

18

S84753

WASHER

hardened

36шт.

Change in listing.

1шт.

19

S86503

BOLT

CPSW - 5/8" x 2-1/4" NC grade 8 (Mounts bearing to turntable through swing reducer suport)

4шт.

Change in listing.

1шт.

20

S208984

COVER, turntable bearing

1шт.

21

S202306

COVER, link

1шт.

22

S76664

COVER

bearing access

1шт.

23

S4397

WASHER

LOCKWASHER - 3/8"

2шт.

24

S77941

NUT

2шт.

25

S37936M1

MOUNTING ASSEMBLY, seat and instrument

1шт.

26

S10809

PIN

clevis - 1/2" x 1-33/64" grip length

2шт.

S4628

SPLIT PIN

PIN, cotter - 3/32" x 1" long

2шт.

27

S31874

BRACKET, seat mounting

1шт.

28

S211222

BRACKET, optional heel boom valve mounting - (Used on units with serial number 900-up)

1шт.

S7395

WASHER

flat - 1/2"

4шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.
