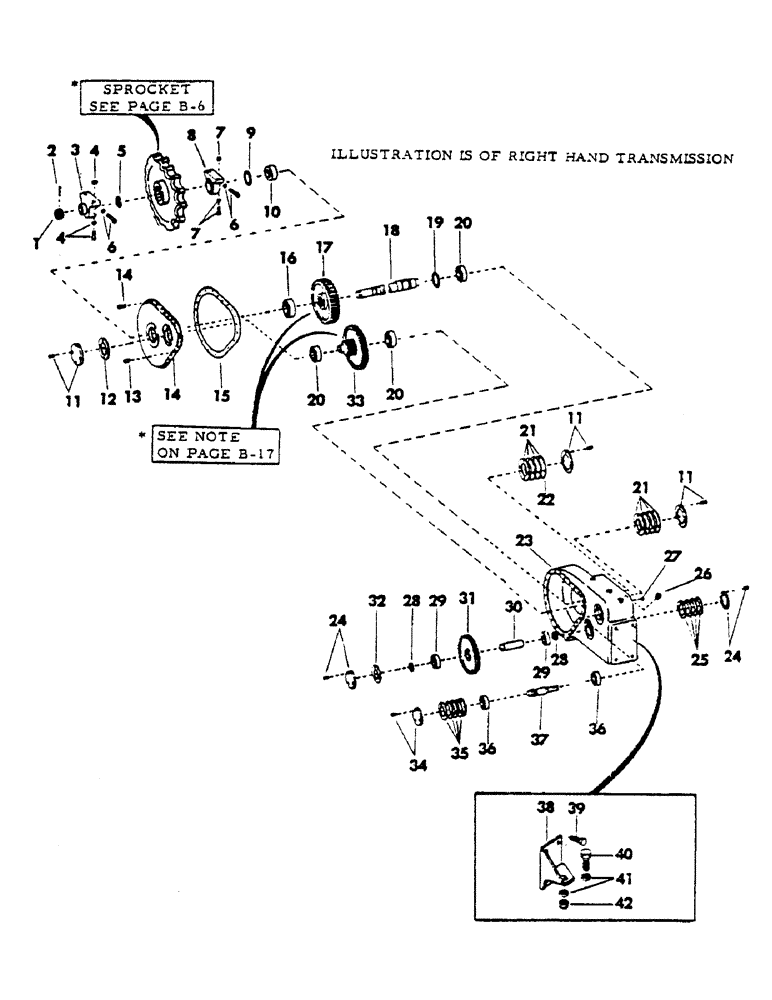

Запчасти Case 40EC (B14) - FINAL DRIVE TRANSMISSION, (USED ON UNITS WITH SERIAL NUMBER (04) - UNDERCARRIAGE

S604785

TRANSMISSION, fianl drive - complete (Consists of items 1, 2, 7 thru 43 and items 15 thru 18 and 20 as illustrated on page E8) - (Right hand)

1шт.

Change in listing.

1шт.

S604786

TRANSMISSION, final drive - complete (Consists of items 1, 2, 7 thru 43 and items 15 thru 18 and 20 as illustrated on page E8) - (Left hand)

1шт.

1

S9311

NUT

- 2" NF

1шт.

2

S5462

PIN

roll - 5/16" x 2-3/4" long

1шт.

Change in listing.

1шт.

3

S209722

BLOCK

pillow - (Outer)

1шт.

4

S75591

BOLT

CPSW - 5/8" NC x 3-1/2" gr. 8 - (Mounts pillow, Serial Range: block-frame)

2шт.

S7401

WASHER, flat - 5/8"

2шт.

S17088

NUT

self locking - 5/8" NC

2шт.

5

S76257

SPACER

- (Used on units with serial number 700 thru 1002)

1шт.

S83872M1

X

SPACER - (Used on units with serial number 1003-up)

1шт.

6

S12261

CAPSCREW

CPSW - 3/4" x 3" - (Hexagon head top) - (Pillow block adjustment)

2шт.

Change in listing.

1шт.

86632557

JAM NUT,Jam, 3/4"-10, G5

NUT, jam - 3/4" NC

2шт.

Change in listing.

1шт.

7

S75591

BOLT

CPSW - 5/8" NC x 3-1/2" gr. 8 - (Mounts pillow block to frame) - (Used on units with serial number 700 thru 1002)

2шт.

Change in listing.

1шт.

S84753

WASHER

flat - 5/8" (Hardened) - (Used on units with serial number 700 thru 1002)

2шт.

S17088

NUT

self locking - 5/8" NC - (Used on units with serial number 700 thru 1002)

2шт.

S84785

BOLT

CPSW - 3/4" NC x 4-1/2" - (Special) - (Mounts pillow block to frame) - (Used on units with serial number 1003-up)

2шт.

S84752

WASHER

flat - 3/4" - (Hardened) - (Used on units with serial number 1003-up)

2шт.

S17089

NUT

self locking - 3/4" NC - (Used on units with serial number 1003-up)

2шт.

8

S209721

BEARING CARRIER,2.5" ID

BLOCK, pillow - (Inner) - (Used on units with serial number 700 thru 1002)

1шт.

S212544

BEARING CARRIER

BLOCK, pillow - (Inner) - (Used on units with serial number 1003-up)

1шт.

9

S76255

SPACER

- (Used on units with serial number 700 thru 1002)

1шт.

S83873

SPACER

- (Used on units with serial number 1003-up)

1шт.

10

S65038

OIL SEAL

oil - (Used on units with serial number 700 thru 1002)

1шт.

S83874

OIL SEAL

SEAL, oil - (Used on units with serial number 1003-up)

1шт.

11

S217974M1

COVER

bearing

3шт.

Change in listing.

1шт.

S91176

CAPSCREW

CPSW, socket head - 3/8" NC x 7/8" - (Socket head nylok)

12шт.

Change in listing.

1шт.

12

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

13

S65037

DOWEL

2шт.

14

S952720M1

X

COVER, transmission

1шт.

Change in listing.

1шт.

15

S96077

SEAL

- 10 CC bottle - (Red) - (Replaces transmission cover gasket - substitutes must not be used)

1шт.

Change in listing.

1шт.

16

S65026

BEARING ASSY

BEARING, roller - (Used on units with serial number 700 thru 1002)

1шт.

S83875

ROLLER BEARING

BEARING, roller - (Used on units with serial number 1003-up)

1шт.

17

S56785

GEAR

output - (Used on units with serial number 700 thru 1002)

1шт.

S603741

GEAR

output - (Used on units with serial number 1003-up)

1шт.

Replacement of either gear Ref. 17 or Ref. 33, formerly S600865M2 and S601244, will necessitate the ordering of the gear pair S603741 and S603740. These gears must be replaced as a pair. See service bulletin #81 dated September 1, 1972.

1шт.

Change in listing.

1шт.

18

S58471M1

SHAFT, output - (Used on units with serial number 700 thru 1002)

1шт.

S59165M2

X

SHAFT, output - (Used on units with serial number 1003-up)

1шт.

19

S76259

RING, SNAP

RING, retaining

1шт.

20

S65025

BEARING ASSY

BEARING, roller

3шт.

21

S204085

GASKET

shim - .003"

1шт.

S204086

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204087

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

22

S204097

SHIM,.030" Thk

Gasket .030" Thk

1шт.

23

S952724M1

X

HOUSING, transmission - (Right hand)

1шт.

Change in listing.

1шт.

S952725M1

HOUSING

transmission - (Left hand)

1шт.

Change in listing.

1шт.

24

S210368

COVER

bearing

2шт.

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

6шт.

25

S204089

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204090

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204091

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

26

S15165

PLUG, pipe - 3/4" NPT - (Hexagon head) - (Breather)

1шт.

27

S7880

PLUG

pipe - 3/4" NPT - (Socket head)

2шт.

28

S62725

RING

retainer

2шт.

29

S65035

ROLLER BEARING

BEARING, roller

2шт.

30

S210366

SHAFT

intermediate

1шт.

31

S53338

GEAR

CLUSTER, intermediate

1шт.

32

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

33

S603741

GEAR

CLUSTER AND SHAFT

1шт.

Replacement of either gear Ref. 17 or Ref. 33, formerly S600865M2 and S601244, will necessitate the ordering of the gear pair S603741 and S603740. These gears must be replaced as a pair. See service bulletin #81 dated September 1, 1972.

1шт.

Change in listing.

1шт.

34

S203411

COVER

bearing

1шт.

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylock)

3шт.

35

S204093

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204094

SHIM

GASKET, shim - .005"

1шт.

S204095

SHIM

GASKET, shim - .007"

1шт.

S204096

SHIM,.010" Thk

Gasket .010" Thk

1шт.

36

S65036

BEARING ASSY

BEARING, roller

2шт.

37

S34044

SHAFT

input pinion

1шт.

38

S209229M1

X

BRACKET, transmission mounting - (Right hand) - (Illustrated)

1шт.

S209230M1

X

BRACKET, transmission mounting - (Left hand) - (Not illustrated)

1шт.

39

S2542

BOLT

CPSW - 3/4" NC x 1-1/2" gr. 5 -, Serial Range: (Bracket-transmission)

4шт.

40

S88563

BOLT

CPSW - 1" NC x 3" gr. 8 -, Serial Range: (Bracket-frame)

1шт.

41

S91091

WASHER

flat - 1" - (Special)

2шт.

42

231-14016

LOCK NUT,1"-8, GB

NUT, self locking - 1" NC

1шт.
