(B13) - TRACK TREAD ADJUSTING JACK (OPTIONAL), (USED ON UNITS WITH

Запчасти Case 40EC (B13) - TRACK TREAD ADJUSTING JACK (OPTIONAL), (USED ON UNITS WITH (04) - UNDERCARRIAGE

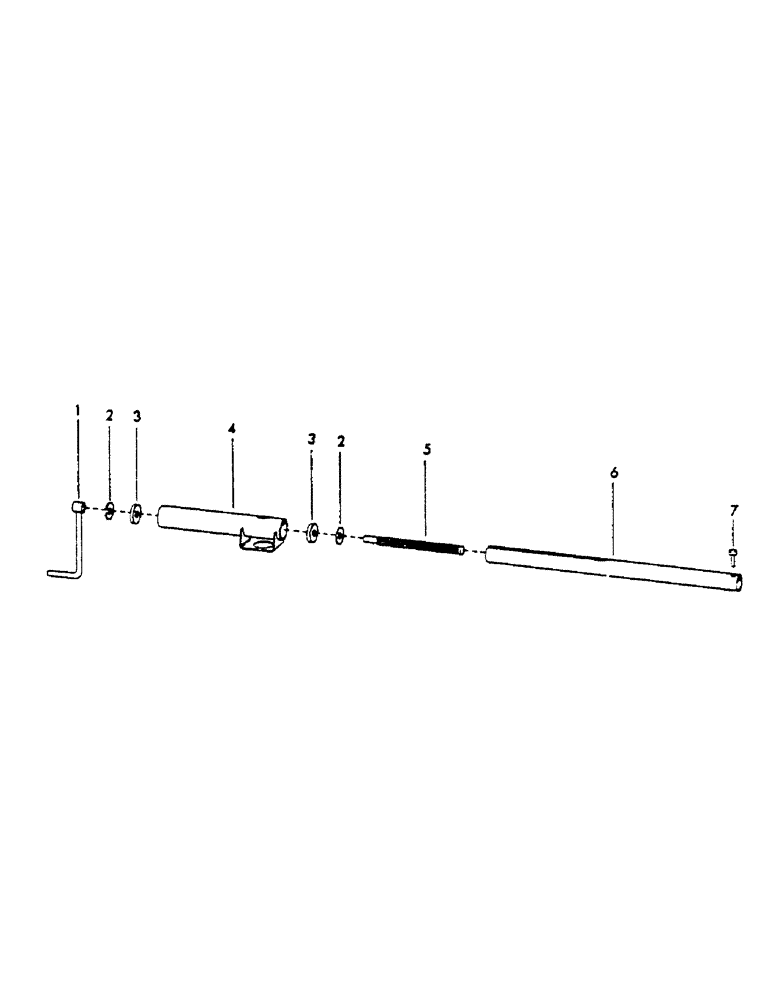

Схема запчастей Case 40EC - (B13) - TRACK TREAD ADJUSTING JACK (OPTIONAL), (USED ON UNITS WITH (04) - UNDERCARRIAGE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

39583

BULB

JACK ASSEMBLY, track adjusting - complete (Consists of Refs. 1 thru 6)

1шт.

1

NSS

NOT SOLD SEPARAT

HANDLE

1шт.

Change in listing.

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - 21/32" ID

2шт.

Change in listing.

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING

2шт.

Change in listing.

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE, outer

1шт.

Change in listing.

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW, jack

1шт.

Change in listing.

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE, inner

1шт.

Change in listing.

1шт.

7

NSS

NOT SOLD SEPARAT

PIN, clevis - 1/2" x 2.375" grip length grade 8

1шт.

Change in listing.

1шт.
