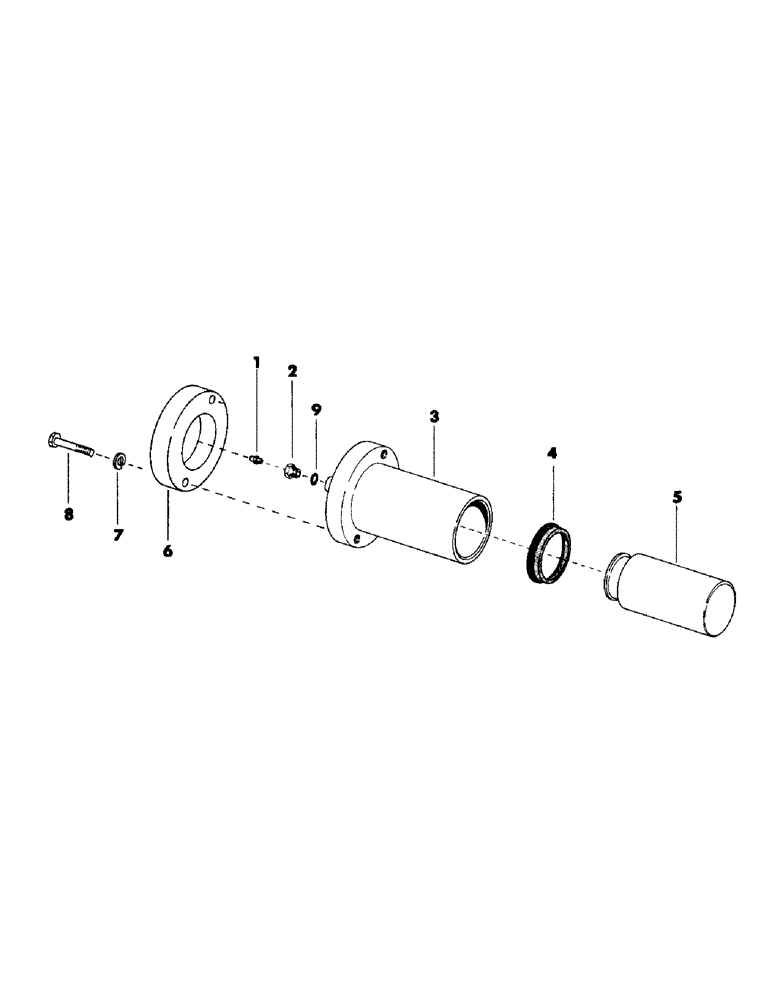

Запчасти Case 40EC (B12) - TRACK ADJUSTMENT CYLINDER, (USED ON UNITS WITH SERIAL NUMBER (04) - UNDERCARRIAGE

S56864

CYLINDER

- track adjustment, complete (Consists of Refs. 1 thru 5 and 9)

1шт.

1

S86260

FITTING

grease - 1/4" NPT (Straight)

1шт.

Change in listing.

1шт.

2

S79901

ADAPTER - 1/4" NPT female x 9/16" male (Includes "O" ring)

1шт.

3

S39298

TUBE,7.5" L

cylinder

1шт.

4

S78837

SEAL

1шт.

5

S209107

PISTON

1шт.

6

S79135

SPACER

cylinder mounting

1шт.

7

S4399

WASHER

LOCKWASHER - 1/2"

2шт.

8

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

(Mounts cylinder to track frame assembly) Hex, 1/2"-13 x 4", G5

2шт.

9

S6059

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - .406" ID x .547" O.D. (Used with S79901)

1шт.
