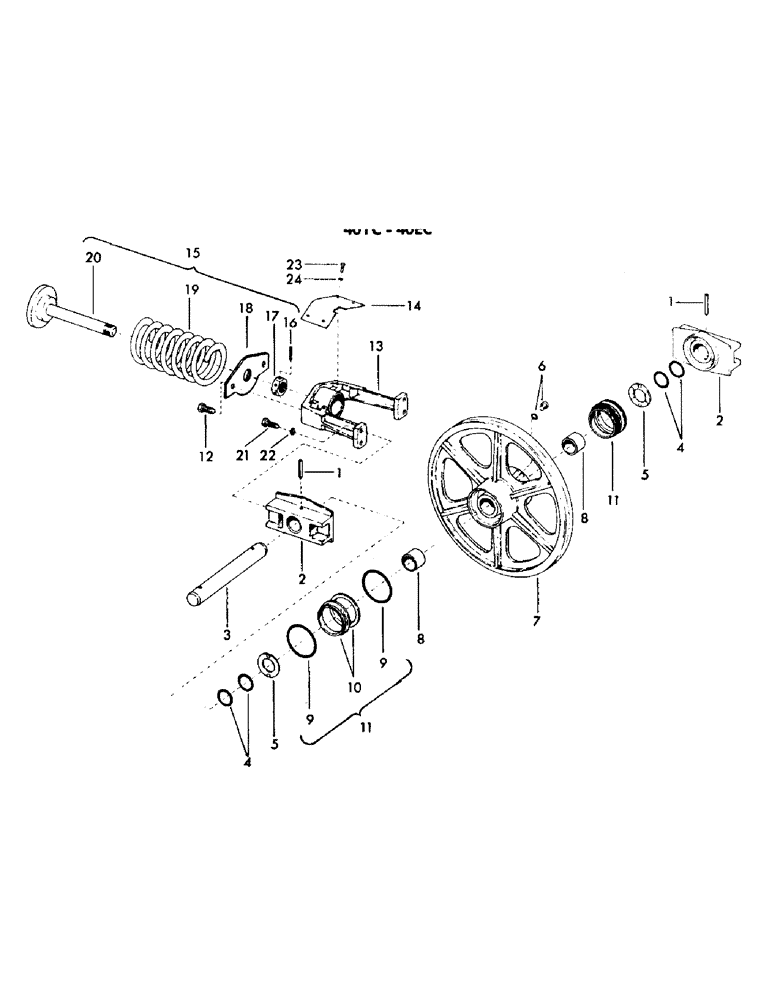

Запчасти Case 40EC (B10) - IDLER WHEEL AND TRACK ADJUSTER, (USED ON UNITS WITH SERIAL (04) - UNDERCARRIAGE

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

WHEEL, idler - complete (Consists of Refs. 1 thru 11)

2шт.

1

5526

TRIP

PIN, roll

2шт.

2

36261

BLOCK, guide

2шт.

3

78699

SHAFT

1шт.

4

6318

O-RING

"O" RING - 2.234" ID x 2.500" O.D.

4шт.

5

78702

WASHER

2шт.

6

8993

FITTING

PLUG, "O" ring - 9/16" thread (Includes "O" ring)

1шт.

6058

O-RING

"O" RING - .414" ID x .558" O.D.

1шт.

Change in listing.

1шт.

7

39520

WHEEL, idler - includes 2 of Refs. 8

1шт.

8

78703

BUSHING

2шт.

9

78700

"O" RING

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL, ring

4шт.

Change in listing.

1шт.

11

209139

SEAL SET - includes Refs. 9 and 10

2шт.

TRACK ADJUSTER - less cylinder (For breakdown of cylinder see figure)

2шт.

12

S2503

BOLT (MACHINE)

CPSW - 5/8" x 1-3/4" NC grade 5

2шт.

13

S56819

YOKE

idler

1шт.

14

S39342

COVER

yoke

1шт.

15

S39292M2

SPRING ASSEMBLY, track tension - includes Refs. 16 thru 20

1шт.

Change in listing.

1шт.

16

S5436

PIN, ROLL

- 1/4" x 1-7/8" long

1шт.

17

S78770

NUT

special

1шт.

18

S209094

BACK PLATE

PLATE, end

1шт.

19

S214697

SPRING

1шт.

Change in listing.

1шт.

20

S209093M2

GUIDE

1шт.

21

S2467

BOLT

CPSW - 1/2" x 1-1/2" NC grade 5

4шт.

22

S4399

WASHER

LOCKWASHER - 1/2"

4шт.

23

S2401

BOLT

CPSW - 3/8" x 1" NC grade 5

4шт.

24

S4397

WASHER

LOCKWASHER - 3/8"

4шт.
