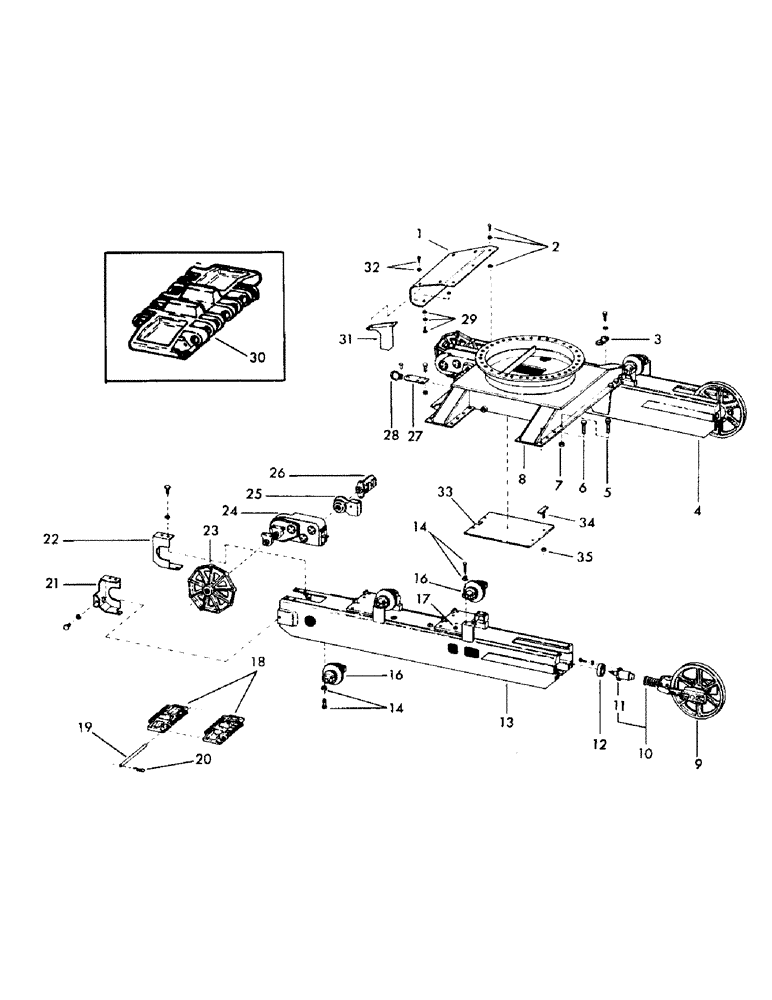

Запчасти Case 40EC (B06) - CRAWLER UNDERCARRIAGE AND ATTACHING PARTS (LESS HYDRAULICS), (04) - UNDERCARRIAGE

1

57024

BATTERY

COVER, motor

1шт.

2

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC grade 5 (Cover to top of carbody)

3шт.

4399

WASHER

LOCKWASHER - 1/2"

3шт.

7393

WASHER, flat - 1/2"

3шт.

3

209072

STOP, track adjusting

4шт.

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC grade 5

8шт.

4399

WASHER

LOCKWASHER - 1/2"

8шт.

4

951454

FRAME, track (Left hand) - (Used on units with serial number 700 thru 1002)

1шт.

Added listing.

1шт.

952141

FRAME, track (Left hand) - (Used on units with serial number 1003-up)

1шт.

Added listing.

1шт.

5

2549

O-RING

CPSW - 3/4" x 3" NC grade 5 (Mounts carbody to track frame assemblies)

16шт.

6

2546

SEAL KIT

CPSW - 3/4" x 2-1/4" NC grade 5 (Mounts carbody to track frame assemblies)

16шт.

7

17172

NUT

self locking - 3/4" NC (Mounts carbody to track frame assemblies)

16шт.

8

951528

CARBODY

1шт.

9

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

WHEEL, front idler - see figure 10

2шт.

Added listing.

1шт.

10

TRACK ADJUSTER AND GROUP - see figures 10 and 11

2шт.

Added listing.

1шт.

11

56864

SEALING RING COLLAR

CYLINDER, track adjustment - see figure 12

2шт.

Added listing.

1шт.

12

S79135

SPACER

- to mount track adjustment cylinder

2шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

S4399

WASHER

LOCKWASHER - 1/2"

4шт.

13

S951453

FRAME

track (Right hand) - used on units with serial number 700 thru 1002)

1шт.

S952140

FRAME

track (Right hand) - used on units with serial number 1003-up)

1шт.

14

S2511

BOLT (MACHINE)

CPSW - 5/8" x 3-3/4" NC grade 5 (Mounts rollers to track frame assemblies)

80шт.

S4401

LOCKWASHER - 5/8"

80шт.

16

S39510M1

ROLLER, track (See figure 9)

20шт.

17

280374

NUT,Hex, 5/8" - 11, Gr 5

(Mounts top rollers to track frame assemblies) 5/8"-11, G5

16шт.

18

S53006

SHOES, track - 20" wide pad (Standard)

80шт.

S951533M1

SHOES, track - 24" slope bottom pad (Optional)

80шт.

S951809M1

SHOES, track - 30" slope bottom pads (Optional)

80шт.

19

S202793

PIN, track (Fits standard 20" wide pad)

80шт.

S209377

PIN

track (Fits optional 24" slope bottom pads)

80шт.

A209355

PIN, track (Fits optional 30" slope bottom pads)

80шт.

20

S65031M1

PIN

clinch (Quantity of 80 used with standard 20" pads and quantity of 160 used with optional 24" and 30" slope bottom pads)

1шт.

21

S39272M1

COVER, bearing (Outside left hand)

1шт.

S2466

BOLT

CPSW - 1/2" x 1-1/4" NC gr. 5

4шт.

S4399

WASHER

LOCKWASHER - 1/2"

4шт.

S39273M1

COVER, bearing (Outside right hand)

1шт.

S2466

BOLT

CPSW - 1/2" x 1-1/4" NC gr. 5

4шт.

S4399

WASHER

LOCKWASHER - 1/2"

4шт.

22

S39265M1

COVER, bearing (Inside right hand)

1шт.

S2466

BOLT

CPSW - 1/2" x 1-1/4" NC gr. 5

4шт.

S4399

WASHER

LOCKWASHER - 1/2"

4шт.

S39264M1

COVER, bearing (Inside left hand)

1шт.

S2466

BOLT

CPSW - 1/2" x 1-1/4" NC gr. 5

4шт.

S4399

WASHER

LOCKWASHER - 1/2"

4шт.

23

S951462M2

WHEEL, sprocket drive - (Used on units with serial number 700 thru 1002)

2шт.

Change in listing.

1шт.

S952076M1

WHEEL, sprocket drive - (Used on units with serial number 1003-up)

2шт.

Change in listing.

1шт.

24

S600869

TRANSMISSION, final drive - right hand (See figures 14 and 15)

1шт.

S600870

TRANSMISSION, final drive - left hand (See figures 14 and 15)

1шт.

25

S53301

BRAKE, track drive - right hand (See section "E")

1шт.

S53302

BRAKE, track drive - left hand (See section "E")

1шт.

26

S39359

MOTOR, track crawler drive - (See section "H")

2шт.

27

S209710

PLATE

draw bar (Optional)

1шт.

S2548

BOLT (MACHINE)

CPSW - 3/4" x 2-3/4" NC grade 5

4шт.

S4227

NUT

- 3/4" NC

4шт.

28

S100742

SHACKLE

round pin (Optional)

1шт.

29

S2468

BOLT

CPSW - 1/2" x 1-3/4" NC grade 5

2шт.

S4399

WASHER

LOCKWASHER - 1/2"

2шт.

S7393

WASHER

flat - 1/2"

4шт.

30

S951534M1

SHOE, track replacement - 24" - with double lugs (To shorten track to 39 shoes, remove any two and replaces with one of S951534M1)

1шт.

Change in listing.

1шт.

951810M1

SHOE, track replacement - 30" - with double lugs (To shorten track to 39 shoes, remove any 2 and replace with one of 951810M1)

1шт.

Added listing.

1шт.

31

S501901M2

SHIELD - (Right hand) - (Used on units with serial number 759-up) - Illustrated

1шт.

Change in listing.

1шт.

S501900M2

SHIELD - (Left hand) - (Used on units with serial number 759-up) - Not illustrated

1шт.

Change in listing.

1шт.

32

S2467

BOLT

CPSW - 1/2" x 1-1/2" NC gade 5

4шт.

S4399

WASHER

LOCKWASHER - 1/2"

4шт.

33

S210279

PLATE

1шт.

34

S210280

CLAMP

4шт.

35

S9093

NUT, self locking - 5/8" NC

4шт.

36

S503760

PLATE, bumper

1шт.

Added listing.

1шт.

37

S2552

CPSW - 3/4" x 3-3/4" NC (Used with draw bar)

4шт.

Added listing.

1шт.

S2546

BOLT (MACHINE)

CPSW - 3/4" x 2-1/2" NC (Used without draw bar)

4шт.

S84752

WASHER

hardened - 3/4"

4шт.

S16650

NUT - 3/4" NC

4шт.
