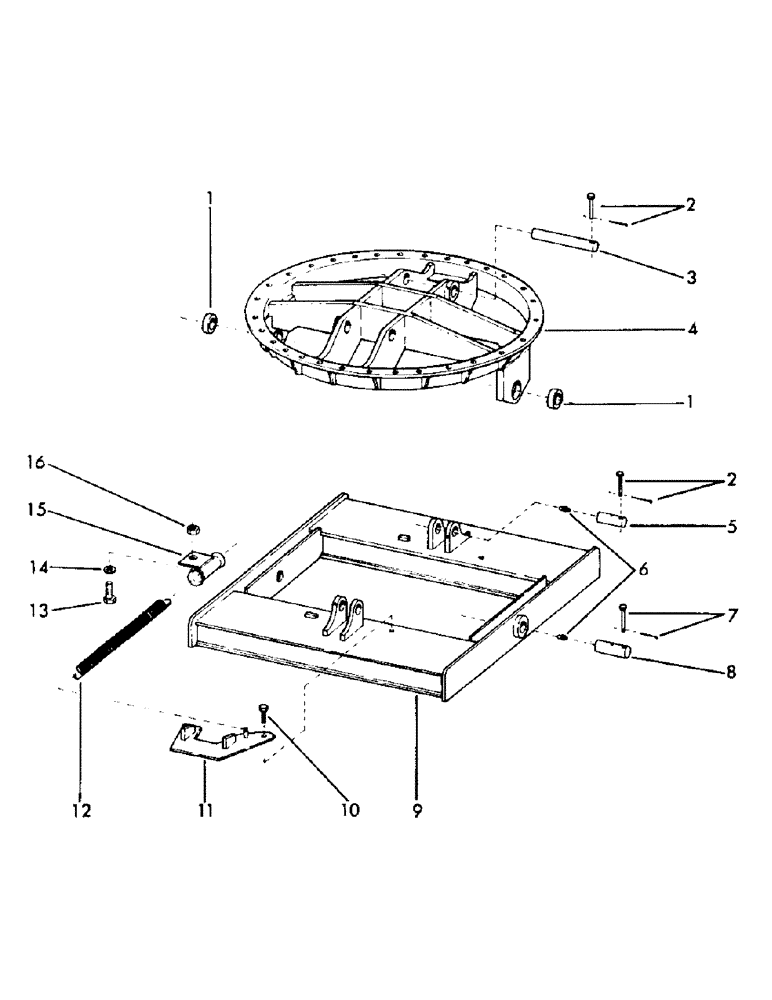

Запчасти Case 40EC (B05) - LEVELER RING AND BASE WITH ATTACHING PARTS, (USED ON UNITS (04) - UNDERCARRIAGE

1

202161

BUSHING

2шт.

2

61973

PIN, clevis - 1/2" x 3.766 grip length

4шт.

4641

PIN

cotter - 5/32" x 1" long

4шт.

3

78554

PIN, Serial Range: (Cylinder-ring)

2шт.

4

56752

LEVELER, ring

1шт.

5

78317

PIN, Serial Range: (Cylinder-base)

2шт.

6

12031

FITTING, grease - 1/8" NPT (Straight)

4шт.

7

61976

PIN, clevis - 5/8" x 4.516" grip length

2шт.

4641

PIN

cotter - 5/32 x 1" long

2шт.

8

72631

PIN, Serial Range: (Ring-base)

2шт.

9

56751

LEVELER, base

1шт.

10

16902

CPSW, self locking - 1/2" x 1-1/4" NC gr. 5

2шт.

11

208982

LEVELER STOP (Left side illustrated)

1шт.

208983

LEVELER STOP (Right side not illustrated)

1шт.

12

64335

SPRING

1шт.

13

2355

CPSW - 1/4" x 2" NC gr. 5

1шт.

14

4395

WASHER

LOCKWASHER - 1/4"

1шт.

15

205260

BRACKET, spring holder

1шт.

16

4220

TOOL

NUT - 1/4" NC

1шт.
