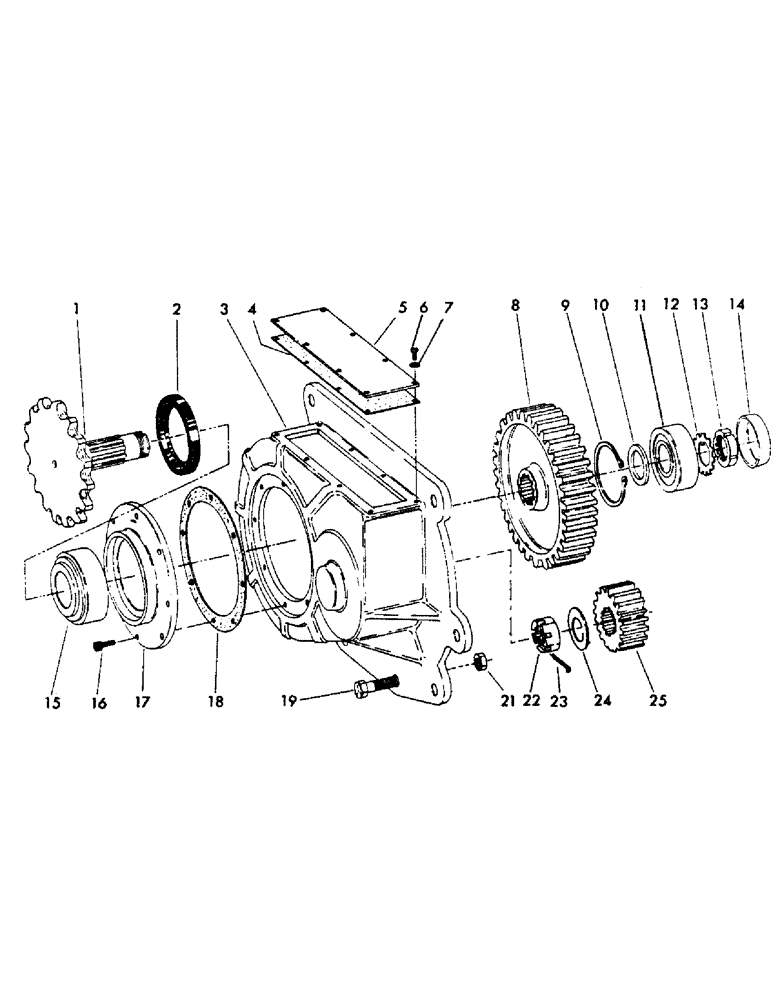

Запчасти Case 40EC (B03[1]) - CRAWLER MOTOR PINION & HARDWARE (04) - UNDERCARRIAGE

37062

BUSHING

REDUCER, crawler drive - right hand (Consists of items 1 thru 21)

1шт.

37063

REDUCER, crawler dirve - left hand (Consists of items 1 thru 21)

1шт.

1

33431M1

SHAFT, 14 tooth pinion (With mud reliefs)

1шт.

2

64203

SEAL

1шт.

3

202502

RING

CASE, gear - right hand

1шт.

202503

BODY

CASE, gear - left hand

1шт.

4

201108

GASKET

1шт.

5

201107

COVER

1шт.

6

7498

SCREW, self tapping 1/4" x 3/4" NC

8шт.

7

4395

WASHER

LOCKWASHER - 1/4"

8шт.

8

33430

PAD

GEAR, 29 tooth

1шт.

9

64202

RING, snap

1шт.

10

64198

WASHER

1шт.

11

64200

ANGLE

BEARING - (Timken #30310B)

1шт.

12

201121

WASHER

1шт.

13

201120

NUT

1шт.

14

201122

RETAINER

1шт.

15

64199

BEARING - (Timken #32312)

1шт.

16

3516

PLOW BOLT

BOLT - 1/2" diameter head - 3/8" x 3/4" NC gr. 5

8шт.

17

33432

CASING

1шт.

18

76607

GASKET

1шт.

19

2547

CYLINDER END CAP

CPSW - 3/4" x 2-1/2" NC gr. 5

14шт.

21

4227

TOY

NUT - 3/4" NC

14шт.

22

63355

NUT, castle (Metric thread)

1шт.

23

4674

PIN, cotter - 1/4 x 2"

1шт.

24

201464

WASHER, flat

1шт.

25

201052

GEAR, motor pinion

1шт.
