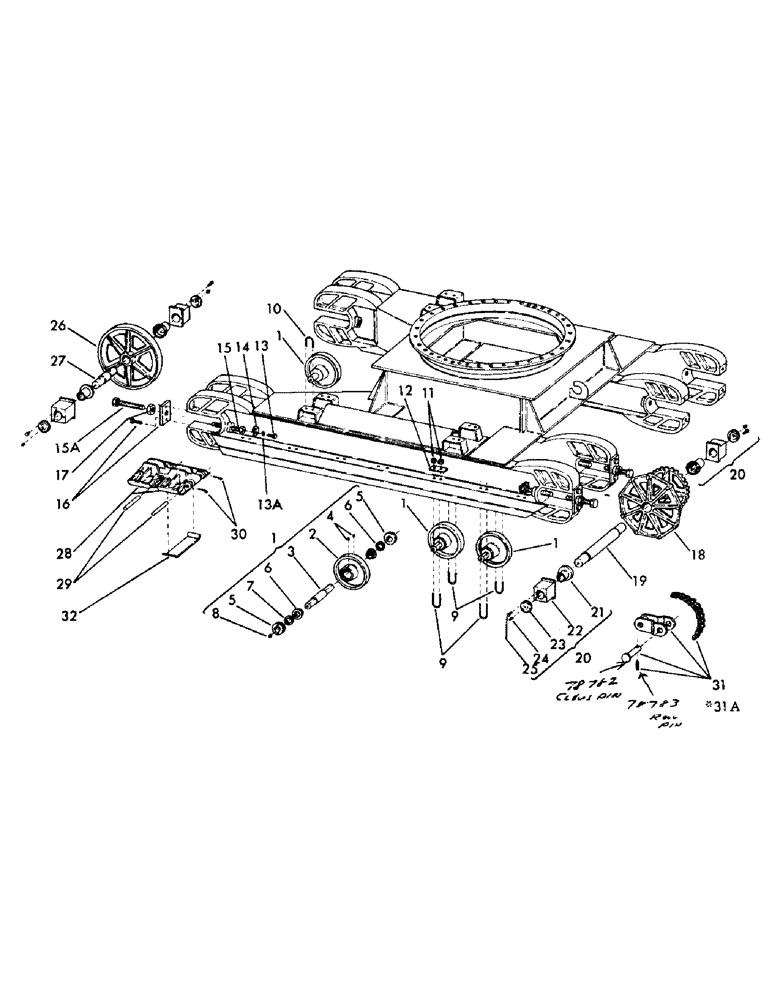

Запчасти Case 40EC (B01) - CRAWLER UNDERCARRIAGE - 7 ROLLER FOR 37 PAD TRACK, (WITHOUT LEVELER) (04) - UNDERCARRIAGE

1

208692

ROLLER, track

18шт.

2

78123

HUB, roller

1шт.

For one complete roller.

1шт.

3

78122

SHAFT, roller

1шт.

For one complete roller.

1шт.

4

201095

BELLEVILLE SPRING

SCREW, set (Metric thread)

2шт.

For one complete roller.

1шт.

5

78124

RING

1шт.

For one complete roller.

1шт.

6

78125

BEARING

2шт.

For one complete roller.

1шт.

7

78126

SEAL

2шт.

For one complete roller.

1шт.

8

78127

FITTING, grease

1шт.

For one complete roller.

1шт.

9

77986

"U" BOLT - long - 1/2" NC (Used only on bottom rollers) (1 per roller)

1шт.

10

63417

FRAME

"U" BOLT - short - 1/2" NC (1 per roller on bottom roller and 2 per roller on top rollers)

1шт.

11

4224

NUT - 1/2" NC (4 per roller)

1шт.

12

201098

LOCKPLATE (2 per roller)

1шт.

13

BER201082

SCREW

track tension (Metric thread) (8 per crawler)

1шт.

13a

69463

LOCKWASHER - external tooth type - 7/16" (8 per crawler)

1шт.

Change in listing.

1шт.

14

201081

SHIM

BLOCK, tension screw (Metric thread) (8 per crawler)

1шт.

15

201080

SPRING CUP

SCREW, bushing carrier lock (Metric thread) (8 per crawler)

1шт.

15a

201084

BLANK-OFF PLUG

SCREW, bushing carrier lock (Metric thread) (8 per crawler)

1шт.

16

201086

CASTING

PLATE, lock screw carrier (Metric thread) (8 per crawler)

1шт.

2544

SPARE PART

CPSW - 3/4" x 2" gr. 5 (2 per plate)

1шт.

17

201085

CENTRAL RAIL

NUT, lock (Metric thread) (8 per crawler)

1шт.

18

202335M1

WHEEL, sprocket drive - with mud reliefs (Includes Ref. 19) (2 per crawler)

1шт.

19

201070

AXLE, rear (2 per crawler)

1шт.

20

202334

PISTON ROD

CARRIER, axle (Consists of Refs. 21 thru 25) (2 per axle)

1шт.

21

201075

BUSHING, axle (1 per carrier)

1шт.

22

201074

BLOCK, carrier (1 per carrier)

1шт.

23

201076

RETAINER, grease (1 per carrier)

1шт.

24

201079

LEVER

FITTING, grease (2 per carrier)

1шт.

25

7498

SCREW, self-tapping - 1/4" x 3/4" NC (6 per carrier)

1шт.

26

NLS

NO LONGER SERVICED

WHEEL, front idler (Includes Ref. 27) (2 per crawler)

1шт.

27

201073

CHAIN

AXLE, front idler wheel (2 per crawler)

1шт.

28

53006

SPIDER

SHOES, track (20" wide) (37 per track)

1шт.

29

202793

SPARE PART

PIN, shoe (1 per shoe)

1шт.

30

65031M1

PIN, clinch - (Used with 202793 shoe pin) (1 per pin)

1шт.

31

78500

CHAIN PITCH, offset - (For 1 complete chain, order 62 of 78500 and 1 of Ref. 31A)

1шт.

31a

71493

CONNECTING LINK, offset - (For 1 complete chain, order 1 of 71943 and 62 of Ref. 31)

1шт.

Added listing.

1шт.

32

209503

PLATE, street (Order installation drawing #57132 in addition)

74шт.
