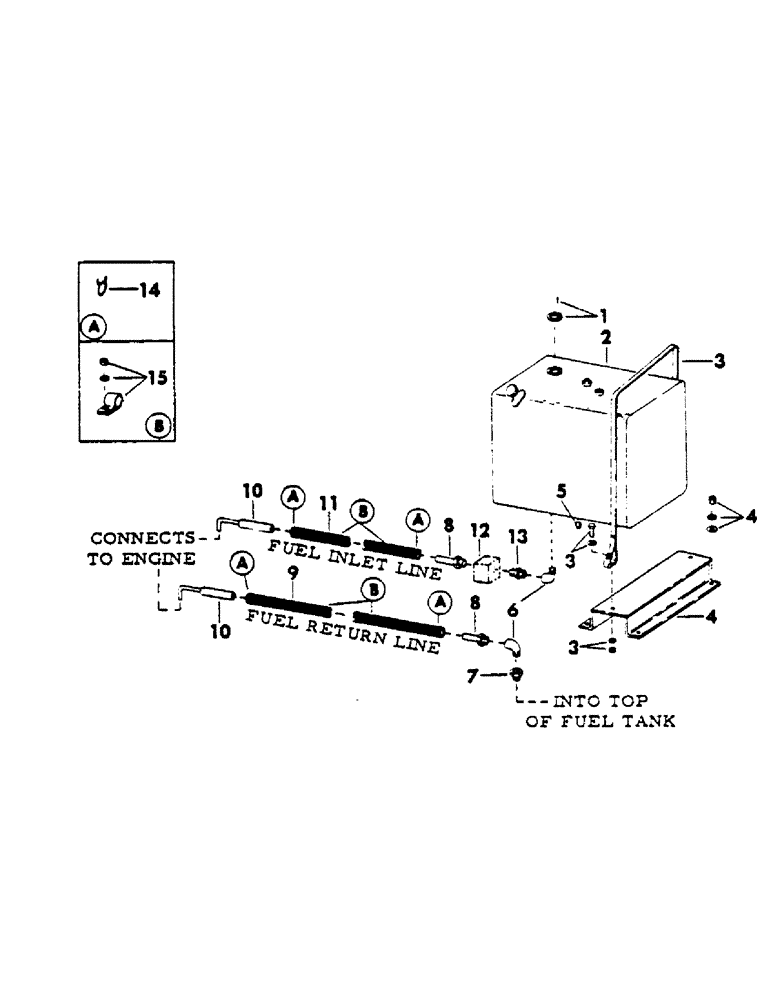

Запчасти Case 40EC (C15A) - FUEL TANK AND LINES, (USED ON UNITS WITH CASE 504BD DIESEL (02) - FUEL SYSTEM

1

S49745

GASKET

GASKET, fuel gauge sending unit

1шт.

S14530

SCREW, mahcine - #10 x 3/4" NF - (Mounts fuel gauge sending unit)

5шт.

2

S502212M1

TANK, fuel - (Includes fuel tank cap)

1шт.

S64019

FILLER CAP

CAP, fuel tank

1шт.

3

S81133

STRAP, mounting

2шт.

S2404

BOLT (MACHINE)

CPSW - 3/8" NC x 1-3/4" gr. 5

4шт.

S7385

INSTRUCTION

WASHER, flat - 3/8"

4шт.

S4397

WASHER

lock - 3/8"

4шт.

S4222

NUT

- 3/8" NC

4шт.

4

S215936

SUPPORT, fuel tank mounting

2шт.

S7385

INSTRUCTION

WASHER, flat - 3/8"

8шт.

S4397

WASHER

lock - 3/8"

8шт.

S4222

NUT

- 3/8" NC

8шт.

5

S15162

PLUG

pipe - 1/4" NPT

1шт.

6

S63648

ELBOW

90 degrees - 1/4"-18 NPT male x 1/4"-18 NPT female

2шт.

7

S17551

BUSHING

REDUCER - 3/8"-18 NPT male x 1/4"-18 female

1шт.

8

S63652

END ASSY.

END, hose

2шт.

9

S63654

HOSE

low pressure (Bulk) - 3/8" ID x 64" long

1шт.

10

S209418

LINE, fuel - (Connects to fitting engine)

2шт.

11

S63654

HOSE

low pressure (Bulk) - 3/8" ID x 80" long

1шт.

12

PUMP, hand primer - (Furnished with engine)

1шт.

13

S62655

NIPPLE, LUBE

ADAPTER, pipe - 1/4"-18 NPT male x 1/4"-18 NPT female

1шт.

14

S16604

CLAMP, hose wire

4шт.

15

S76696

CLAMP

hose

4шт.

S4397

WASHER

lock - 3/8"

4шт.

S4222

NUT

- 3/8" NC

4шт.
